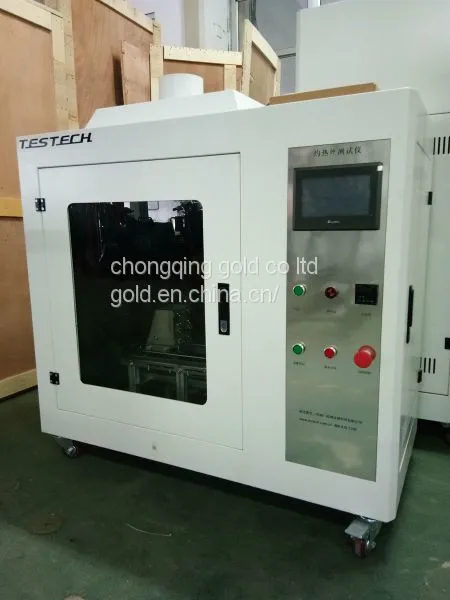

Help CenterGlow Wire Combustion Tester IEC 60695
Related Products
-
Vertical Cable VW-1 Flame Tester UL 1518/ISO 9772US$ 1 - 2MOQ: 1 Set -
Needle Flame Tester IEC 60695US$ 1 - 2MOQ: 1 Set
-
Cone Calorimeter Gbt16172 ASTM E1354 ISO 5660US$ 1 - 2MOQ: 1 Set
-
Aviation Parts Combustion Tester Ccar-25US$ 1 - 2MOQ: 1 Set
-
ISO 5658 Imo Spread Flame Apparatus Radiant Panel Flame Spread TesterUS$ 1 - 2MOQ: 1 Set
Introduction:
glowing filament tester is according to IEC60695-2-10: 2000, GB / T5169.10-2006, GB / T5169.13-2006 and GB4706.1 standard "glowing filament test method"to design and produce. requirements applicable to electrical and electronic products, household appliances and materials fire hazard testing, simulate burning elements or overload resistance and the like heat or ignition source thermal stress caused by a short time.
International standards:
1. GB5169
2. IEC60695-2
3. UL74A
4. DIN695
Technical Parameters:
1. Temperature range: 500 ~ 1000 ºC, digital display adjustable,
2. Temperature error: ± 10 ºC (500 ~ 750 ºC); ± 15 ºC (750 ~ 1000 ºC), temperature measuring instruments Accuracy ± 0.5 magnitude.
3. Temperature sensors: Φ0.5K type armored thermocouple, thermocouple imports.
4. Pressure applied to the specimen: 0.8N ~ 1.2N, and limit the indentation depth of at least 7mm.
5. Timing range: 0 to 99 minutes 99 seconds adjustable,
6. And having Shi burning time (Ta, generally according to standards set to 30), second holding burning time (Ti) and the flame goes out time (Te) of the timer;
7. Time error: ± 1s.
8. Ignited bedding layer: 10mm thick white pine wood, covered 12g / m2 ~ 30g / m2 standard tissue paper, from under the glow wire 200mm ± 5mm
9. Instrument operation is simple, stable and reliable temperature measurement system, and automatic temperature compensation.
10. Power supply: AC220V ± 10% / 50Hz. (Other power specifications can be customized.
Specification:
| Overall dimensions | W710xD365xH760 W1000 x D600 x H1260 |
| Power | AC220V + 10% / 50Hz |
| Weight | 30KG |
| Model | GD5169 |
