Aluminum Alloy Molding Whole Shapes Inflatable Rubber Wheel Robot Platform

Name: Aluminum Alloy Molding Whole Shapes Inflatable Rubber Wheel Robot Platform
Brand: HANGFA
SKU: 158766554
Availability: InStock

US$ 11000 - 12000 MOQ: 1 Set

Key Specifications

Brand Name:

HANGFA

Place of Origin:

China

Model Number:

Navigator C2

Chengdu Hangfa Hydraulic Engineering Co. Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

chongqing/shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name HANGFA

Place of Origin China

Model Number Navigator C2

Product Description

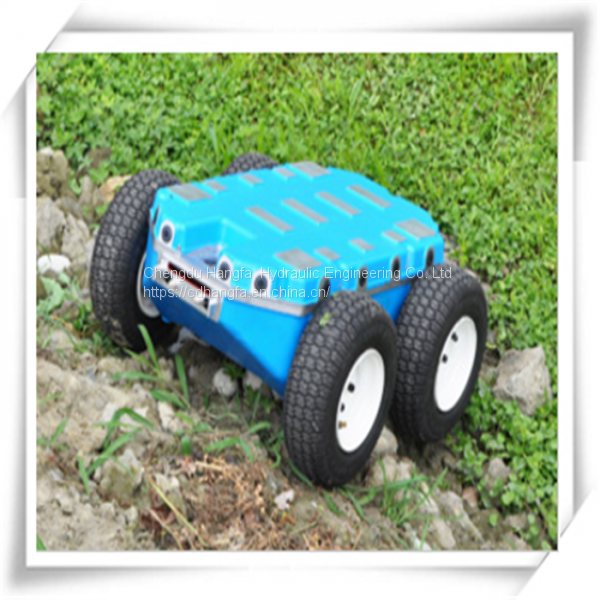

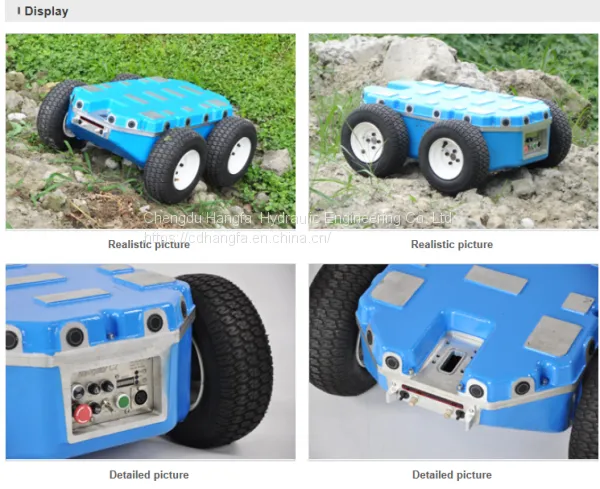

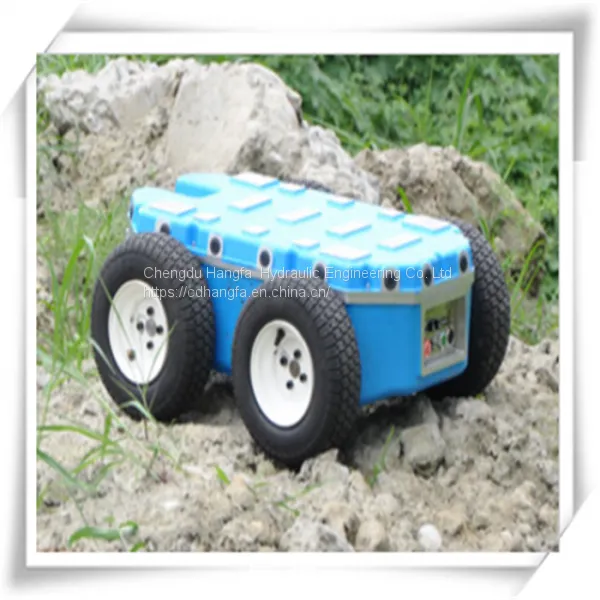

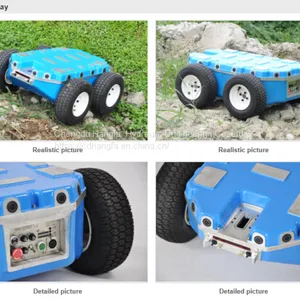

The Navigator series is the representative of high performance and high reliability products. Adopting industrial product design concept, it is designed to provide users with a complete, user-friendly robot system with high performance, high reliability, multiple interface, strict protection grade, long-term continuous work capacity. The Navigator C2 is the robot platform with two inflatable rubber driving wheels and two inflatable rubber differential wheels, equipped with a powerful drive system, which can adapt to all kinds of working environment and complete all kinds of sports efficiently. The chassis of this platform adopts overall casting molding process of aluminum alloy. Navigator C2 uses two high-power coreless motors as the driver, equipped with independent servo driver and the advanced motion controller, which integrates various motion control function, making both CAN bus and RS232 interface available. The development kit provides customers with a complete equipment communication protocol, and also provides examples and demo application source code based on STM32F407, which allows users quickly know how to operate Navigator C2.

Feature
500W super drive poweroverall aluminum casting & molding processhigh ground clearanceinflatable rubber wheelcoreless DC servo motorservo driveradvanced motion controllerdemo application source code based on STM32F407

body structure:	aluminum alloy molding whole shape	dimension:	698*598×279mm
driving wheel:	inflatable rubber wheel	diameter of driving wheel:	262mm
drive mode:	four wheel driving with two motors	suspend kind	no suspension
minimum space between robot to ground:	73mm	gross weight:	46kg
rated load capacity:	80kg	motor type:	coreless DC servo motor
rated power of the motor:	240W	motor encoder:	500 line/rev, A、 B phase output
quantity of motors:	2	motor driver:	servo driver, supporting both CAN bus and RS232 interface
maximum translational speed:	1.35m/s	maximum rotation speed:	160°/s
minimum turning radius:	0m	adaptive ground:	indoor,bituminous ground ,concrete ground with little depression
typical duration time:	>12h(load capacity 10KG,moving speed 1m/s,moving rate70%)	standby time:	>30h
support electricity output:	5V@5A / 12V@5A /battery voltage(35.2~46.2V)@>10A	The default specification of The power of insurance tube:	5×20/20A
bettery capacity:	40V/18.2Ah lithium-ion battery	battery fast change:	support
battery charger:	charger input voltage:AC100V~240V Charging current:5A Interface:direct plug-in
DEMO development board:	RHF407development board（CAN×2，RS232×2，TTL×1，RS485×1，SPI×1，I2C×1，USB×1，ADC×8，DAC×2，PWM×8，LED×2，Button×2，IndependenI/O×24， Reusable I/O×29，TF interface×1，RTC battery back seat，ReusableTFT LCD interface×1）
accessories:	battery charger
