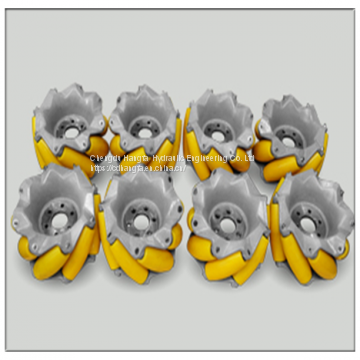

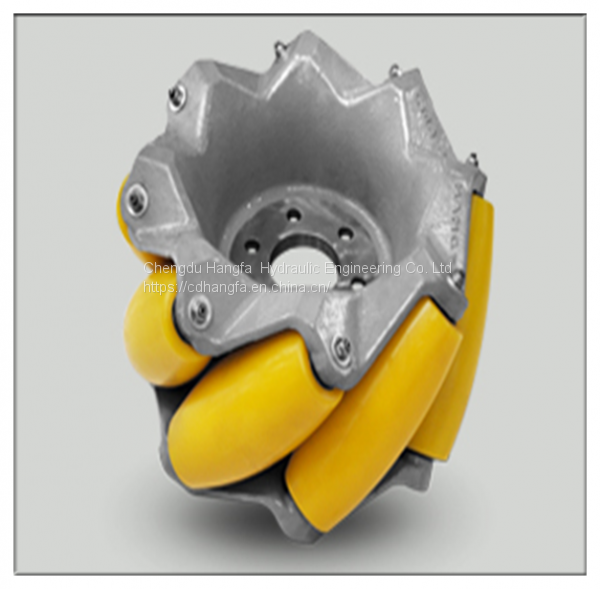

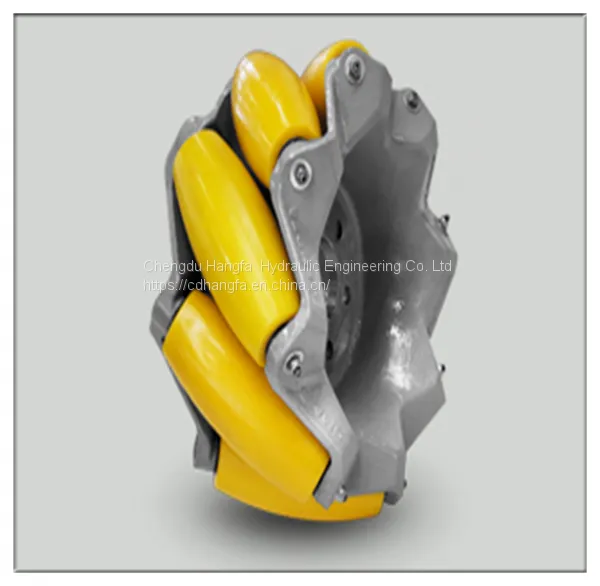

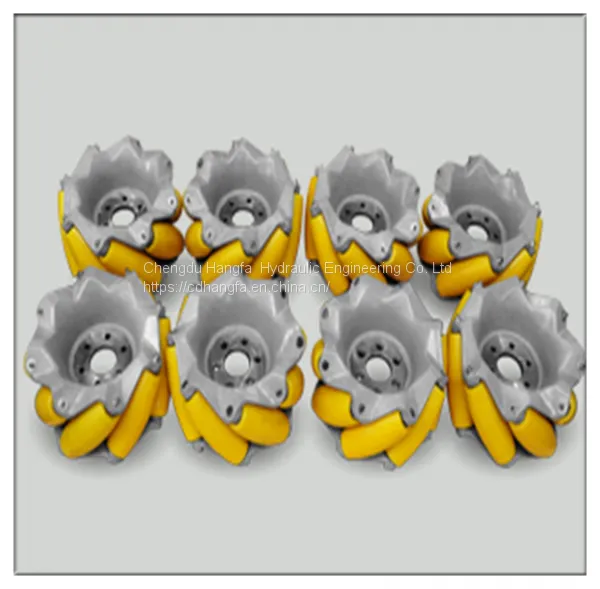

Heavy Duty Rolling Bearing CMA-31 Mecaum Wheel

Name: Heavy Duty Rolling Bearing CMA-31 Mecaum Wheel
Brand: HANGFA
SKU: 158767174
Availability: InStock

US$ 1200 - 1500 MOQ: 4 Pieces

Key Specifications

Brand Name:

HANGFA

Place of Origin:

China

Model Number:

CMA-31

Chengdu Hangfa Hydraulic Engineering Co. Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

chongqing/shenzhen

Delivery Detail:

3 days

Brand Name HANGFA

Place of Origin China

Model Number CMA-31

Type Wheel Hub Bearing

Size diameter:310 mm

OE NO. hangfa-01

Car Make Wheel Material Polyurethane

Product Description
CMA series omni wheel provide 3100KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.

Feature
integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-3100KGindustrial-grade quality

Diameter:	310mm	Wide:	167mm
Wheels:	8	Bearing Type:	Heavy Duty Rolling Bearing
Hub Material:	Steel	Weight:	21Kg
Screw Pitch Circle Diameter:	95mm	Flange Screw:	6-M12*1.5 Hub Bolt
Flange Plate Thinckness:	12mm	Flange Plate Diameter:	126mm
Flange Cavity Inner diameter:	145mm	Typical Middle Hole Size:	60mm
Hub Surface Treatment:	High-Temperature Painting	Load:	650Kg
