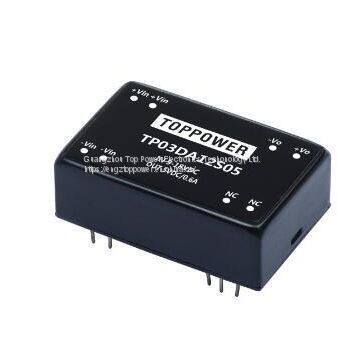

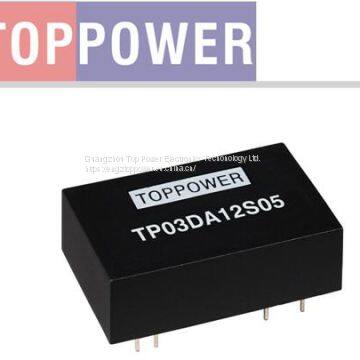

The rated output power of TP03DA converters is 3W,the outline dimensionsis "31.75*20.32*11.2", 2:1 and 4:1 wide input voltage range,thevoltage range is 4.9V-9V,9V-18V,18V-36V,36V-72V,9V-36V and 18V-72VDC.
The accuracy of the converter can reach ±1% ,It can be widely used intelecommunications, railway Transportation, instrument and etc.
TOPPOWER can produce:
0.1W-40W DC-DC converters,3W-30W AC-DC converters,(SIP/DIP/SMD)
25W-1200W Enclosed /Open frame type AC-DC Switching Power supply,
15-480W AC-DC DIN RAIL Power Supply.
| Brand: | TOPPOWER |
| size: | 31.75*20.32*11.2 |
| PACKAGING: | DIP |
| power: | 3w |
| Price: | 6.00$/Pieces |
| Min.Order: | 10 Pieces |
| Supply Amount: |
500 Pieces |
| Delivery: | Shipment within 8 days since the date of payment |
| Address: | China |
DC/DC Converters
Part Number |
Input Vlotage |
Output |
||
voltage（VDC) |
Voltage（VDC) |
|||
Rated |
Range values |
|||
TP03DA05S05 |
5(2:1) |
4.5-9 |
5 |
|
TP03DA05D05 |
5(2:1) |
4.5-9 |
±5 |
|
TP03DA12S03 |
12(2:1) |
9-18 |
3.3 |
|
TP03DA12S05 |
12(2:1) |
9-18 |
5 |
|
TP03DA12S12 |
12(2:1) |
9-18 |
12 |
|
TP03DA12S15 |
12(2:1) |
9-18 |
15 |
|
TP03DA12D05 |
12(2:1) |
9-18 |
±5 |
|
TP03DA12D12 |
12(2:1) |
9-18 |
±12 |
|
TP03DA12D15 |
12(2:1) |
9-18 |
±15 |
|
TP03DA24S03 |
24(2:1) |
18-36 |
3.3 |
|
TP03DA24S05 |
24(2:1) |
18-36 |
5 |
|
TP03DA24S12 |
24(2:1) |
18-36 |
12 |
|
TP03DA24S15 |
24(2:1) |
18-36 |
15 |
|
TP03DA24D05 |
24(2:1) |
18-36 |
±5 |
|
TP03DA24D12 |
24(2:1) |
18-36 |
±12 |
|
TP03DA24D15 |
24(2:1) |
18-36 |
±15 |
|
TP03DA48S03 |
48(2:1) |
36-72 |
3.3 |
|
TP03DA48S05 |
48(2:1) |
36-72 |
5 |
|
TP03DA48S12 |
48(2:1) |
36-72 |
12 |
|
TP03DA48S15 |
48(2:1) |
36-72 |
15 |
|
TP03DA48D05 |
48(2:1) |
36-72 |
±5 |
|
TP03DA48D12 |
48(2:1) |
36-72 |
±12 |
|
TP03DA48D15 |
48(2:1) |
36-72 |
±15 |
|
TP03DA24S05W |
24(4:1) |
9-36 |
5 |
|
TP03DA24S12W |
24(4:1) |
9-36 |
12 |
|
TP03DA24S15W |
24(4:1) |
9-36 |
15 |
|
TP03DA24D05W |
24(4:1) |
9-36 |
±5 |
|
TP03DA24D12W |
24(4:1) |
9-36 |
±12 |
|
TP03DA24D15W |
24(4:1) |
9-36 |
±15 |
|
TP03DA48S05W |
48(4:1) |
18-72 |
5 |
|
TP03DA48S12W |
48(4:1) |
18-72 |
12 |
|
TP03DA48S15W |
48(4:1) |
18-72 |
15 |
|
TP03DA48D05W |
48(4:1) |
18-72 |
±5 |
|
TP03DA48D12W |
48(4:1) |
18-72 |
±12 |
|
TP03DA48D15W |
48(4:1) |
18-72 |
±15 |
|
