CNC Wood Turning Lathe Price
from
Jinan EagleTec CNC Machinery Co.,Ltd.
CNC Wood Turning Lathe Price Technical Parameter
Brand | EagleTec
Model Number | EA-TL1530ST3
Construction | one rotary, two cutters, adjustable gymbal & spindle
Spindle | 3.5kw, air cooled, ER25 collet, 0 ~ 18000 rpm
Turning Motor | servo motor (high version), three-phase asynchronous motor (standard version)
Rotary Feeding Range | 0~3000 rpm
Max. Simultaneous Axis Quantity | Three
Machining Capacity | turn-milling, broaching, turn-broaching (high & standard version); embossment carving on column (high version only)
Lathe Controller | Richauto DSP A132 (3 axis controller), read DXF file directly
Communication Code | DXF, G code
Axis Motion Motor | Stepper
Driver | YAKO YKA2811MA – 3PCS
Working Diameter Range | 20mm ~ 300mm
Working Length Range | 100 ~ 1500mm
Air Pressure Requirement | 0.6~0.8 Mpa
Inverter | Fuling brand - 2PCS
Power Supply Requirement | AC380V, 3Ph 4 Wires
Electric Frequency Requirement | 50Hz
Lathe Weight | 1500KGS
Packing Dimension | 3150x1220x1680mm (6.46CBM)
Automatic Wood Lathe Applicable Industry
It is applied to produce wooden stair balustrade, handrail, stair railing, newel post, roman pillars, bed rails, column and more.
Features
There are two versions on configuration of this automated wood lathe, and the only difference between the two is the main turning motor. High configuration is using servo motor; while standard version is using three-phase asynchronous motor. With servo motor, you can do turn-milling, broaching, turn-broaching, and embossment carving on column materials; with three-phase asynchronous motor, you just can do turn-milling, broaching and turn-broaching, can not do embossment carving on column. Please see photo below for better understand.

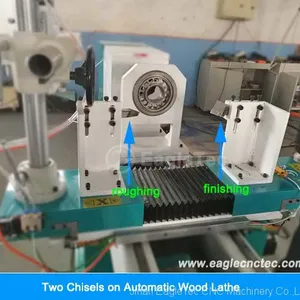

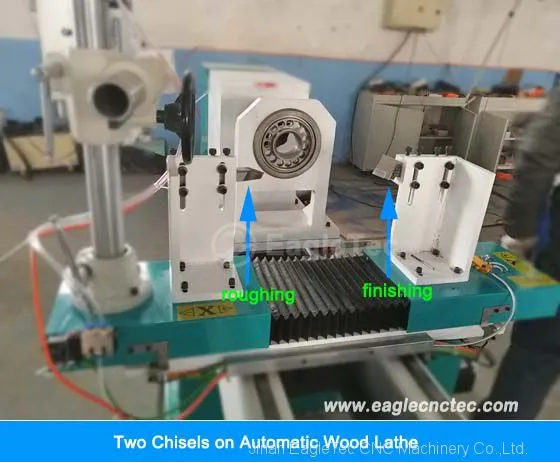

Design of two wood lathe chisels, one for rouging, the other works as finishing tool.
The automated wood lathe body is fully casted by iron to meet the high rigidity performance which is necessary for wood turning jobs.
Take Richauto DSP A132 as the lathe cnc controller, which can read and run DXF file directly and no need to do any file format transfer, user-friendly. This means that, you can take your file to the lathe and machining as soon as it is finished it in your AutoCAD software.
To get the latest cnc wood turning lathe price, please inquire now.
