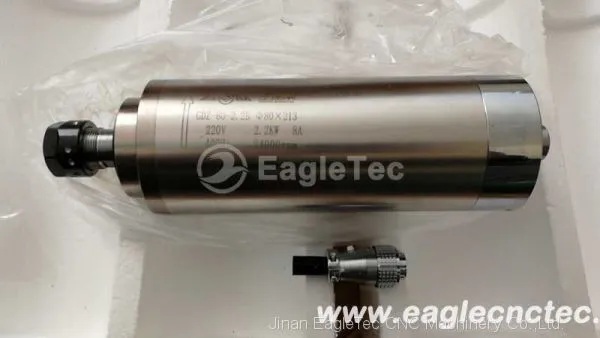

Motorized Spindle Model GDZ-80-2.2 220V 2.2KW 8A 24000RPM 400Hz
US$ 150 - 2000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Chinese Brand
Place of Origin:
China
Model Number:
GDZ-80-2.2 220V 2.2KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Jinan
Delivery Detail:
3 days
Related Products
-
Water Cooled Spindle Motor HQD 2.2kw 3.2kw 4.5kw 5.5kw for CNC RouterUS$ 200 - 2000MOQ: 1 Piece -
High Frequency Spindle Air Cooled GDF46-18Z/3.5 GDF60-18Z/4.5 GDF60-18Z/6.0US$ 200 - 2000MOQ: 1 Piece
-
Spindle Drive Delta VFD055E43A VFD037E43A VFD037E23A VFD055E43AUS$ 200 - 2000MOQ: 1 Piece
-
2.2KW Water Cooled Spindle CNC Router SpindleUS$ 150 - 200MOQ: 1 Piece
-
DSP Control CNC Router Motion Controller Systems Richauto DSPUS$ 290 - 390MOQ: 1 Piece
Brand Name
Chinese Brand
Place of Origin
China
Model Number
GDZ-80-2.2 220V 2.2KW
Full Models of Motorized Spindle for Sale
From /products/146-2.2kw-water-cooled-spindle.html
2.2kw motorized spindle is widely used on cnc router machines. Different with air cooled spindle, motorized spindle is cooling by water flow. So this type spindle needs to connect a water cycle system.
Besides 2.2kw, other power like 3.0kw, 4.5kw and 5.5kw is available.
Spindle Brands: All Chinese brand includes ChangSheng and HQD.
Technical Parameter of 2.2KW Motorized spindle
Model. GDZ-80-2.2
Voltage | 220V
Power | 2.2KW
RPM | 24,000
Currency | 7.5A
Frequency | 400Hz
Spindle Diameter | 80mm
Collet Size | ER20
Cooling Mode | Water Cooled
Bearing | 7005C P4*2(front end); 7005C P4*1(rear end)
