CNC Wood Turning Lathe Machine With One Axis Two Blades and Gymbals Spindle

CNC Wood Turning Lathe for Baluster with One Axis Two Blades and Gymbals Spindle

from

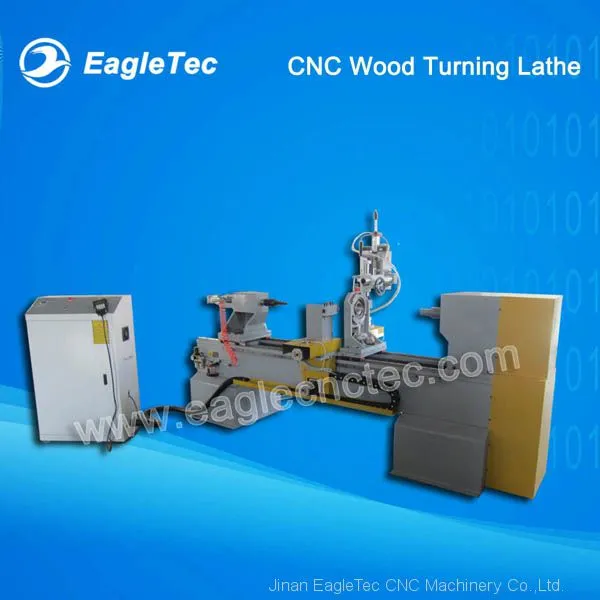

This product is cnc wood turning lathe machine, with one axis, two blades, adjustable gymbals and spindle. It has function of turning, broaching and engraving, which is a fully function machine. Working size is 300mm (Dia) by 1500mm (Length). The two blades design increases the turn machining speed by one time. With gymbalss and spindle configuration, the machine can complete jobs of broaching and engraving. CNC wood turning lathe is always applied to industries like baluster, pillar, banister, column, table legs, chair legs, bed rails, baseball bat, nunchakus and more.

One Axis Two Blades CNC Wood Turning Lathe Machine with Gymbals Spindle Features

1. The cnc wood turning lathe body is fully casting iron to ensure the rigidity, stability and accuracy of the lathe.

2. Adopting User-friendly Richauto DSP controller which is specially designed for cnc wood turning lathe machines. Lathe is operated independently, no need via a computer.

3. Adopt Taiwan TBI ball screw and Taiwan HIWIN square guide rail with high transmitting precision and longevity.

4. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
5. Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet panel.
6. One time tool setting to finish the whole work piece.

CNC Wood Turning Lathe Parameters

Model No. | EA-TL1530ST (One Axis Two Blades)

Number of Axis | One

Number of Blades for Each Axis | Two

Broaching Spindle | with spindle and adjustable gymbals

Working Diameter Range | 20mm – 300mm

Working Length Range | 100mm – 1500mm

Feeding Speed Range | 0 – 3000 rpm

Air Pressure Requirement | 0.6 – 0.8 Mpa

Turning Motor | 4.0KW three - phase asynchronous motor

Spindle Motor | 3.5KW

Power Supply Requirement | AC380V, 3Ph 4 Wires

Electric Frequency Requirement | 50Hz

Lathe Weight | 1500KGS

Packing Dimension | 3150x1220x1680mm (6.46CBM)

Machining Capacity | turn-milling, broaching, turn-broaching, engraving
