5.5kw 24000RPM stone working milling spindle for sale
One-stop shopping cnc router parts replacement supplier
From /products/245-stone-milling spindle.html
This milling spindle is specially built for for stone, aluminum and copper machining purpose. If you are working on those materials, a stone cnc router with stone working milling spindle is the best solution.
Stone and Metal Engraving Milling spindle Technical Parameters
Model number: WH125 / GDK125-18-24Z/5.5 / GDZ-125-5.5
Spindle diameter: 125mm
Rated working voltage: 380V or 220V
Collet size: ER25
Rated power: 5.5kw
RPM range: 0 ~ 24000
Frequency: 400Hz
Electric current: 15A
Acceptable cutter shank: 3.175mm ~ 16mm
Cooling mode: water or liquid
Maintenance: water need to be fresh regularly during machining process
Net weight: 24KGS
Application: for cnc granite router using only
Complete set of 5.5kw ER25 milling spindle contains:
Spindle motor 1 PC
Spanner 1 PC
Wiring connector 1 PC
Collet 1 PC

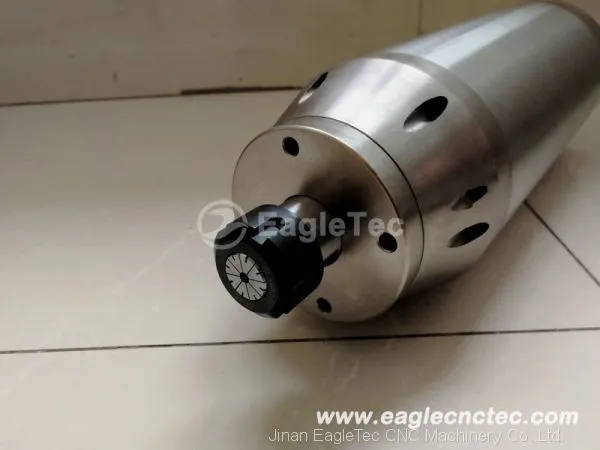

Image alt- full set 5.5kw er25 stone metal working milling spindle
To check the latest spindle price, please inquire now.
