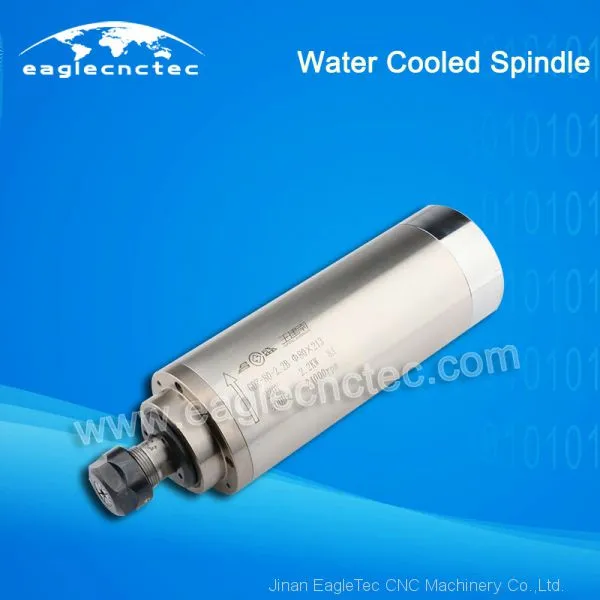

2.2kw water cooled spindle is widely used on cnc router machines. Different with air cooled spindle, water cooled spindle is cooling by water flow. So this type spindle needs to connect a water cycle system. Water cooling way takes many advantages for spindle, first water cooled spindle have very small noise compared with air cooled; second water cooled spindle can work continuously for more than 10 hours if we keep water temperature in proper status. Because this two points, 2.2kw water cooled spindle is ideal for complicated relief carving jobs which takes long time to finish. Accordingly, 2.2kw spindle water cooled is ideal for multi spindle cnc router and small size machine like 6090 cnc router.
To learn more features of water cooled spindle, please click here.
Besides 2.2kw, other power like 3.0kw, 4.5kw and 5.5kw is available.
Spindle Brands: All Chinese brand includes ChangSheng and HQD.
Looking for air cooled spindle? Please click here
Technical Parameter of 2.2KW Water Cooled Spindle
Model. GDZ-80-2.2
Voltage | 220V
Power | 2.2KW
RPM | 24,000
Currency | 7.5A
Frequency | 400Hz
Spindle Diameter | 80mm
Collet Size | ER20
Cooling Mode | Water Cooled
Bearing | 7005C P4*2(front end); 7005C P4*1(rear end)
