SUS304 SUS316L Stainless steel wire wrapped screen with plain/thread connection end:
Oaiss Oil Tools Co., LTD, which is the munfacturer of the
water well screen, which also could used as oil well screen, wedge wire screen, water strainer, johnson screen, v-shaped screen, vee wedge wrapped screen, wire wrapped screen, wire point pipe,etc.
| Specifications of Johnson wire point pipe/ wedge wire well screen | |
| Slot size (mm) | 0.10, 0.15, 0.2, 0.25, 0.30 - 3mm |
| Lengths | 6Mts. & 3Mts, we suggest 5.8m(adapt to the container) |
| Grades | Different grades suitable for tube well depths up to 300ft, 600ft, 900ft , and 1500ft. |
| Material | Low Carbon Galvanized Steel (LCG) and Stainless Steel (SUS304, SUS304L, SUS316, SUS316L) or can be made according to the customers requirements |
| Diameter | ranging from 15 to 275mm |
| End Connection | Plain beveled ends for butt welding or threaded.(We can customize) |
| Open area | up to 60% |

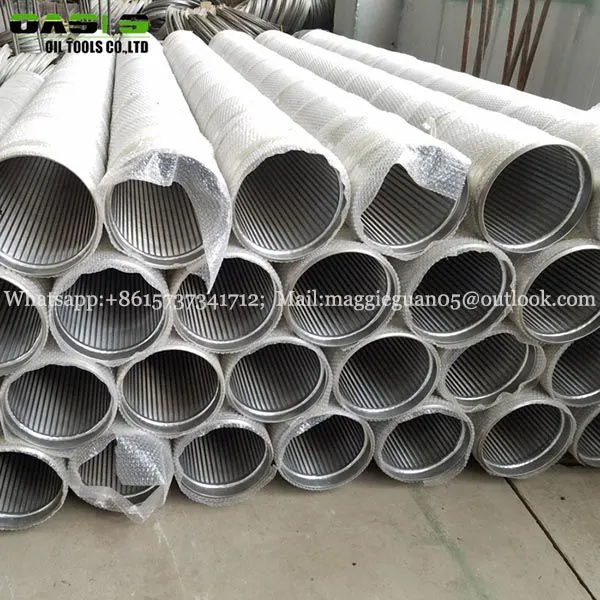

Photo shows of Johnosn wedge wire well screen pipe:
johnson filter pipe screen V shaped screen tube:

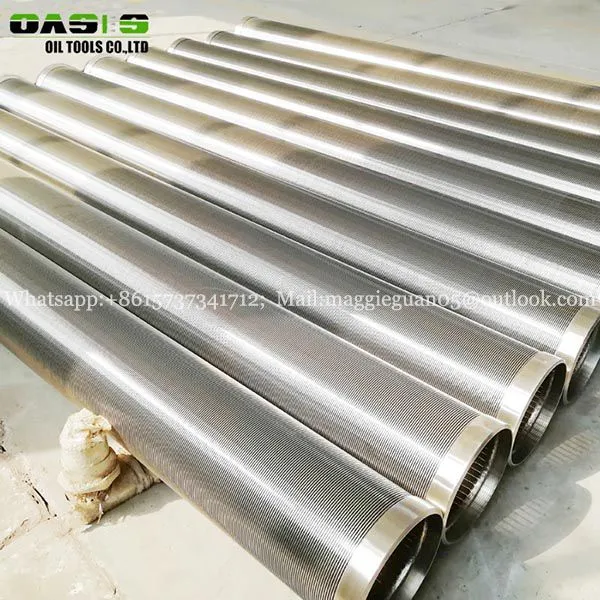

Water well screen pipe with weld connection END:
Oasis supply Johnson strainer well screen:
The specifications table of screen jacket/ sand contral screen pipe:
|
Size (inch) |
Out Diameter (mm) |
Slot (inch) |
Length (m) |
Collapse (psi) |
Tensile Weight (ton) |
Wire Size (mm) |
Rods (mm) |
| 4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8mm/32 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/50 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/50 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8mm/50 |
6 5/8'' water well screen Johnson strainer screen pipe with plain end connection:
In bulk or with pallet, the detail packing with plastic bag, bubble wrapped, iron cap protect the both ends, the wood strips protect the pipe filter body, wood strips protect the pipe filter body,
Any other package required or as customer's requirement.
Project of water well screen Johnson strainer well screen pipe with plain/thread/ welded end connection:
Oasis Oil Tools Co., Ltd - UN supplier list :
Advanced technology, Strict inspection process:
Oasis Oil Tools co.,ltd has 20 years experience in Water Filter Mesh Screens/Water Well Sand Filters, we strive for technical innovations to improve quality of products.Our products not only have the features of trustworthy quality, safety and energy save but also beautiful appearance and low maintanemance.
Small profits but quick turnover:
Our Production will offer you a relatively and reasonable lower price, which means our customer can get more profite with a cheap price.
Premium and comprehensive sale system:
With a comprehensive sale system including before sales service, in-sale service and after sale service, we have won a good reputation at home and abroad. Also it is a important reason why so many customer to choose us.
Certification:
We can meet your particular needs and design for you depends on you require type and size of wire wrapped screen. The water from the inside out, or from the outside.
Please confirm the following information to get quotation:
|
1. What's the outside diameter of the screens? 2. What's the slot size? 3. What's the material and steel grade? Other client Usually choose SS304, SS304L, SS316, SS316L. 4. Do you have any wire and rod size informations, if no, well depth or collapse stength is ok, we can design the screens for you. 5. How about the unit length, we usually suggest the 5.8meter/piece . 6. What's the connection way? 7. How about the total quantity? |
