Help Center6 5/8inch(168mm) Water Well Screen/wedge Wire Screen/slotted V Type Wire Point Pipe
Related Products
-
TP316L Grade Johnson Stainless Steel Wire Wrapped Screen Type Pipe for Sand ControlUS$ 16.5 - 65.5MOQ: 10 Pieces -
Professional Production Screen Pipe, Pipe Screen Mesh Cone Shaped, Drill Pipe ScreenUS$ 16.5 - 65.5MOQ: 10 Pieces
-
AISI304 Well Filter Screen Casing Pipe/Johnson Wire Wrapped ScreenUS$ 10.5 - 158.6MOQ: 1 Piece
-
Johnson Strainer Screen V Wire Wrapped Screen Pipe for Well DrillingUS$ 10.5 - 158.6MOQ: 1 Piece
-
TP304L Well Filter Water Screen Tube V Wire Wrapped Screen Pipe China ManufacturerUS$ 10.5 - 158.6MOQ: 1 Piece
Description of 6 5/8inch(168mm) water well screen/wedge wire screen/slotted V type wire point pipe:
The screens have a structure and high open area, as well as accurate slot dimension. At the same time, screen have heat-resistiong, anti corrosive, good machine capability and so on characteristics. Screen tube with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level's down, thus to save energy consumption.The screens are widely used in oil and gas wells, as well as in chemical, mining, papermaking, environmental protection, metallurgy, food, and water purification industries, and the screen plate used in the coal industry.
| Specifications of Johnson wire point pipe/ water well screen | |
| Slot size (mm) | 0.10, 0.15, 0.2, 0.25, 0.30 - 3mm |
| Lengths | 6Mts. & 3Mts, we suggest 5.8m(adapt to the container) |
| Grades | Different grades suitable for tube well depths up to 300ft, 600ft, 900ft , and 1500ft. |
| Material | Low Carbon Galvanized Steel (LCG) and Stainless Steel (SUS304, SUS304L, SUS316, SUS316L) or can be made according to the customers requirements |
| Diameter | ranging from 15 to 275mm |
| End Connection | Plain beveled ends for butt welding or threaded.(We can customize) |
| Open area | up to 60% |

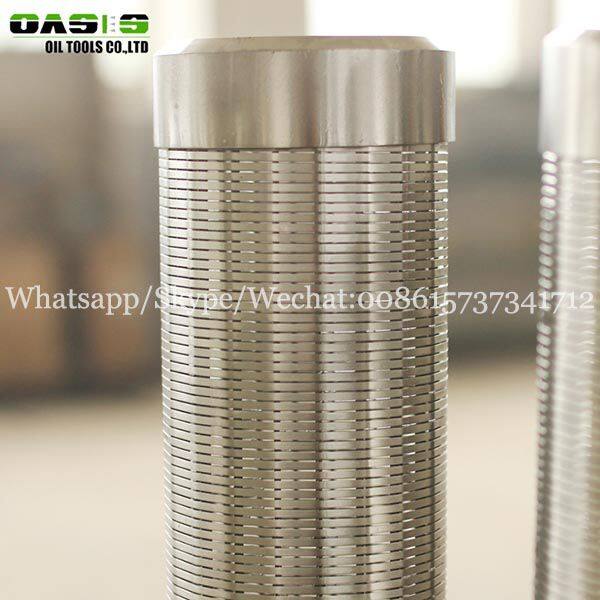

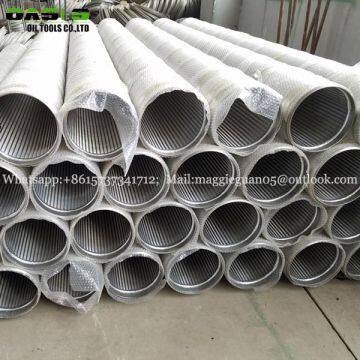

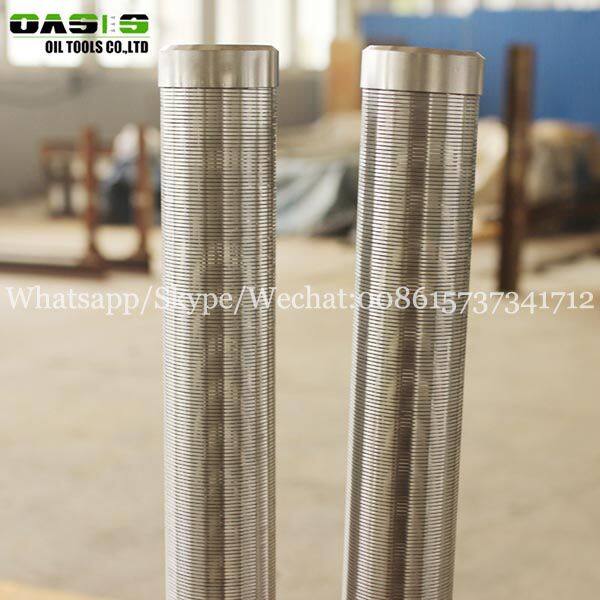

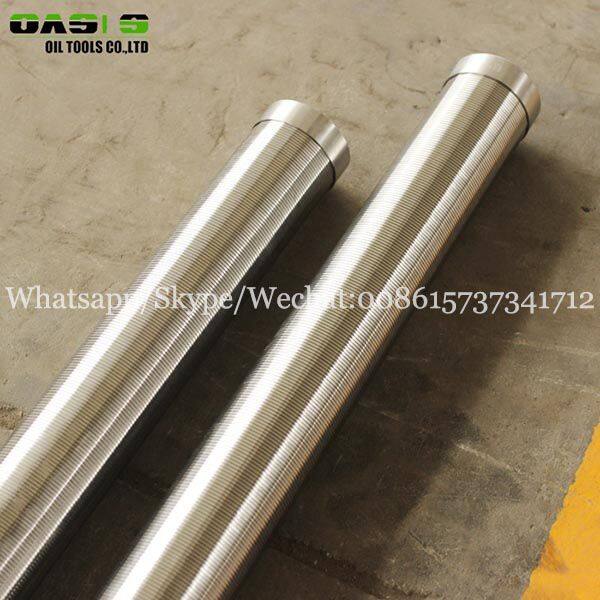

Images of wire wrapped screen:
Advantages of wire point pipe for water well drillingWe believe that we have a number of competitive strengths that will allow us to benefit from an increasing demand for exploration and production services. These competitive strengths include
♦Ability to deliver technical expertise within an integranted business model.
♦Significant cost advantage.
♦Domestic information advantage.
♦Strong customer relationship.
♦Experienced team of senior managerment and engineers.
Specifications of water well screen:
1.Name: stainless steel Slot Continuous screen for sand control (customized)
2.Material details: stainless steel 304 316L, carbon steel,
3.Out diameter: 15mm - 275mm, customized
4.Profile wire width: 1.5mm to 8mm;
5.Support rib width: 2.1mm to 6mm.
4.Hole Shape: Vee shaped
5.Slot size: 0.02mm~15mm, Customized
6.Length: up to 6m, Customized
7.Color: Original Matel color
8.Application: water well screen, filter, mining, coal, petroleum, fertilizer, grain
9.Wire shape: V type wedge wire
nnection type: weld/thread/flange/plain
11.Surface treatment: galvanzied or coating
12.End Connection: Plain, Beveled or Thread Coupling
Our company: Oasis Oil Tools Co., Ltd.With the excellent quality, advanced services and competitive prices, Oasis Oil Tools Co., Ltd has won numerous customers' trust and support at home and abroad, established a long term cooperation relationship with global manufacturers.Contact usPls do not hesitate to contact us.We can provide you with 24 hour online service and await your calls and enquiry respectfully!
