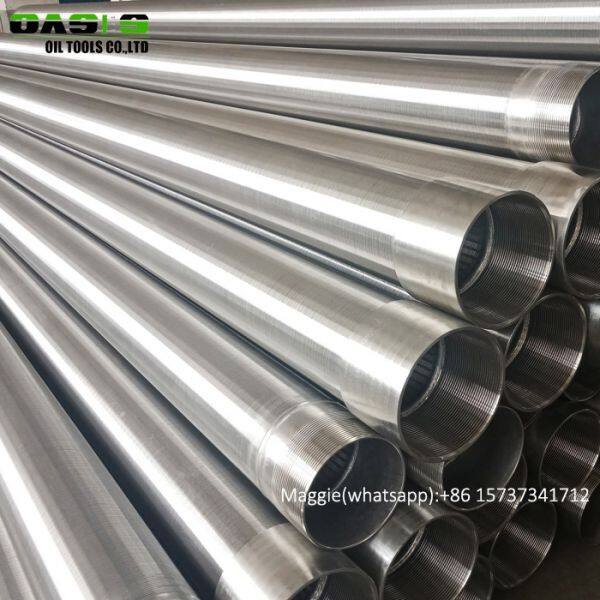

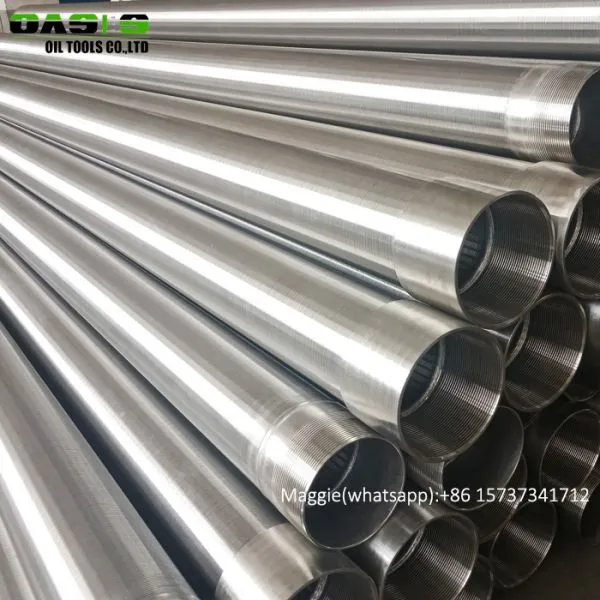

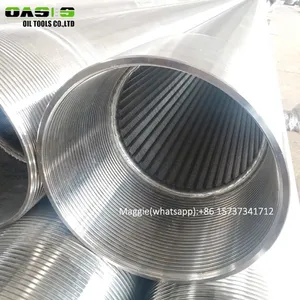

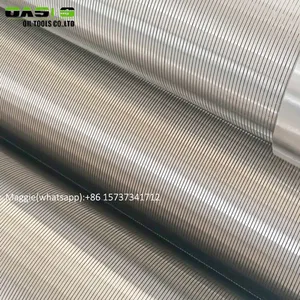

Help Center8inch Wedge Wire Screen Pipe Water Filter Screen With Thread Coupling
Related Products
-
Wedge Wire Stainless Steel Screen 8inch Pipe Size Heavy Duty Screen With BTC Thread CouplingUS$ 25 - 75MOQ: 10 Meters -
323mm OD Stainless Steel V Type Johnson Type Wedge Wire Screen Filters With Each End Chamfer for WeldingUS$ 25 - 75MOQ: 10 Meters
-
Oasis Well Screen/ Vee Wire Type Well Screen/ Wedge Wire Screen Filter/ Stainless Steel Strainer Sand Well ScreenUS$ 25 - 75MOQ: 10 Meters
-
Sewage Treatment Waste Water Well Screens Vee Wedge Wire Slotted ScreenUS$ 15.6 - 85.8MOQ: 10 Meters
-
Stainless Steel Round Tube V Slot Filter Mesh Well Screens PipesUS$ 12.5 - 65.6MOQ: 10 Meters
1. Material: 304 302 304L 316 316L
2.diameter:33-600mm
3.minimum slot:0.05mm
V-shape Water Well Screen/ stainless steel well screens plate for oil filter is used for oil and water/oil exploiting. They consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so V-shape Water Well Screen has sturdy constriction and good mechanical property.
The V-shape section plane can avoid blockage, and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so V-shape Water Well Screen can filter sand better.
Material: stainless steel and carbon steel
Diameter: 1-30inch
Minimum slot: 0.01mm
Wall thickness: 4mm or 6mm
Supply capacity: 6800meters per month
High quality
Low price
Fast delivery
First class technology
Product Description
Wire wrap tube carbon steel stainless steel 304 316 water filter screen pipe:
Johnson screens consist of V-shape profile, longitudinal support rods, wrapped with the wire that which has high strength and minimum weight.
Johnson screens/ 10 slot well screen / Vee-wire specifications:
Wire width: 0.020 inch. (0.508mm)---0.195inch (4.953mm)
Wire height: 0.040inch (1.016mm) ----0.363inch (9.220mm)
Other wire shapes of wire wrap tube:
Triangular wire
Grizzly wire
Bridge wire
Quick details of water well screens fiter mesh pipes for water Purification:
Wedge wire |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
Support rod |
Width(mm): 2.30 3.00 3.30 3.70 |
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material |
Galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length |
up to 6m |
Diameter |
from 25mm to 1200mm. |
End connection |
Plain beveled ends, flanged or threaded couplings |
Certification |
ISO9001 |
Wire wrapped water well johnson type strainer screens pipes:

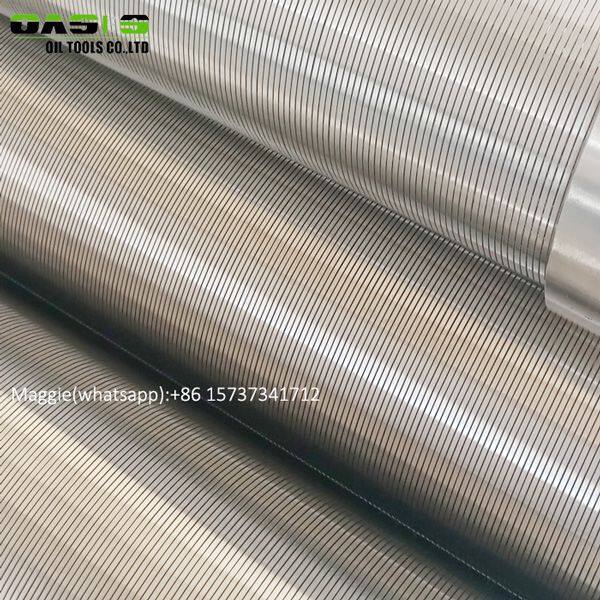

Wire wrapped water well strainer screeens was made by winding cold-rolled wedge wire, approximately triangular in cross section, around a circular array of the longitudinal rod.

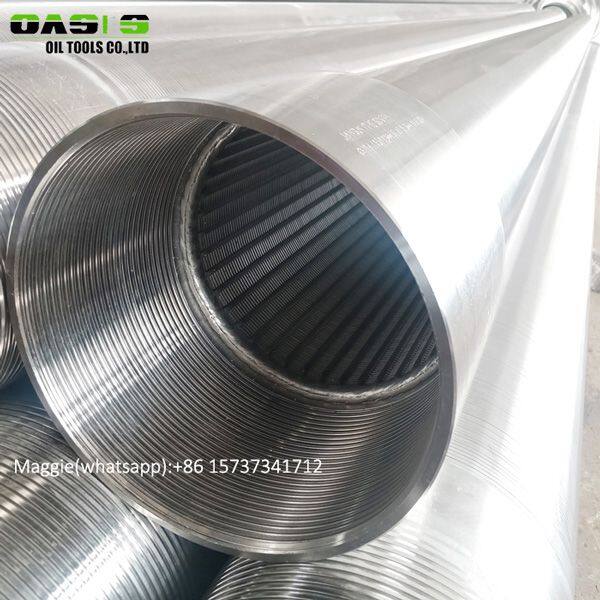

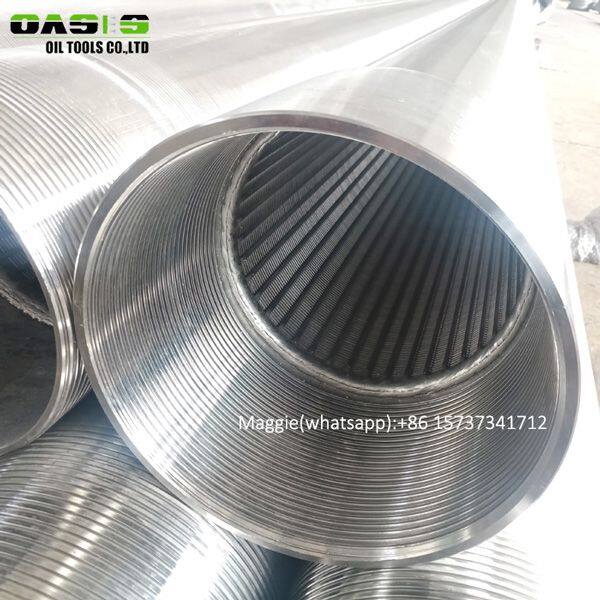

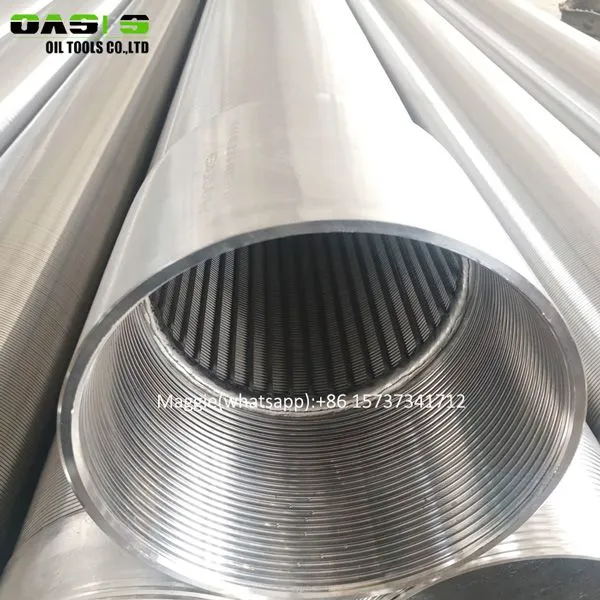

The wedge wire is attached to rods by welded, producing rigid one_piece units having high strength characteristics at minimum weights. Pic shows of the flat welded Johnson type screens/the water well screens/wire wraped screens are as follows:
Features of water well screens/wedge wire screen pipes:
1.better filter function
2.Prolong life of water welll
3.Long service life
4.High pressure_resistant
5.The size customized
Size details of Johnson well casing screen
Inspection of water well sand filter pipe:
Testing and inspection details of Wire Wrapped Water Well Strainer Screen before shipment
1. All Dimensions of flat welded Johnson type screens/water well screens/wedge wire screens will be checked by our quality inspector, and they also can be inspected by Third Party Inspections or representative appointed by buyer.
2. Wall thickness of coupling material is inspected by Ultrasonic inspection method, and they also be made the Ultrasonic flaw detection
3. Do Destructive Collapse Test and collapse Strength Test before shipment.
4. If required, the screens will be made pickling and passivation.
5. The whole manufacturing process can be monitored by Third Party Inspection Company (BV, SGS, Intertek )and representative appointed by buyer.
6. The screens will be arranged the Pre-shipment Inspection if required
This pic shows the inspection:
Other product:
1.Stainless steel Gravel prepacked well screen for well:
Alibaba best supplier 6" Johnson screens best water well casing screen for deep well:

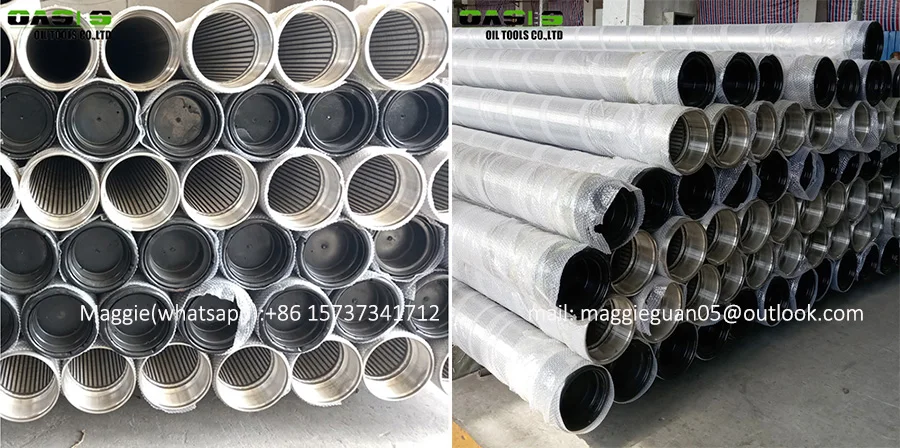

Package details of Wedge Wire Well screens:1: The water well screen was wraped by plastic/bubble bag.
2: Then the Johnson screens fixed by wooden strip.
3: Ship package is container
OASIS OIL TOOLS CO., LTD
Stainless Steel Of Wedge wire Screen 9 5/8'' Well ScreensOasis Oil Tools Co., Ltd is located in Xinxiang Industrial Park, Henan Province, which is collection of scientific research, production, manufacturing, sales and service as one of the major high-tech enterprise. We have a group of professional technical and sales staff and management team, extensive and stable business channel as well as the strong economic strength, international and domestic marketing ability. Our company treats customers as the center, focuses on CSI of after-sales products and service, and constantly deepens the cooperative relations with customers. We will adhere to "serve you, share with you" management philosophy, wholeheartedly for our customers with high quality products and perfect service.
Certifications:
Contact:
If you are interested in our Johnson type wire wrapped screen, welcome to inquiry me.
