Help CenterYilian Brand GSFQ1300 High Speed Paper Cup Buttom Slitter and Rewinder
Related Products
-
Yilian Brand WR-FT-T700 Paper Straw Paper Slitting MachineUS$ 10000 - 20000MOQ: 1 Set -
Yilian Brand FQJ1100-2000 Paper Cup Buttom Slitting MachineUS$ 10000 - 30000MOQ: 1 Set
-
Yilian Brand FQJ1100-2000B High Speed Paper Cup Buttom Slitting MachineUS$ 15000 - 40000MOQ: 1 Set
-
Yilian Brand FQJ1300 Paper Cup Buttom Slitter and RewinderUS$ 10000 - 30000MOQ: 1 Set
-
Yilian Brand FQJ1300B High Speed Paper Cup Buttom Slitter and RewinderUS$ 15000 - 40000MOQ: 1 Set

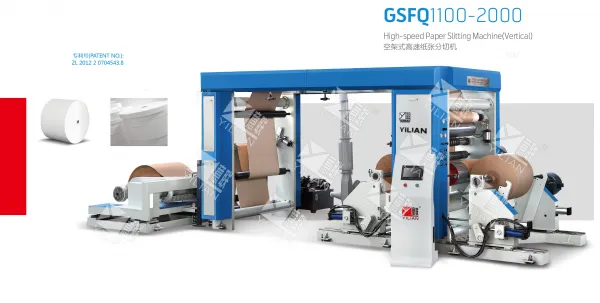

GSFQ 1100-1700 high speed paper slitting machine
This machine is suitable for cutting edge and cutting of large coiled material. Such as printing and packaging plastic membrane type, paper, cloth class and all kinds of paper plastic composite materials such as Lin Mozhi, coated paper, synthetic leather
Main features:
1 round knife cutting, cutting precision is high, the operation is convenient, and the cutter can be adjusted freely.
2 using A, B axis independent winding, automatic loading and unloading, easy to operate
3 winding with inflatable shaft, automatic tension control, surface friction; center winding, winding product tidy and compact
4 discharge frame adopts hydraulic Wuzhou automatic lifting function
5 waste edge automatic suction discharging device
6 this machine adopts frequency conversion and speed regulation, PLC automatic control, selection of imported photoelectric error correction device, automatic meter, alarm stop, tension digital display and other advanced functions
Form of production:
This machine is suitable for cutting edge and cutting of large coiled material. Such as printing and packaging plastic membrane type, paper, cloth class and all kinds of paper plastic composite materials such as Lin Mozhi, coated paper, synthetic leather, such as
Main technical parameters:
| model | GSFQ-1100 | GSFQ-1300 | GSFQ-1600 |
| diameter of unwinding | 1400mm | 1400mm | 1400mm |
| width of slitting | 1100mm | 1300mm | 1600mm |
| diameter of rewinding | 1400mm | 1400mm | 1400mm |
| min width of rewinding | 30mm | 30mm | 30mm |
| slitting speed | 10-300m/min | 10-300m/min | 10-300m/min |
| slitting accuracy | ±0.2mm | ±0.2mm | ±0.2mm |
| total power | 25kw | 28kw | 35kw |
| electric | 380V/50Hz Tri-phase | 380V/50Hz Tri-phase | 380V/50Hz Tri-phase |
| requirement of air pressure source | 5.5kg/cm2×0.5m3/min | 5.5kg/cm2×0.5m3/min | 5.5kg/cm2×0.5m3/min |
| weight | 5800kg | 6000kg | 6500kg |
| overall dimension | 7500×3500×2200mm | 7500×3700×2200mm | 7500×4000×2200mm |
