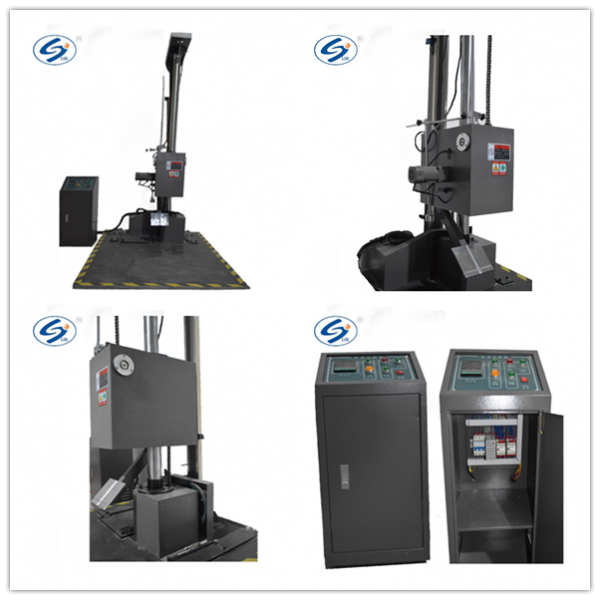

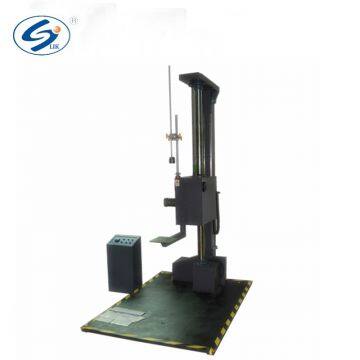

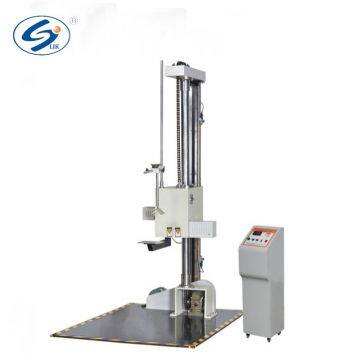

Automatic Drop Test Machine for Package Impact Test
Applicable range
Automatic Drop Test Machine for Package Impact Test The Drop Test system/Machine/Equipment, mainly simulate the impact resistance of the large heavy products in drop test, can achieve the drop test of product edge/face/corner. They are mainly used to assess the products ability of bearing drop during transportation, loading and unloading so as to improve and perfact the design of products.
Function
Package Drop Test Machine is used to test the damage degree when the package is dropped,
and test the impact resistance of the package during transportation, for example, to test the surface, edge and angle of the package through free-drop method.
Features
A. It adopts electromagnet control system to control the dropping swing

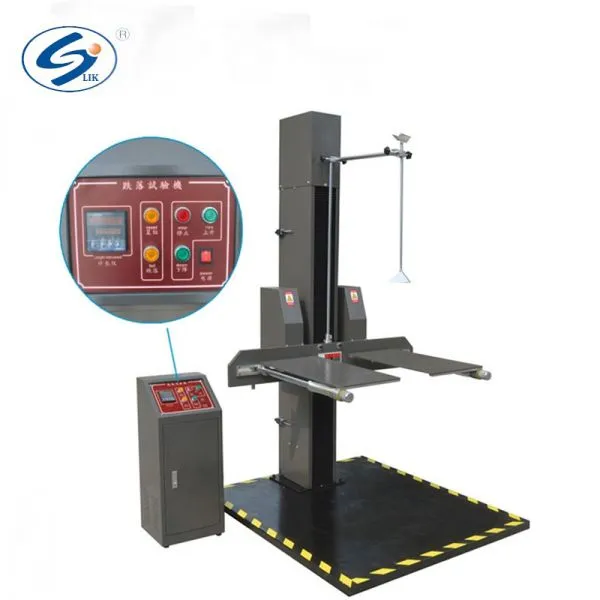

B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function,which has the whole function of dual arms drop tester
C. The testing height can be digital set up.
D. The minimum falling height can be to 200 mm.
E. The testing height can be digital set up.
F. Edge and Angle of dropping test results are more accurate.
Configuration
Outside material: advanced paint coat
Display: LCD display
Power system:drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)

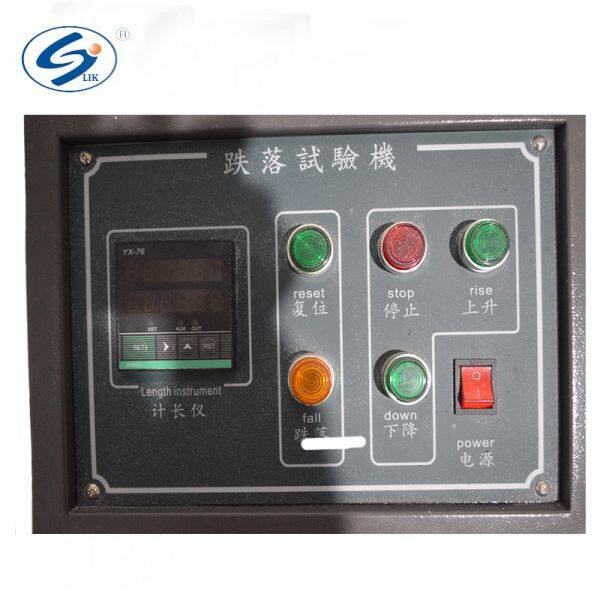

Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
Safety device:upper and lower limitation device, automatic off-power device if electricity leakage occurs
Products image( Temperature humidity Circulation Environmental Test Chamber Price )
Specifications and technical parameters
| Model | LK-212 | LK-315 | LK-320 | LK-012 | LK-015 |
| Dropping height(cm) | 20-150 | 30-150 | 30-200 | 0-120 | 0-150 |
| Specimen maximum weight (kg) | 100 | 100 | 100 | 300 | 500 |
| Specimen maximum size(L*W*H)cm | 60*40*70 | 100*80*100 | 100*80*100 | 120*120*120 | 120*120*120 |
| Equipment size (L*W*H) cm | 60*100*225 | 170*120*225 | 170*120*285 | 190*180*250 | 240*220*270 |
| Equipment Weight(kg) | 780 | 850 | 920 | 2100 | 2500 |

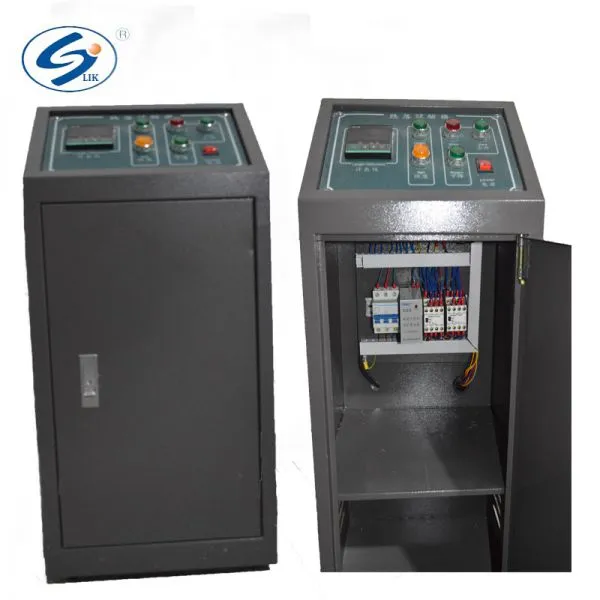

| Control method | By electronic controller box | ||||
| Display method | digital display | ||||
| Dropping deviation | ±10mm | ||||
| Deviation of dropping horizon | less than 1° | ||||
| Transmit Approach | Electric Transmission or Pneumatic | ||||
| Dropping method | electro-motion rising and dropping | electro-motion rising Pneumatic dropping | |||
| Consumer power(KVA) | 0.8 | 1.1 | 1.1 | 2.5 | 2.5 |
| Power | 3 phase, AC 380V±10%,50Hz | ||||
Corresponding test standards:
GB/T4857.5, IEC60068-2-32, ISO16750-3:2003 ISTA 1A/1B:2001, ISO 2248,JIS Z0202,ASTM D5276
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
LIK main test equipments:
Environmental test chambers, temperature (humidity) chamber,Thermal shock chamber, High low temperature test chamber, Salt spray test chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in constant temperature and humidity test chamber,Vacuum oven, Drying Cabinet, electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber, Powe battery crush and puncture test machine, Battery shock impact test machine, Battery Squeeze test machine, battery short circuit tester, Battery burning jet test equiopment, Battery needling test machine, etc
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. We accept on-site service If customers require.
1. Pre-service
24 Hours online service for your consult.
Help choose right model, and a series of service, person, advise. Main web site: /
1) More than 10 years manufacturer experience in test equipments and with strong research and development team.
2) Acceptable customization for all kinds of specical specification products.
3) We value the inquiry sent to us timely, ensure quick and competitive offer.
4) We put your order into our tight production schedule,ensure your punctual delivery time.
5) We are a sales team, with more than 10 years experience, more professional and reliable
6) Our professional team could provide the best suggestion as long as you tell us what kind of test you need to do and the required specification.
7) Welcome to view our factory at any moment .
2. After sale service
1) We deal with your complains within 24 hours and solution provide within 3 working days.
2) Trainning how to instal the machine, training how to use the machine. We would offer operation video and English operation muanual. We can provide video-con.
3) 1 year warranty service and all life maintenancee; our engineers could go to your place for better service necessarily.
4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be dedicated to provide high quality service and products for you.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Good Packaging: All goods are covered with film and air bubble film before put them into the strong wooden case.
