Large Thrust Electrodynamic Horizontal Vertical Shock Vibration Test Machine
Applicable range
Large Thrust Electrodynamic Horizontal Vertical Shock Vibration Test Machine, is widely applied to national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, transportation, home appliances, etc.
Vibration Test System adopts " double magnetic circuit structure", " self generation skeleton moving coil", "air suspension bearing", "air spring support " linear bearing and roller guide", " ear shaft vibration isolation" and other modern advanced technology and special technology, which can complete respectively three shaft sine vibration test and broadband random vibration test,
complete the classic (half sine, trapezoid and after peak saw) pulse and shock response spectrum test.
Features
1.The reliability is high, and the rate of fault is low.
2.The stay magnetic field of the vibration generator is little. This stray magnetic field doesn't
disturb the test sample which are sensitive to magnetic field.
3. Utilizing the computer on line control and inputting data for immediate storage facilitate the
control effectiveness and the control curve display.
4. The mass of armature is light. The stiffness of armature is high. The axial resonance
frequency of armature is over 4000Hz.
5. The various parameters such as vibration frequency, displacement, velocity and acceleration
can be monitored during the operating.
6. The design of low resistance and high performance is able to enhance the efficiency and
to lower the cost of testing.
7.The switching power amplifier can make the vibration system output more larger radom
thrust of root-mean-square value.
8.Large thrust,large displacement, high load, excellent guiding performance, small waveform distortion, high speed, complete protection functions etc.

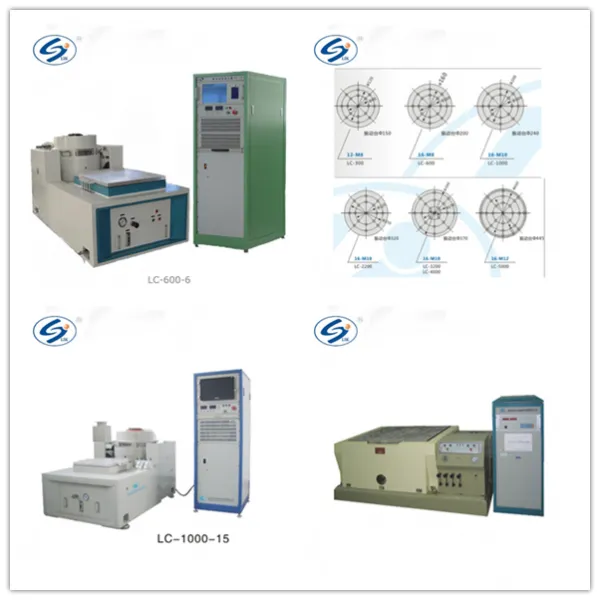

Products image(Large Thrust Electrodynamic Horizontal Vertical Shock Vibration Test Machine)
Specifications and technical parameters
| Model | LC-300-3 | LC-600-6 | LC-1000-15 | LC-2200-26 | LC-3200-36 | LC-4000-40 | LV-5000-50 | LV-6000-65 |
| Max. Load (Kg) | 120 | 300 | 300 | 400 | 500 | 500 | 1000 | 1000 |
| Frequency Range (Hz) | 5-4000 | 5-4000 | 5-4000 | 5-3000 | 5-2800 | 5-2800 | 5-2700 | 5-2700 |
| Rated Sine Thrust | 300kgf | 600kgf | 1000kgf | 2200kgf | 3400kgf | 4000kgf | 5500kgf | 6400kgf |
| Rated Random Thrust | 600kgf | 1200kgf | 2000kgf | 4400kgf | 6800kgf | 8000kgf | 11000kgf | 12800kgf |
| Max. Acceleration (m/s2) |
981 | 981 | 981 | 981 | 981 | 981 | 981 | 981 |
| Max. Speed (m/s) | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
| Max. Displacement (MMp-p) |
25 | 51 | 51 | 51 | 51 | 51 | 51 | 51 |
| Model of Vibration machine |
LC-300 | LC-600 | LC-1000 | LC-2200 | LC-3200 | LC-4000 | LC-5000 | LC-6000 |
| Weight of moving parts (kg) |
3 | 6 | 10 | 22 | 27 | 24 | 43 | 64 |

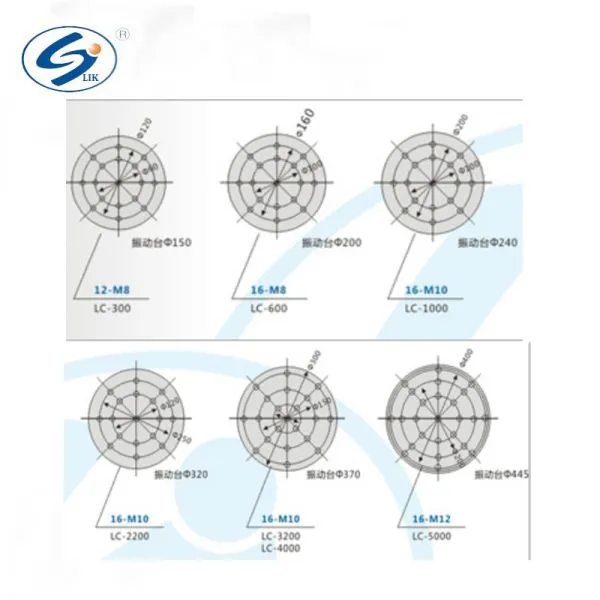

| Table diameter (mm) | 150 | 200 | 240 | 320 | 370 | 370 | 445 | 445 |
| Acceptable eccentric torque(Nxm) |
>196 | >300 | >390 | >500 | >500 | >500 | >1000 | >1100 |
| Table Dimension (mm) |
840*563 *677 |
1001*700 *765 |
1065*753 *880 |
1189*775 *1081 |
1339*860 *1160 |
1339*860 *1160 |
1605*1124 *1342 |
1065*1124 *1342 |
| Power Amplifier Model | SA-3 | SA-6 | SA-15 | SA-26 | SA-36 | SA-40 | SA-50 | SA-65 |
| Max. Output Power | 3KVA | 6KVA | 15KVA | 20KVA | 35KVA | 40KVA | 55KVA | 65KVA |
| Power Amplifier Dimension W*H*D(mm) |
550*680 *1445 |
550*68 0*1445 |
550*800 *1850 |
550*800 *1850 |
550*800 *1850 |
550*800 *1850 |
550*800 *2060 |
550*800 *2070 |
| Power Amplifier Weight (kg) |
230 | 275 | 420 | 410 | 510 | 620 | 760 | 780 |
| Power Amplifier Working Method |
Switch | |||||||
| Power Amplifier required power |
6.5KVA | 16KVA | 26KVA | 40KVA | 42KVA | 65KVA | 90KVA | 115KVA |
| Power | AC1∮ 220V /50Hz ;3∮380V50Hz | |||||||
| Cooling method | Forced air Cooling | |||||||
| Standard | GB/tT13310-1991, GB2423.10-1995,JJG190-1997,IEC68-2-6, Q/320502SN001-2002 | |||||||
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
LIK main test equipments:
Environmental test chambers, temperature (humidity) chamber,Thermal shock chamber, High low temperature test chamber, Salt spray test chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in constant temperature and humidity test chamber,Vacuum oven, Drying Cabinet, electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber, Powe battery crush and puncture test machine, Battery shock impact test machine, Battery Squeeze test machine, battery short circuit tester, Battery burning jet test equiopment, Battery needling test machine, etc
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. We accept on-site service If customers require.
1. Pre-service
24 Hours online service for your consult.
Help choose right model, and a series of service, person, advise. Main web site: /
1) More than 10 years manufacturer experience in test equipments and with strong research and development team.
2) Acceptable customization for all kinds of specical specification products.
3) We value the inquiry sent to us timely, ensure quick and competitive offer.
4) We put your order into our tight production schedule,ensure your punctual delivery time.
5) We are a sales team, with more than 10 years experience, more professional and reliable
6) Our professional team could provide the best suggestion as long as you tell us what kind of test you need to do and the required specification.
7) Welcome to view our factory at any moment .
2. After sale service
1) We deal with your complains within 24 hours and solution provide within 3 working days.
2) Trainning how to instal the machine, training how to use the machine. We would offer operation video and English operation muanual. We can provide video-con.
3) 1 year warranty service and all life maintenancee; our engineers could go to your place for better service necessarily.
4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be dedicated to provide high quality service and products for you.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Good Packaging: All goods are covered with film and air bubble film before put them into the strong wooden case.
