Factory Price Needle Flame Test Testing Equipment
Applicable range

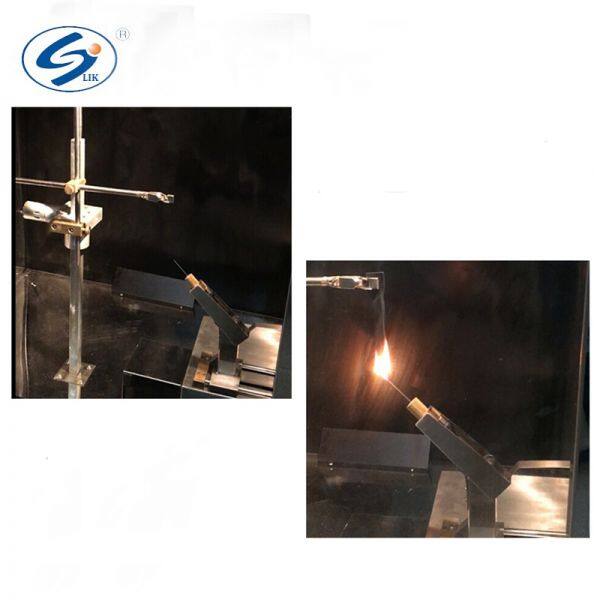

Factory Price Needle Flame Test Testing Equipment Needle-flame Tester could be applicable to ignition hazard test, combustibility test of electronic industry, home electronic appliance and materials. This tester specifies a needle-flame test to simulate the effect of a small flame which may result from fault conditions, in order to assess product and material's ignition risk and fire retardance by a simulation technique the fire.
Features:

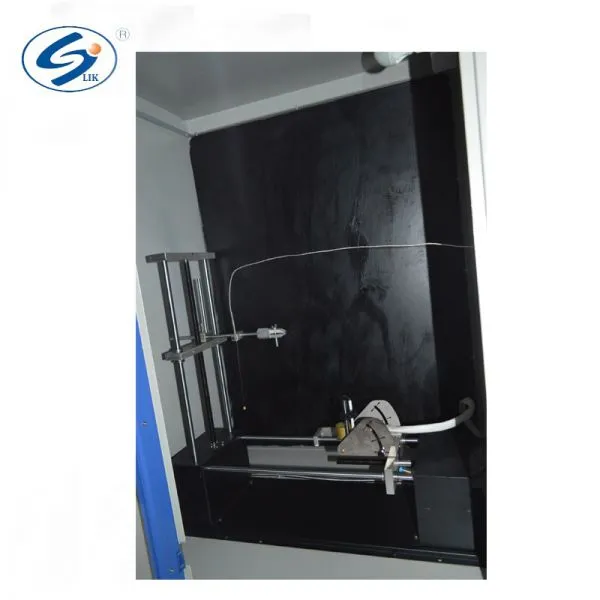

1.Self contained cabinet with large viewing window.
2.Dark interior cabinet color for better test viewing.
3.Internal cabinet light can be turned on during test setup and shut off to give better viewing during the test.
4.Automatic electronic flame ignition with type K thermocouple and temperature control to automatically measure, verify, and adjust the flame temperature and rate of rise time.

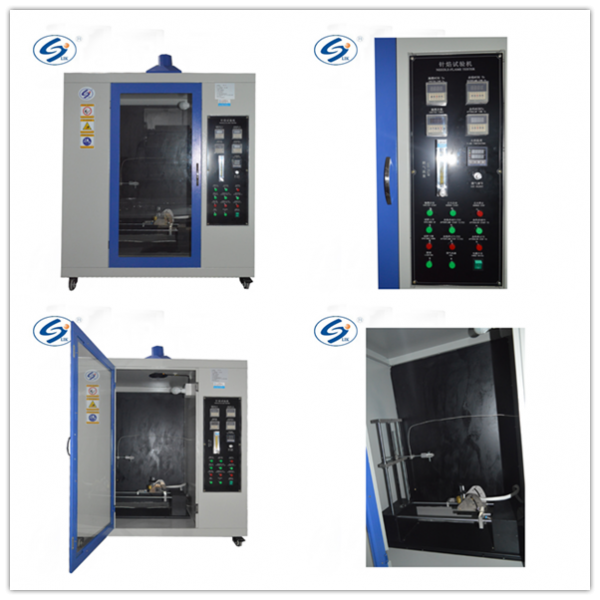

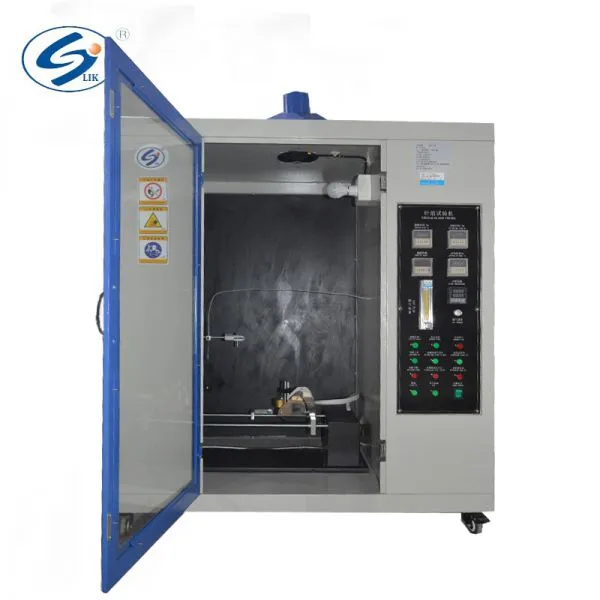

Products image(Factory Price Needle Flame Test Testing Equipment)
Specifications and technical parameters
(Factory Price Needle Flame Test Testing Equipment)
| Model | ZY-1 | ZY-2 | ZY-3 | |||
| Needle burner | inner diameter Φ 0.5mm, Outer Diameter Φ 0.9m Pinhead height ≥ 35mm, stainless steel |
|||||
| Burner angle | 0,°20°, 45° (adjust flame height) | |||||
| Thermocouple | Ø0.5mm Type K (Ni/Cr - Ni/Al) | |||||
| Burning time | 0-999.9 s ± 0.1 s adjustable (usually selected for 30s) | |||||
| Hold Burning time | 0-999.9 s ± 0.1 s, automatic recording, manual timeout | |||||
| Flame Height | 12mm ± 1mm ( adjustable, with height measurement instruments) | |||||
| Flame Gas | butane gas/Butane gas, min. 95% purity (can use bottled lighter gases) | |||||
| Temperature Test Range | 0~1000°C | |||||
| Flame Temperature Requirements | from 100 °C ± 2 °C liters to 700 °C ± 3 °C time in 23.5 seconds ± 1 seconds | |||||
| Standard Copper Block | 4mm±0.01mm, weight.0.58g±0.01g before drilling. Cu-ETP | |||||
| Test process | automatic control, independent convulsions | |||||
| Chamber | ≥0.5m3 (0.75 or 1 can customized) | |||||
| Size | W1100mm×D700mm×H1300mm, exhaust hole Ø100mm | |||||
| Control | Manual Control | |||||
| Consult standard | GB/T5169.10-2006 , IEC60695-2-10:2000,UL746A | |||||
| Power Supply | AC220V, 50Hz | |||||
| Standard | IEC60695-11-5, GB/T5169.5-2008, GB4706.1-2005 | |||||
| Display panel language | Chinese + English (adjustable) | |||||
