Materials Tester Glow Wire Flammability Testing Machine
- 150 Set / Sets per Month
- Yantian
- T/T Other
- 30 days
Product Details
Brand Name: | LIK | Place of Origin: | China | Model Number: | GTR-A |
Power: | Electronic | Usage: | Other, Glow wire tester |
Product Description
/product-group/ebsJCzDYCrhl/Materials-testing-equipment-catalog-1.html
Materials Tester Glow Wire Flammability Testing Machine
Applicable range
Materials Tester Glow Wire Flammability Testing Machine The Glow Wire Tester is designed to carry out fire hazard testing on electrotechnical products in accordance with the provisions of International standards.
Glow Wire Tester applied for electronic products, household appliances, and materials to have fire fatalness test; simulate heating origin or ignition source of scorching element or overloaded resistance and the heat stress produced in a short period.
Features:
1.The equipment is in accordance with GB5169, GB4706, IEC60695, UL746A.
2.Sample can be divided from glowing filament automatically when it reaches the ruled initiation time.

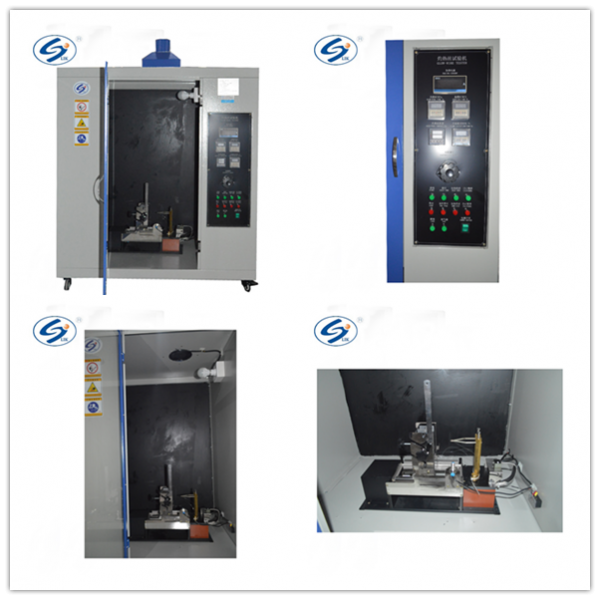

Products image(Materials Tester Glow Wire Flammability Testing Machine)
Specifications and technical parameters (Materials Tester Glow Wire Flammability Testing Machine)
Model | GTR-A | GTR-B | GTR-C |
Glow Wire | Ø 4mm±0.04mmNi/Cr(80%/20%), standard | ||
Temperature Range | 500 ~ 1000 °C± 2 °C continuous adjustable | ||
Thermocouple | Ø0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperatur 40°C~ 1100°C | ||
Searing Time | 30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, adjustable) | ||
Light-off Time | 0-999.9 s ± 0.1 s, automatic recording, manual stop | ||
Fire out time | 0-999.9 s ± 0.1 s, automatic recording, manual stop | ||
Ironing into depth | 7mm ± 0.5 mm | ||
Sample pressure | 1N ± 0.2 N | ||
Test speed | 18±3mm/s | ||
Test background | black background | ||
Test process | automatic control, independent convulsions | ||
Chamber | ≥0.5 cube meter(0.75 or 1 can customized) | ||
Control | Using single chip microcomputer + touch screen control | ||
Consult standard | GB/T5169.10-2006 , GB4706, IEC60695-2-10:2000, UL746A | ||
Power Supply | 800VA ,220V, 48-60Hz | ||
Display panel language | Chinese and English |
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
LIK main test equipments:
Environmental test chambers, temperature (humidity) chamber,Thermal shock chamber, High low temperature test chamber, Salt spray test chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in constant temperature and humidity test chamber,Vacuum oven, Drying Cabinet, electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber, Powe battery crush and puncture test machine, Battery shock impact test machine, Battery Squeeze test machine, battery short circuit tester, Battery burning jet test equiopment, Battery needling test machine, etc
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. We accept on-site service If customers require.
1. Pre-service
24 Hours online service for your consult.
Help choose right model, and a series of service, person, advise. Main web site: /
1) More than 10 years manufacturer experience in test equipments and with strong research and development team.
2) Acceptable customization for all kinds of specical specification products.
3) We value the inquiry sent to us timely, ensure quick and competitive offer.
4) We put your order into our tight production schedule,ensure your punctual delivery time.
5) We are a sales team, with more than 10 years experience, more professional and reliable
6) Our professional team could provide the best suggestion as long as you tell us what kind of test you need to do and the required specification.
7) Welcome to view our factory at any moment .
2. After sale service
1) We deal with your complains within 24 hours and solution provide within 3 working days.
2) Trainning how to instal the machine, training how to use the machine. We would offer operation video and English operation muanual. We can provide video-con.
3) 1 year warranty service and all life maintenancee; our engineers could go to your place for better service necessarily.
4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be dedicated to provide high quality service and products for you.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Good Packaging: All goods are covered with film and air bubble film before put them into the strong wooden case.
FAQ
Why choose us?
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.Hot selling lab electronic
temperature humidity cabinet/Environmental climate test chamber also can be customized.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information
about the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping ,
you just need link power in your lab, then can start to operate.
Secondly, we had detailed operation manual with chamber , any problems you can
find and solve in it.
Thirdly, some of customized chambers we should to install and teach your team to operate .
