Home > Products > Paper, Paperboard, packaging tester > Automatic Corrugated Carton Box Compression Strength Test Testing Equipment
Automatic Corrugated Carton Box Compression Strength Test Testing Equipment
- 100 Set / Sets per Month
- Yantian
- T/T PayPal Other
- 30 days
Product Details
Brand Name: | LIK | Place of Origin: | China | Model Number: | LJ-803A-1T |
Power: | Electronic | Usage: | Strength Testing Machine |
Product Description
/product-group/gqsxdRDjXYWn/Paper-Paperboard-and-Packaging-Tester-catalog-1.html
Automatic Corrugated Carton Box Compression Strength Test Testing Equipment
Applicable range
Automatic Corrugated Carton Box Compression Strength Test Testing Equipment The machine is used to test the compression strength, bending strength ,proof pressure, deformation and stowage for flexible packaging cases , corrugated cases, honeycomb crates, and other packaging cases.
Features
1) Strength test:
Strength test which belongs to a destructive test is mainly used to measure the deformation when the Sample is loaded with maximum pressure or crushing strength.
2) Constant Value Test:
There are two parameters which are to be set in the constant value test: Load force value and
Deformation value. The user can set one or both of them according to the practical requirement; The Measurement is complete when any parameter reaches the set value.
3) Stacking Test:
Stacking Test is used to check up that whether the sample can endure a constant pressure in a given Time period. Set up two parameters: Compressive strength and testing time (hour). When the test Starts, the system will check the current pressure at any moment to ensure the set value; The Measure is complete when the test time is expired or the deformation value exceeds the set one Within testing time.
4) The overall system is in good parallelism, stationarity and high return speed. 5) With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
6) It displays the pressure curve in real time and can communicate with the computer.

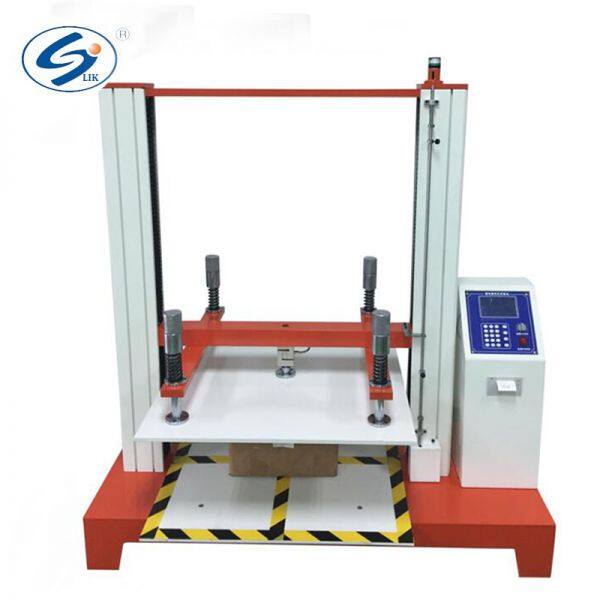

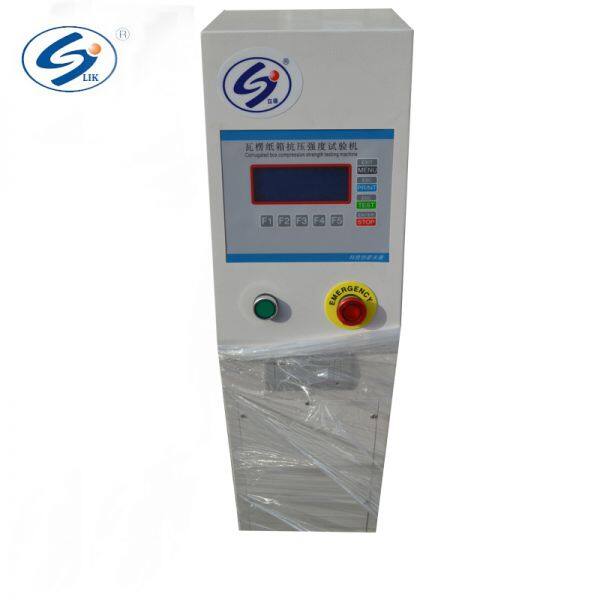

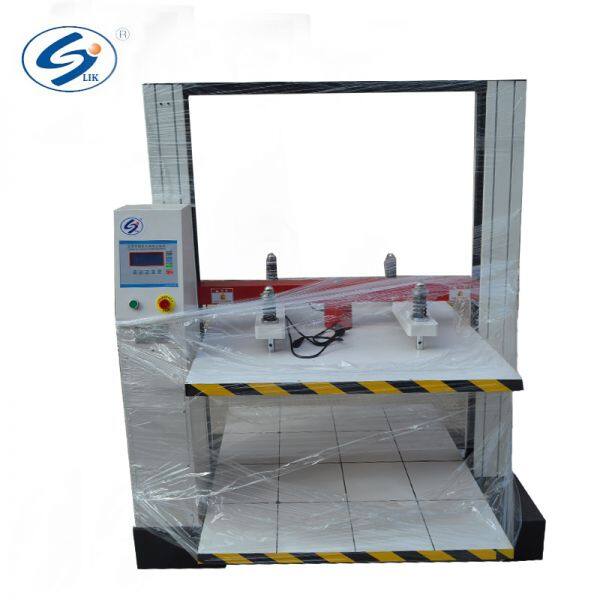

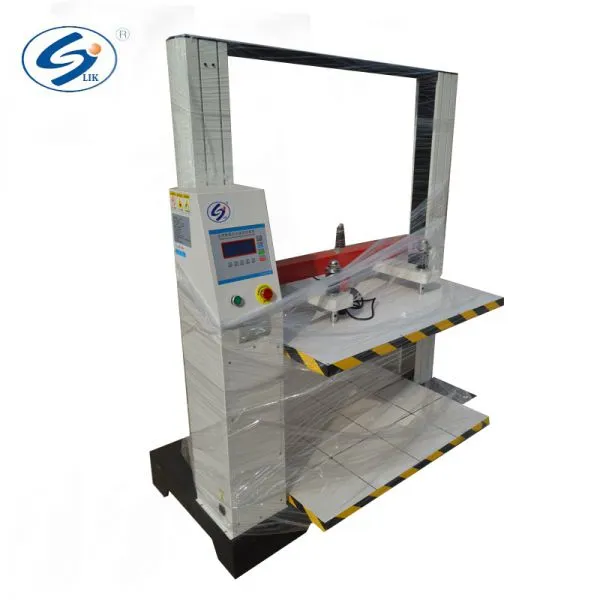

Products image(Automatic Corrugated Carton Box Compression Strength Test Testing Equipment)
Specifications and technical parameters (Automatic Corrugated Carton Box Compression Strength Test Testing Equipment)
Model: | LJ-803A-0.5T | LJ-803A-1T | LJ-803A-2T | LJ-803A-5T |
apacity (optional): | 0.5T | 1T | 2T | 5T |
Unit (switchable): | Kg, Lb, N | |||
Load Resolution: | 1/10,000 | |||
Load Accuracy: | ≤0.5% | |||
Indication error: | +/-1% | |||
Return velocity: | 250 mm/min (maximum) | |||
Display: | LCD large screen | |||
Driving mode: | T wire rod + chain drive | |||
Test Space (L×W×H): | 800*800*1000mm | 1000*1000*1000mm | 1000×1200×1200mm | |
Working Stroke: | 1000mm(customized) | |||
Adjustable range of speed: | 5~250mm/min | |||
Speed of Compression: | 10 ± 3 mm/min | |||
Report Items: | Serial number, Peak value, Average value, Designated holding pressure value; all memorable | |||
Structure: | AC frequency conversion motor; Ordinary screw rod | |||
Function: | automatic print statements, print (maximum force, average value, preepoint selection value, breakpoint ratio, date) | |||
Weight : | Approx. 850 kg | |||
Power: | 220V/ 50Hz | |||
Safety Devices: | Leakage protection, Overload protection, overvoltage protection & limited position protection device | |||
Display panel language | Chinese + English (adjustable) |
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
LIK main test equipments:
Environmental test chambers, temperature (humidity) chamber,Thermal shock chamber, High low temperature test chamber, Salt spray test chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in constant temperature and humidity test chamber,Vacuum oven, Drying Cabinet, electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber, Powe battery crush and puncture test machine, Battery shock impact test machine, Battery Squeeze test machine, battery short circuit tester, Battery burning jet test equiopment, Battery needling test machine, etc
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. We accept on-site service If customers require.
1. Pre-service
24 Hours online service for your consult.
Help choose right model, and a series of service, person, advise. Main web site: /
1) More than 10 years manufacturer experience in test equipments and with strong research and development team.
2) Acceptable customization for all kinds of specical specification products.
3) We value the inquiry sent to us timely, ensure quick and competitive offer.
4) We put your order into our tight production schedule,ensure your punctual delivery time.
5) We are a sales team, with more than 10 years experience, more professional and reliable
6) Our professional team could provide the best suggestion as long as you tell us what kind of test you need to do and the required specification.
7) Welcome to view our factory at any moment .
2. After sale service
1) We deal with your complains within 24 hours and solution provide within 3 working days.
2) Trainning how to instal the machine, training how to use the machine. We would offer operation video and English operation muanual. We can provide video-con.
3) 1 year warranty service and all life maintenancee; our engineers could go to your place for better service necessarily.
4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be dedicated to provide high quality service and products for you.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Good Packaging: All goods are covered with film and air bubble film before put them into the strong wooden case.
FAQ
Why choose us?
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.Hot selling lab electronic
temperature humidity cabinet/Environmental climate test chamber also can be customized.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information
about the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping ,
you just need link power in your lab, then can start to operate.
Secondly, we had detailed operation manual with chamber , any problems you can
find and solve in it.
Thirdly, some of customized chambers we should to install and teach your team to operate .
