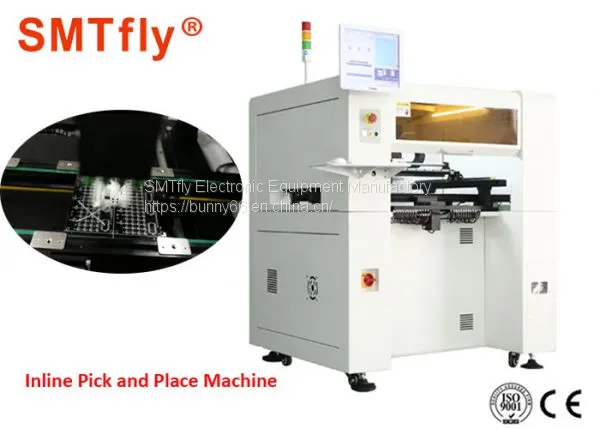

Parts of PCB Pick and Place Machine Features:
Feeder No. |
46(Front 20,rear 26) |
Product Weight |
450Kgs |
Mounting Heads |
4(No need to change Nozzle) |
XYZ Drive Guide Rail |
TBI High-precision heavy-duty straight-line guide rail |
Average Power |
600W |
||
Positioning Accuracy |
0.01mm |
Motion Drive System |
Panasonic High Speed DPS Driver |
Nozzle Buffering Range |
5.0mm |
Operating System |
Support Windows XP,Win7 Operating System |
Power Supply |
220V,50Hz |
Component Angle |
0~360°,Synchronized rotation in motion |
Compressed Air |
0.5-0.6Mpa |
X/Y Running Mode |
Intelligent Curve Acceleration and Deceleration Linear Linkage |
Driving Motor |
Panasonic Servo Motor |
||
Recognition Method’ |
4 Heads Recognize Synchronously |
Placement Mode |
Manual,Semi-automatic,Full-automatic |
Nozzle Vacuum Source |
High-speed on-off vacuum generator with vacuum damage |
Alarm when open the cover |
Reducing speed or out of service |
XY Max Movement Range |
556*680mm |
Rail Guide Adjusting Method |
Manual+Automatic |
Max Circuit Board Area |
480*300mm |
Board Input Method |
Automatically connect loader and position PCB transmission |
Z Axis Max Movement Range |
20mm |
Visual Display |
15”industrial control display ratio 4:3,resolution 1024*768 |
Belt Type Feeder |
8/12/16/24mm feeders stick feeder |
Programming Mode |
Point to Point,Visual Programming,PCB file coordinates inputting,etc |
Max Mounting Speed |
8000CPH |
||
Average Mounting Speed |
6000CPH(Visual) |
Recognition Camera No |
1 Mark recognition camera,4 high speed recognition camera,1 high-precision recognition camera |
Dimensions |
1095*1165*1400mm |
Applicable Mounting Range:Suitable for 0402,0603,0805,1206,LED lamp beads,diodes,transistors,SOT,45*45mm range pin pitch ≥ 0.03mm QFP,BZGA etc.
Parts of PCB Pick and Place Machine Features:
High Precision: Equipped with 6pcs of cameras: 1pc of Mark, 1pc of high precision, and 4pcs of high-speed recognition cameras, could effectively mount 0402-5050 components, beads, diodes, transistors, SOP, 45mm*45mm range pin pitch ≥0.3mm chip QFP-256, BGA etc.
