Help CenterV Groove Line Making PCB Scoring Machine Highly Automated
Related Products
-
V Cut PCB Scoring Machine 0-40m/Min Processing SpeedNegotiableMOQ: 1 Set -
0.05mm Accuracy PCB Scoring Machine 1900 × 2280 ×1585mm SizeNegotiableMOQ: 1 Set
-
High Performance PCB Scoring Machine For Making V Cut LineNegotiableMOQ: 1 Set
-
FPC Laser Depaneling for Fpc Cutting,CWVC-5LUS$ 1 - 1MOQ: 1 Set
-
DIY PCB Cutter,PCB V Cut Sepecification With Laser Cutting Machine,CWVC-5LUS$ 1 - 1MOQ: 1 Set

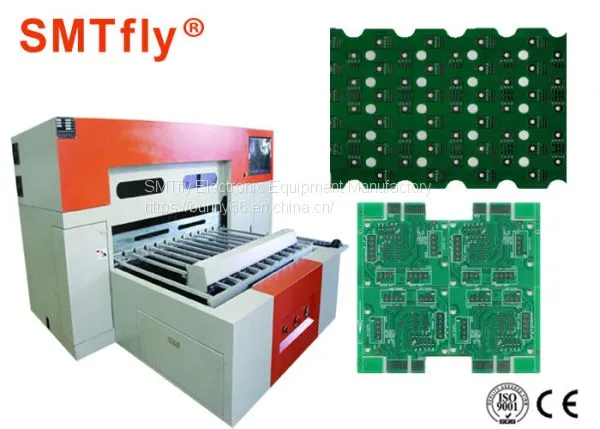

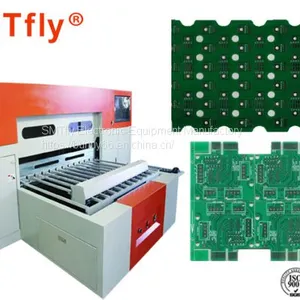

Uses: SMTfly-YB1200 automatic V-CUT machine, suitable for PCB aluminum substrate processing.
With marble as a working platform, it has stable performance and high performance-to-price ratio and is recognized by our customers.
Specifications:
Max processing size |
1250mmx650mm |
Min processing size |
105mmx105mm |
Processing thickness |
0.4mm~3.2mm |
Processing position |
the origin to the first knife up to 7.0mm or more |
Processing pitch |
setting within parameters,Full-closed loop auto-correction function |
Number of jumps |
set in the parameters |
Processing accuracy |
Residual thickness ±0.05mm |
Parallel |
±0.05mm |
Pitch |
±0.05mm |
Processing speed |
0-40m/min |
Machine size |
2030(W)x2350(L)x1665(H) |
Machine weight |
1500kg |
Electronic Control System Introduction:
Upper and lower cutters adopt Mitsubishi servo motor with 3μ precision;
Maximum speed 3500rpm Maximum output power 400W;
Push plate axis adopts Mitsubishi servo motor specification accuracy of 3μ;
Maximum speed 3500rpm Maximum output power 700W;
Cutter shaft adopts Japan Mitsubishi servo motor specification accuracy is 3μ;
Maximum speed 3500rpm Maximum output power 1500W;
The upper and lower grinding wheels adopt Japanese Fuji servo motor with the specification precision of 5;
Maximum speed 8000rpm Maximum output power 400W;
PLC module controller adopts six-axis motion control;
Its control stability is high.
Software introduction:
System data and PC integrated management;
Processing data transmission completed in 10 seconds;
Chinese operation interface circular operation is simple;
Processing data file management up to tens of thousands of pens;
With processing data search function and delete function.
Non-board full-scale tester:
This machine adopts West German set of pin action process;
Humanized operation flow makes processing more smooth.
Production board function:
With ergonomic operation height, the operator can be more handy;
The height of the main body of the machine can make the operator more comfortable;
The main structure of the machine is relieved of stress and strengthened with steel to increase stability;
The entire process is highly accurate, yields amazing, and increases efficiency.
Gripper function description:
This machine uses eleven independent cylinder jaws;
Can adjust the cylinder flow rate;
The space nail is precision ground 2.25~3.20mm;
Can be used as a set of pin dual purpose;
Automatic stripping function.
