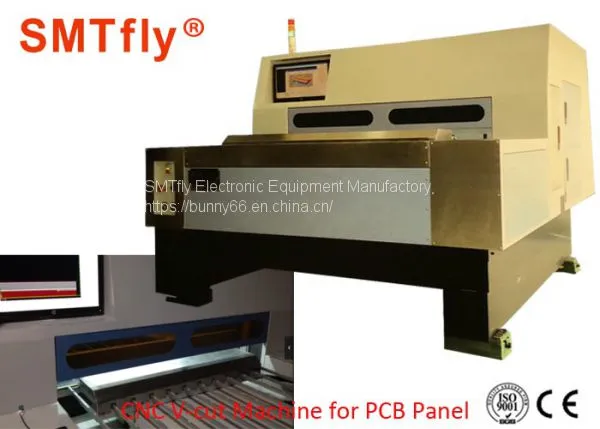

Help Center0.05mm Accuracy PCB Scoring Machine 1900 × 2280 ×1585mm Size
Related Products
-
V Groove Line Making PCB Scoring Machine Highly AutomatedNegotiableMOQ: 1 Set -
V Cut PCB Scoring Machine 0-40m/Min Processing SpeedNegotiableMOQ: 1 Set
-
High Performance PCB Scoring Machine For Making V Cut LineNegotiableMOQ: 1 Set
-
FPC Laser Depaneling for Fpc Cutting,CWVC-5LUS$ 1 - 1MOQ: 1 Set
-
DIY PCB Cutter,PCB V Cut Sepecification With Laser Cutting Machine,CWVC-5LUS$ 1 - 1MOQ: 1 Set
Specifications:
Max processing size |
630mmx630mm |
Min processing size |
105mmx105mm |
Processing thickness |
0.3mm~3.2mm |
Processing position |
from the origin to the first knife up to 7.0mm or more |
Processing pitch |
setting within parameters,Full-closed loop auto-correction function |
Number of jumps |
set in the parameters |
Processing accuracy |
Residual thickness±0.05mm |
Parallel |
±0.05mm |
Pitch |
±0.05mm |
Processing speed |
0-50m/min |
Machine size |
1850(W)x2000(L)x1400(H) |
Machine weight |
1500kg |
Electronic Control System Introduction:
Upper and lower cutters adopt Mitsubishi servo motor with 3μ precision;
Maximum speed 3500rpm Maximum output power 200W;
Push plate axis adopts Mitsubishi servo motor specification accuracy of 3μ;
Maximum speed 3500rpm Maximum output power 400W;
Cutter shaft adopts Japan Mitsubishi servo motor specification accuracy is 3μ;
Maximum speed 3500rpm Maximum output power 700W;
The upper and lower grinding wheels adopt Japanese Fuji servo motor with the specification precision of 5μ;
Maximum speed 8000rpm Maximum output power 400W;
PLC module controller adopts six-axis motion control;
Its control stability is high.
