Smd Piezo Buzzer for Medical Equipment

Smd Piezo Buzzer for Medical Equipment photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Kingwei
Place of Origin:
China
Model Number:
KST0918F05
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Kingwei
Place of Origin China
Model Number KST0918F05
Type Buzzer

1、General

Out-Diameter 9*9mm
Height 1.8mm
Weight 0.3g
Operating Temperature Range -20~+85ºC without loss of function
Store Temperature Range -40~+90ºC without loss of function



2、Electrical and Acoustic Characteristics

Test condition: 15~35℃,25%~85% RH, 860~1060mbar

Items Specification
Rated Voltage 5Vp-p Square Wave
Operating Voltage 1.0~25Vp-p Square Wave
Max. Rated Current 5mA at 4.1KHz/5Vp-p Square Wave
Resonant Frequency 4.1±0.5KHz
Min. Sound Pressure Level 68dB at 4.1KHz/5Vp-p Square Wave/10cm
Capacitance at 100Hz 12000nF±30% at 1KHz
Case Material/Color PPA/BLACK
Leading Pin Tin Plated Brass (Sn)

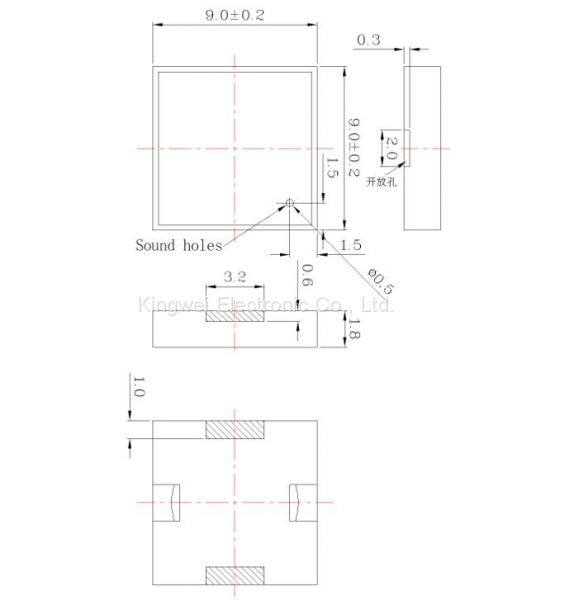

3、Product Overview



4、FAQ:


1)Is your parts new and original ?

Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .



2)What is your lead time ?

Answer: For in-stock product, we will send out after we receive your payment.



3) Can you provide samples?

Answer:Yes,we can provide 5 pcs free sample but you would bear the freight.



4) Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.


Product Tags: smd buzzer , piezo buzzer , smd piezo buzzer
