Active Sound Warning Piezo Siren High Power Electronics Siren
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Kingwei
Place of Origin:
China
Model Number:
KWS74L
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12v Piezo Siren for Alarm Security SystemNegotiableMOQ: 100 Pieces -
Alarm Siren Piezo Siren For Car Burglar Alarm Or Home Security AlarmNegotiableMOQ: 100 Pieces
-
Piezo 12v dc Motor Siren With WireNegotiableMOQ: 100 Pieces
-
Electronic Car Alarm SirenNegotiableMOQ: 100 Pieces
-
Hot Sell Alarm High dB DC Piezo Buzzer Siren for Security SystemNegotiableMOQ: 100 Pieces
Brand Name
Kingwei
Place of Origin
China
Model Number
KWS74L
Type
Siren

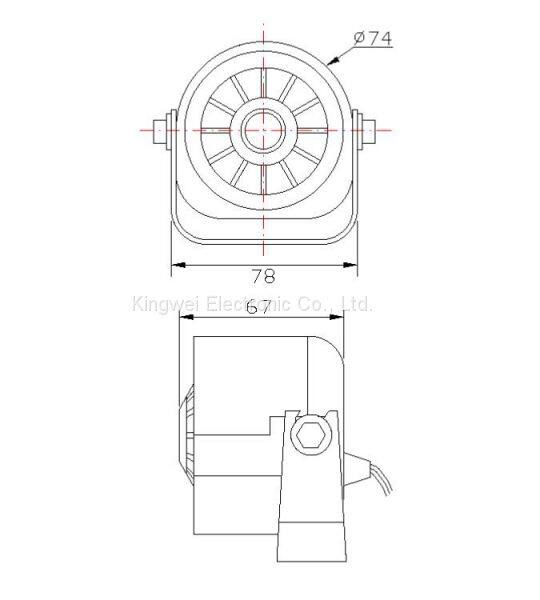

1、General
| Out-Diameter | 78*67mm |
| Height | 78mm |
| Weight | 200g |
| Operating Temperature Range | -20~+70℃ without loss of function |
| Store Temperature Range | -30~+70℃ without loss of function |
2、Electrical and Acoustic Characteristics.
Test condition: 15~35℃，25%~85%RH，860~1060mbar
| Items | Specification |
| Voice Coil IMP | 12VDC |
| Current | 0.7±0.15A |
| dB Level | 105+5dB-3dB |
| Sound | 6-TONE |
| V.C. Size | φ25.4MM |
| DCR | 12Ω±10% |
| Magnet | φ24.5 |
| Weight | 200g±15% |
| Wire | 22AWG/45cm |
3、Product Overview
4、FAQ
1）Is your parts new and original ?
Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .
2）What is your lead time ?
Answer: For in-stock product, we will send out after we receive your payment.
3) Can you provide samples?
Answer：Yes,we can provide 5 pcs free sample but you would bear the freight.
4) Do you support OEM and ODM services?
Yes, we can customize products according to the drawing.
