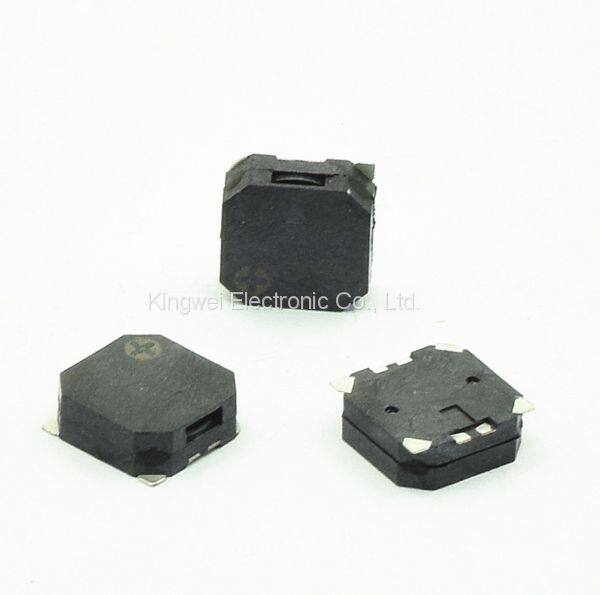

Small 3V 5V 7525 SMD Magnetic Buzzer With Thin Thickness
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Kingwei
Place of Origin:
China
Model Number:
KSM7525KA36
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3v 85dB Electronic 8*8*2.5mm Passive Smd Magnetic Buzzer High Temperature ResistanceNegotiableMOQ: 100 Pieces -
For Automatic Welding High Temperature Smd Magnetic Buzzer With LCP MaterialNegotiableMOQ: 100 Pieces
-
Long Operating Life 12V Single Tone Small Magnetic Smd Voice Transducer BuzzerNegotiableMOQ: 100 Pieces
-
Continuous Tone 5v Smd Magnetic Buzzer 12.8*12.8*10mm Compliance With RoHSNegotiableMOQ: 100 Pieces
-
9.6*9.6*5mm 5V SMD Buzzer Electric Active Magnetic BuzzerNegotiableMOQ: 100 Pieces
Brand Name
Kingwei
Place of Origin
China
Model Number
KSM7525KA36
Type
Buzzer
1、General
| Out-Diameter | 7.5*7.5mm |
| Height | 2.5mm |
| Weight | 0.5g |
| Operating Temperature Range | -20~+60ºC without loss of function |
| Store Temperature Range | -30~+80ºC without loss of function |
2、Electrical and Acoustic Characteristics
| Items | Specification |
| Rated Voltage | 3.6 Vp-p Square Wave |
| Operating Voltage | 2.5~4.5 Vp-p Square Wave |
| Max. Rated Current | 90mA at 2.7KHz / 3.6V p-p Square Wave/10cm |
| Resonant Frequency | 2700±500Hz |
| Min. Sound Pressure Level | 80dB at 2.7KHz /3.6 Vp-p Square Wave/10cm |
| Coil Resistance | 15±3Ω |
| Case Material/Color | LCP/Black |
| Leading Pin | Tin Plated Brass (Sn) |
3、Product Overview
4、FAQ:
1) Is your parts new and original ?
Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .
2) What is your lead time ?
Answer: For in-stock product, we will send out after we receive your payment.
