3v 85dB Electronic 8*8*2.5mm Passive Smd Magnetic Buzzer High Temperature Resistance

3v 85dB Electronic 8*8*2.5mm Passive Smd Magnetic Buzzer High Temperature Resistance thumbnail-1
3v 85dB Electronic 8*8*2.5mm Passive Smd Magnetic Buzzer High Temperature Resistance photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Kingwei
Place of Origin:
China
Model Number:
KSM8025C36
Contact Supplier Request Quote Chat Now
Kingwei Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Kingwei
Place of Origin China
Model Number KSM8025C36
Type Buzzer

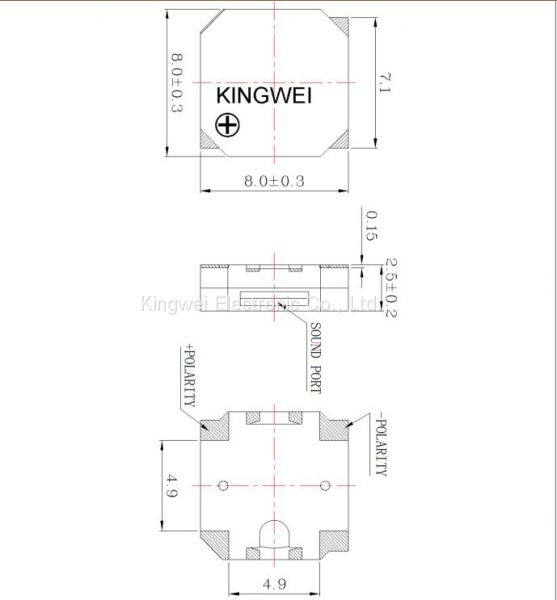

1、General

Out-Diameter 8*8mm
Height 2.5mm
Weight 0.8g
Operating Temperature Range -20~+60ºC without loss of function
Store Temperature Range -30~+80ºC without loss of function


2、Electrical and Acoustic Characteristics

Items Specification
Rated Voltage 3.6 Vp-p Square Wave
Operating Voltage 2.5~4.5 Vp-p Square Wave
Max. Rated Current 100mA at 2.7KHz / 3.6V p-p Square Wave
Resonant Frequency 2700±500Hz
Min. Sound Pressure Level 85dB at 2.7KHz /3.6 Vp-p Square Wave/10cm
Coil Resistance 16±3Ω
Case Material/Color LCP/Black
Leading Pin Tin Plated Brass (Sn)


3、Product Overview


4、FAQ:


1）Is your parts new and original ?

Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .



2）What is your lead time ?

Answer: For in-stock product, we will send out after we receive your payment.



3) Can you provide samples?

Answer：Yes,we can provide 5 pcs free sample but you would bear the freight.



4) Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.


Product Tags: passive smd buzzer , smd magnetic buzzer , Buzzer
