Long Operating Life 12V Single Tone Small Magnetic Smd Voice Transducer Buzzer
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Kingwei
Place of Origin:
China
Model Number:
KSA1775F12
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Continuous Tone 5v Smd Magnetic Buzzer 12.8*12.8*10mm Compliance With RoHSNegotiableMOQ: 100 Pieces -
9.6*9.6*5mm 5V SMD Buzzer Electric Active Magnetic BuzzerNegotiableMOQ: 100 Pieces
-
Smd Piezo Buzzer for Medical EquipmentNegotiableMOQ: 100 Pieces
-
SMD Piezo 3v Buzzer for Pos MachineNegotiableMOQ: 100 Pieces
-
9*9*1.9mm 3V Low Current High Frequency SMD Piezo BuzzerNegotiableMOQ: 100 Pieces
Brand Name
Kingwei
Place of Origin
China
Model Number
KSA1775F12
Type
Buzzer

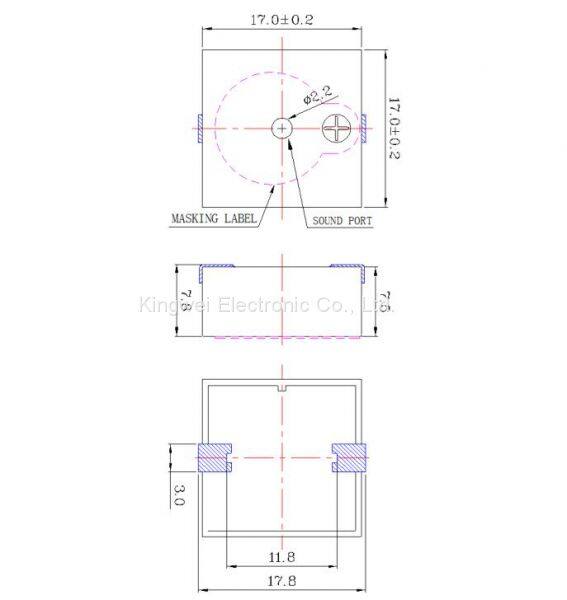

1、General
| Out-Diameter | 17*17mm |
| Height | 7.5mm |
| Weight | 2.6g |
| Operating Temperature Range | -20~+70ºC without loss of function |
| Store Temperature Range | -30~+80ºC without loss of function |
Storage Time: After being placed in a chamber with 40% R.H. at +25±3℃，may preserve for 6 months.
2、Electrical and Acoustic Characteristics
Test condition: 15~35℃，25%~85% RH, 860~1060mbar
| Items | Specification |
| Rated Voltage | 12VDC |
| Operating Voltage | 3-20VDC |
| Max. Rated Current | 80mA/12VDC |
| Resonant Frequency | 4±0.5KHz |
| Min. Sound Pressure Level | 83dB/12VDC/10cm |
| Tone Nature | Single |
| Case Material/Color | PPS/BLACK |
| Leading Pin | Tin Plated Brass (Au) |

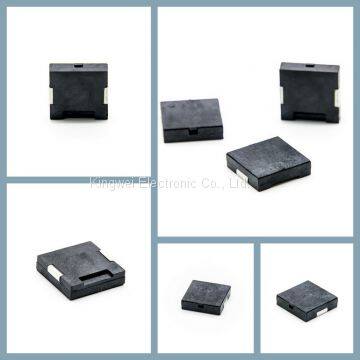

3、Product Overview
4、FAQ:
1）Is your parts new and original ?
Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .
2）What is your lead time ?
Answer: For in-stock product, we will send out after we receive your payment.
3) Can you provide samples?
Answer：Yes,we can provide 5 pcs free sample but you would bear the freight.
4) Do you support OEM and ODM services?
Yes, we can customize products according to the drawing.
