Home > Construction & Decoration > Acoustic Materials > Acoustic Wall Panel > 3V 5V 12V Small Buzzer Electric Loud Magnetic Buzzer
3V 5V 12V Small Buzzer Electric Loud Magnetic Buzzer
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Kingwei
Place of Origin:
China
Model Number:
KWA1275B12
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
9mm 5vdc Electric Magnetic Buzzer With PBT MaterialNegotiableMOQ: 1000 Pieces -
Clear Voice D12xH9mm External Drive Magnetic BuzzerNegotiableMOQ: 1000 Pieces
-
DC 12V 16 * 14mm Electronic Magnetic Passive Sound Transducers BuzzerNegotiableMOQ: 1000 Pieces
-
12V 12*9.5mm Magnetic Integrated Circuits Active Buzzer KWA1295B12NegotiableMOQ: 1000 Pieces
-
Good Quality Magnetic Voice Transducer 9.6mm 3v 5v 12v dc Active Circuit Magnetic BuzzerNegotiableMOQ: 1000 Pieces
Brand Name
Kingwei
Place of Origin
China
Model Number
KWA1275B12
Type
Buzzer

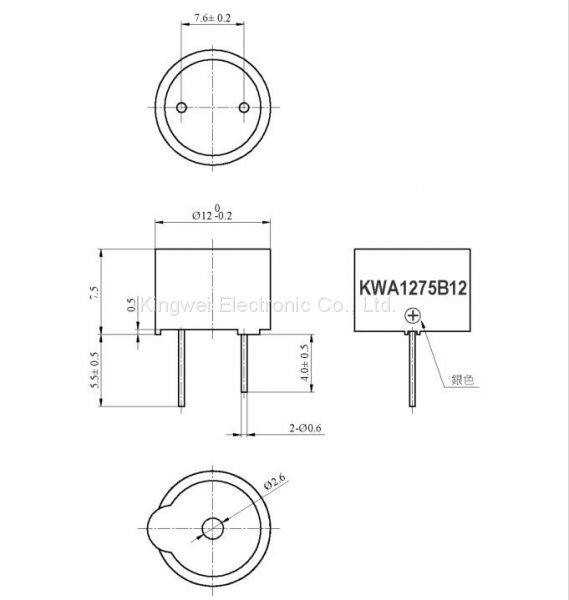

1、General
| Out-Diameter | 12mm |
| Height | 7.5mm |
| Weight | 2g |
| Operating Temperature Range | -20~+70ºC without loss of function |
| Store Temperature Range | -30~+80ºC without loss of function |
| Store Time | After being placed in a chamber with 40% R.H. at 25±3ºC, May preserve for 6 months. |
2、Electrical and Acoustic Characteristics
Test condition: 15~35ºC, 25%~85% RH, 860~1060mbar
| Items | Specification | |
| 1 | Rated Voltage | 12v |
| 2 | Operating Voltage | 8-15v |
| 3 | Max. Rated Current | 30mA/12VDC |
| 4 | Resonant Frequency | 2.3±0.5KHz |
| 5 | Min. Sound Pressure Level | 85dB/12Vp-p Square Wave/10cm |
| 6 | Tone Nature | Continuous |
| 7 | Case Material/Color | PBT/BLACK |
3、Product Overview
4、FAQ:
1）Is your parts new and original ?
Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .
2）What is your lead time ?
Answer: For in-stock product, we will send out after we receive your payment.
