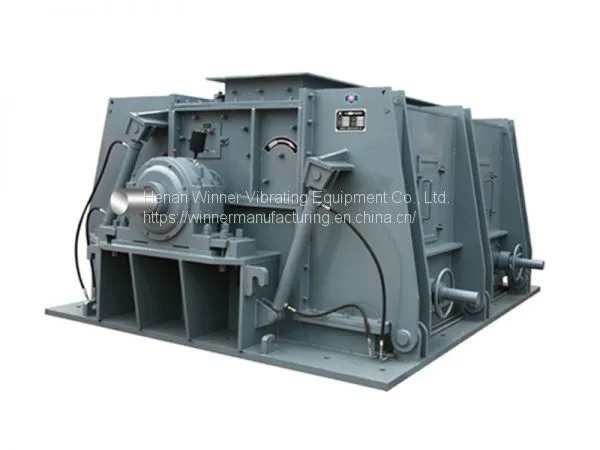

Ring hammer crusher for stone sand making
Introduction Overview：
PCH ring hammer crusher (also called coal crusher) is a new type of hammer crusherwhich developed with comprehensive domestic and foreign similarlyefficienttechnology.
Application：
1.Most suitable for a variety of brittle materials, such as coal, coal gangue, coke, shale, loose limestone, etc.
2.Widely used in coal, coke and other crushing.
3.Material compressive strength is no more than 100Mpa, surface moisture is no greater than 15%.
Advantages：
1.High crushing ratio, high production efficiency
2.Suitable for dry and wet form of the two materials broken.
3.Bar clearance can be adjusted according to user requirements,change the particle size,to meet the different needs of different users.
4.The machine has light weight, less power consumption, ring hammer wear-resisting, reliable use, installation and maintenance features.
Working principle:
Ring hammer crusher is a ring with a hammer impact rotor crusher, the material into the crusher, the first by the rotor with high-speed rotation of the impact of the ring and the impact of broken, broken material at the same time from the ring hammer Kinetic energy, high speed rushed to the broken plate. By the second broken, and then fell to the sieve plate, by the ring hammer shear, extrusion, grinding and the role of the collision between the material further broken and discharged through the screen. Can not break the debris into the metal collector, regular removal.
Technical parameter table：
Model |
Rotor diameter × length |
Rotor speed |
Dimensions |
Inlet size |
output |
Maximum feed size |
Grain size |
mm |
r/min |
mm× mm× mm |
mm× mm |
t/h |
mm |
mm |
|
PCH0404 |
400×400 |
970 |
1664×960×570 |
310×440 |
16～25 |
200 |
3～30 |
PCH0604 |
600×400 |
970 |
1984×1410×800 |
460×530 |
22～33 |
200 |
3～30 |
PCH0606 |
600×600 |
980 |
2241×1410×820 |
460×670 |
30～25 |
200 |
3～30 |
PCH0808 |
800×800 |
740 |
2801.5×1720×1090 |
470×828 |
75～105 |
200 |
3～30 |
PCH1010 |
1000×1000 |
740 |
3554×2000×1340 |
586×1040 |
150～300 |
300 |
3～30 |
PCH1016 |
1000× 1600 |
740 |
5350×2800×1395 |
446×1732 |
400～500 |
300 |
3～30 |
