Hammer crusher with best crushing effect
- 15 Set / Sets per Month
- Tianjin, Dalian,Shanghai,Kunshan,Guangzhou,Fuzhou,Lianyungang,etc.
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 30 days
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Brand Name: | WINNER | Place of Origin: | China | Model Number: | PG |
Type: | Hammer Crusher | Certification: | CE,ISO9001,ISO14001,OHSAS18001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 years | Weight: | 110-3500kg | Application: | mining, metallurgy, building materials, roads, railways, water conservancy,chemical and other industries. |
Condition: | New | Power(W): | 15-40kw | Motor Type: | AC Motor |
Capacity(t/h): | 0.86-30T/H |
Product Description

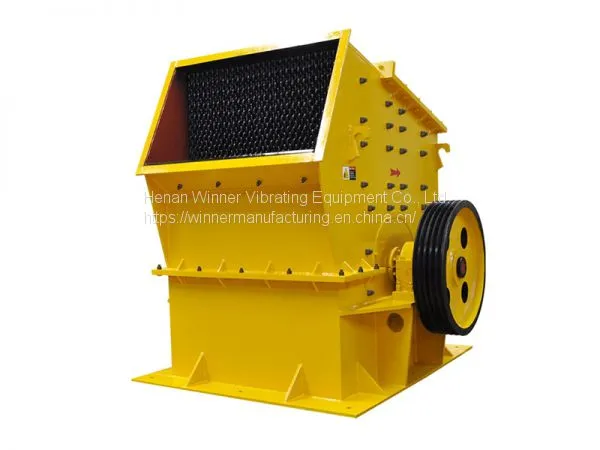

Hammer crusher with best crushing effect
Introduction Overview:
Hammer crusher for crushing all kinds of hard and abrasive materials. Its material compressive strength does not exceed 100MPa, moisture content is less than 15%. Broken material for coal, salt, chalk, plaster, brick and limestone.
Production capacity: 5-150t / h
Application:
Hammer crusher is suitable for cement, chemical, electric power, metallurgy, building materials, industrial refractory materials and other industries’ crushing medium hard materials,such as limestone, slag, coke, coal and other materials crushing, fine crushing.
Advantages:
1.Work hammer head adopts new casting technique,wear and impact resistance.
2.Its available to adjust the required granularity according to customer requirements.
3.The body adoptssealing structure, solved the dust pollution of the crushing workshop and the body ash leakage problem.
4.Less wearing parts,easy maintenance,is upgrading products.
5.Compact structure, beautiful appearance.
Hammer crusher operation and maintenance:
Installation of hammer crushing equipment usually has the following requirements:
(1) the mechanical elevation error should not exceed ± 0.5mm; center position error does not exceed ± 0.2mm.
(2) the bottom of the rack pad hardwood, the entire body should be maintained level, the level of error should not exceed ± 0.2mm.
(3) feet screw with two nuts fastening, to be running after the test is normal, should once again tighten the nut.
(4) The motor shaft must be concentric with the spindle axis of the machine. Elastic coupling skew and offset should be within the allowable deviation.
(5) symmetrical hammer shape and weight should be similar, the weight error should not be too large. Usually the difference between the total weight of a row of hammer and the total weight of the symmetrical row is not more than 30-40g.
(6) hammer and rotor assembly should be carried out after the static balance test, the rotor is required to stop after the natural rotation, in any position are not allowed to return 1/10 circle.
In the debugging process to pay attention to maintain the dynamic balance, if the machine in the operation of violent vibration, consider the phenomenon of dynamic imbalance, the need to adjust the rotor rotation axis, and its main inertia axis consistent. Installation is proper, the test run is normal, the machine can be put into production.
Technical parameter table:
Model | Electronic diameter | Roll length | Maximum granularity | The grain size | Roller speed | Productivity | Motor | Weight | |
mm | mm | mm | mm | r.p.m | t/h | Power | Speed | Kg | |
2PG 200×75 | 200 | 75 | 10 | 0-4 | 400 | 0.86 | 15 | 950 | 110 |
2PG 400×250 | 400 | 250 | 32 | 2-8 | 200 | 5-10 | 11 | 970 | 1300 |
20 | 0.5-5 | ||||||||
2PG 610×400 | 610 | 400 | 85 | 10-30 | 75 | 30 | 12-40 | 1000 | 3500 |
30 | 1-10 |
