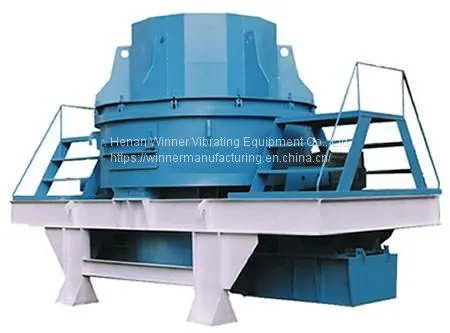

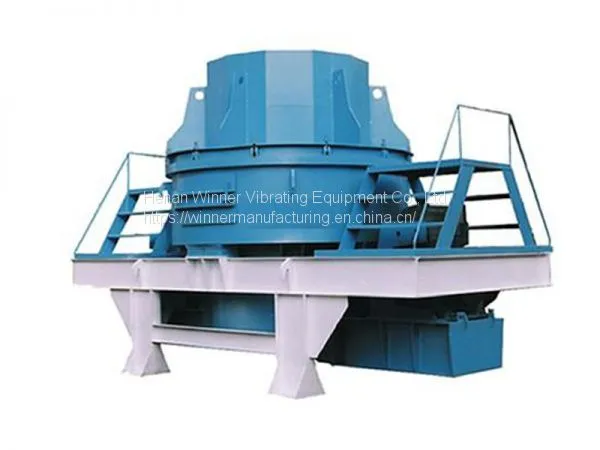

VSI Impact crusher for sand stone procuction line
Feeding size: ≤ 80mm
Production: 12-360 tons / hour
Introduction Overview：
Impact crusher for sand stone procuction line is a kind of high efficiency and low energy consumption with the international advanced level of crusher.Its performance plays an irreplaceable role in all kinds of ores and fine crushing equipment.
Material: river pebbles, granite, basalt, iron ore, limestone, calcite, quartz stone, diabase, coal, calcium carbide.
Advantages：
1.Simple and reasonable structure,self crushing,ultra-low cost of use.
2.Unique bearing mounting with advanced spindle design makes this machine feature heavy duty and high speed rotation.
3.It has finely, coarse grinding function.
4.High reliability,tight safety device to ensure equipment and personal safety.
5.Smooth operation,low noise,energy saving,high crushing efficiency;
6.Affected by the moisture content of the material is small,water content can reach about 8%.
7.Wear parts low loss,use high-quality wear-resistant materials,long service life.
8.Vortex chamber internal air circulation, dust pollution is small.
9.Installation is diverse,removable installation.
10. Impeller and vortex crushing cavity of the material from the lining to significantly reduce the cost of wear and maintenance work. Production process, the stone can form the protection of the bottom, the body without wear, durable.
11. Products were cube, bulk density, iron pollution.
Application areas:
1, river pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, corundum, talc, olivine, feldspar, fluorite, stone debris artificial sand.
2, building aggregate, road fabric, cushion material, asphalt concrete and cement concrete aggregate production.
3, the mining field of grinding before the crushing process, building materials, metallurgy, chemicals, mining, refractory materials, ceramics, cement, abrasive and other industries broken material.
4, high abrasive and secondary disintegration, thermal power, metallurgical industry in addition to sulfur, steel slag, construction waste and other environmental projects.
5, glass raw materials, quartz sand and other high-purity materials production.
6, the field of engineering water conservancy and hydropower, high-grade highways, highways, high-speed railway, passenger line, bridge, airport runway, municipal engineering, high-rise building sand production and stone shaping.
7, iron ore, copper ore, gold ore, wood ore, lead and zinc ore, tungsten ore, manganese ore and other special hard, hard and abrasive materials crushing and coarse grinding operations.
Technical parameter table：
Model |
Impeller speed（r/min） |
Optimum feed size（mm） |
Processing capacity（t/h） |
Power（kw） |
Dimensions（mm） |
PCL-600 |
2000-3000 |
30 |
12-30 |
2×30 |
2800×Φ1500×2030 |
PCL-750 |
1500-2500 |
35 |
25-55 |
2×45 |
3300×Φ1800×2440 |
PCL-900A |
1200-2000 |
40 |
55-100 |
2×55 |
3750×Φ2120×2660 |
PCL-1050 |
1000-1700 |
45 |
100-160 |
2×(90-110) |
4480×Φ2450×2906 |
PCL-1250 |
850-1450 |
45 |
160-300 |
2×(132-180) |
4563×Φ2650×3176 |
PCL-1350 |
800-1193 |
50 |
200-360 |
2×(180-220) |
5340×Φ2940×3650 |
