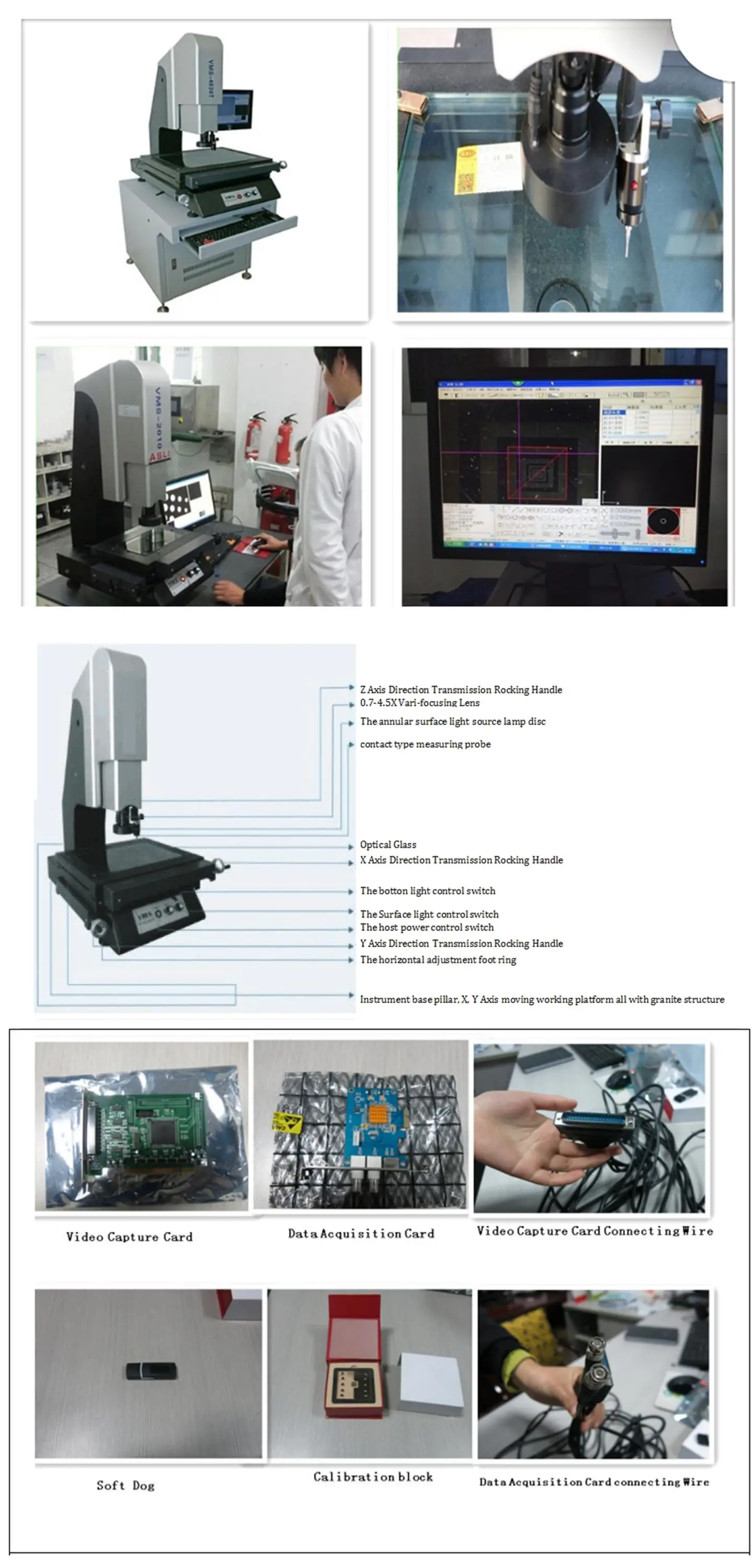

Big Range 2d Optical Video Measuring System
Big Range 2d Optical Video Measuring System Application:
2D Video Measuring System is widely used to measure the two coordinates in all application areas such as machinery, electronics, instruments, plastics, etc.
Big Range 2d Optical Video Measuring System Features:
1.With RS-232 interface, can be connected with computer, adopt specialized measuring software 2D can manage & output the graphics.
2.Optional print machine, different measurement and scanning system are available
3.Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point positioning function
4.Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.
5.The measuring data can be directly output into Word, Excel & AutoCAD
Big Range 2d Optical Video Measuring System Technical Parameters:
| Model | VMS-1510 | VMS-2010 | VMS-2515 | VMS-320 | VMS-4030 | |
| Work Table |
Metal Table Size(mm) | 354x228 | 404x228 | 450x280 | 500x330 | 606x466 |
| Glass Table Size (mm) | 210x160 | 260x160 | 306x196 | 350x280 | 450x350 | |
| Moving Stroke (mm) | 150x100 | 200x100 | 250x150 | 300x200 | 400x300 | |
| Weight (Kg) | 100 | 110 | 120 | 140 | 240 | |
| Dimension WxHxD (mm) | 540x850x560 | 760x900x600 | 970x940x670 | |||
| Image System |
Color 1/3''CCD Video Camera Zoom Lenses: 0.7~4.5× | |||||
| Magnification of Video:40~255× | ||||||
| Object Field: 7-1.1mm, LED surface lamp plate & LED incident illuminant, light intensity adjustable | ||||||
