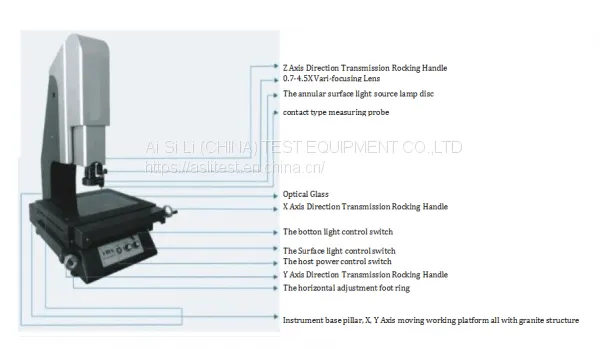

2D Video Measuring System
Application:
2D CNC Video Measuring Test Machine is widely used to measure the two coordinates in all application areas such as machinery, electronics, instruments, plastics, etc.
Technical Parameters:

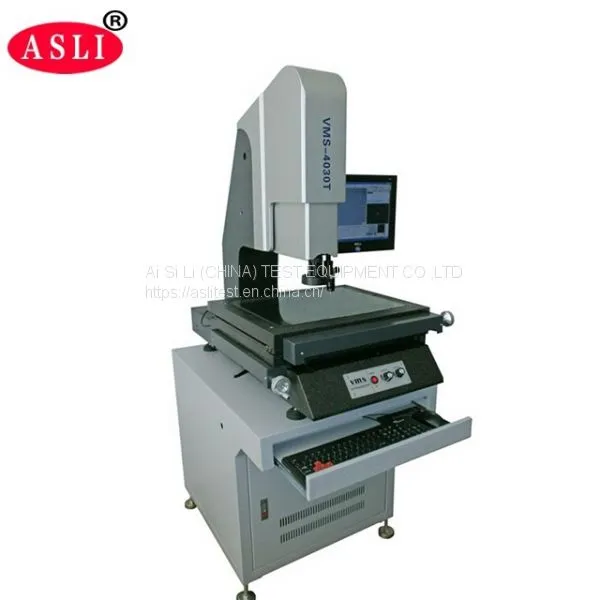

| Model | VMS-1510 | VMS-2010 | VMS-2515 | VMS-320 | VMS-4030 | ||||
| Work Table |
Metal Table Size(mm) | 354x228 | 404x228 | 450x280 | 500x330 | 606x466 | |||
| Glass Table Size (mm) | 210x160 | 260x160 | 306x196 | 350x280 | 450x350 | ||||
| Moving Stroke (mm) | 150x100 | 200x100 | 250x150 | 300x200 | 400x300 | ||||
| Weight (Kg) | 100 | 110 | 120 | 140 | 240 | ||||
| Dimension WxHxD (mm) | 540x850x560 | 760x900x600 | 970x940x670 | ||||||
| Image System |
Color 1/3’''CCD Video Camera Zoom Lenses: 0.7~4.5× | ||||||||
| Magnification of Video : 40~255× | |||||||||
| Object Field: 7-1.1mm, LEDsurface lamp plate & LED incident illuminant, light intensity adjustable | |||||||||
2D CNC Video Measuring Test Machine Features:
1. With RS-232 interface, can be connected with computer, adopt specialized measuring software 2D can manage & output the graphics.
2.Optional print machine, different measurement and scanning system are available
3.Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point positioning function
4.Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.
5.The measuring data can be directly output into Word, Excel & AutoCAD
Certificate of Test Chamber:
China official 3rd party calibration report
CE certiification
FAQ:
1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years exporting experience.
2. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
3. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
4.What's your main products?
Environmental chambers, temperature (humidity) chamber, ,ESS chamber, Walk in stability chamber,Vacuum oven,PCT /Hast chamber (Highly accelerated stress test chamber)
Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc.
Welcome our new and regular customers visit our factory, and any inquiries please feel free to contact us !
