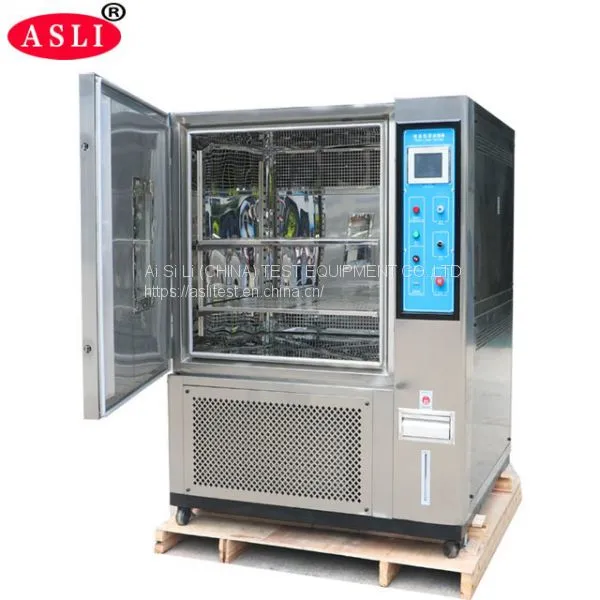

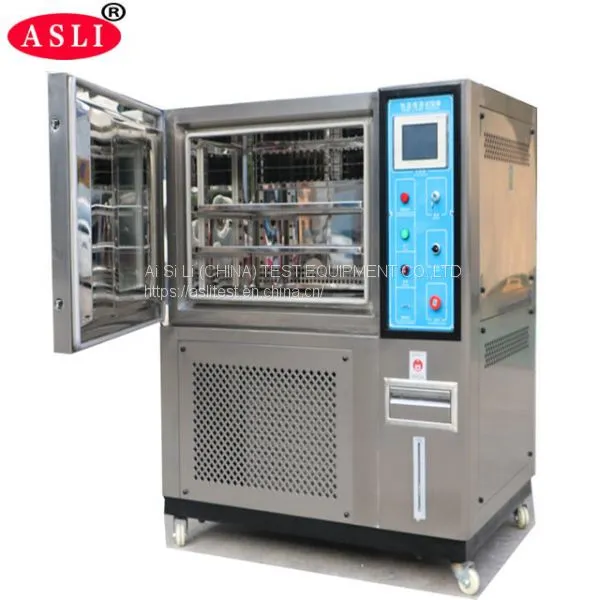

Programmable Constant Temperature and Humidity Test Chamber
Programmable Constant Temperature and Humidity Test Chamber Application:
High Low Temperature Humidity Environmental Circulation Test Chamber is also called environment testing machine, used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Programmable Constant Temperature and Humidity Test Chamber Technical Parameters:
| Model | TH-80(A~F) | TH-150(A~F) | TH-225(A~F) | TH-408(A~F) | TH-800(A~F) | TH-1000(A~F) | |
| Internal Dimension WxHxD (mm) |
400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000 | |
| External Dimension WxHxD (mm) | 950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450 | |
| Temperature Range | Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 150℃ |
||||||
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optiona , need Dehumidifier) | ||||||
|
Indication relolution/Distribution uniformity of temperature and humidity |
0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H. | ||||||
|
Control Accuracy of Temperature and Humidity |
±0.5℃; ±2.5% R.H. | ||||||
|
Temperature Rising/Falling Velocity |
Temperature rising approx. 0.1~3.0℃/min ; temperature falling approx. 0.1~1.0℃/min; ( Falling Min.1.5℃/min is optional) |
||||||
|
Inner and Outer Material |
Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated. |
||||||
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | ||||||
| Cooling System | Wind cooling or water cooling, (single segment compressor-40℃, double segment compressor -70℃) | ||||||
| Protection Devices |
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
||||||
|
Optional Accessories |
Inner door with operation hole , Recorder, Water Purifier, Dehumidifier | ||||||
| Compressor | French Tecumseh Brand, Germany Bizer Brand | ||||||
| Power | AC220V 1 phase 3 lines, 50/60HZ , AC380V 3 phase 5 lines , 50/60HZ | ||||||
|
Approx. Weight (Kg) |
150 | 180 | 250 | 320 | 400 | 450 | |
Certificate of Programmable Constant Temperature and Humidity Test Chamber:
China official 3rd party calibration report
CE certiification

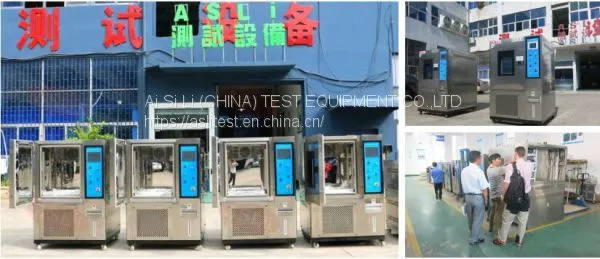

Welcome our new and regular customers visit our factory, and any inquiries please feel free to contact us !
