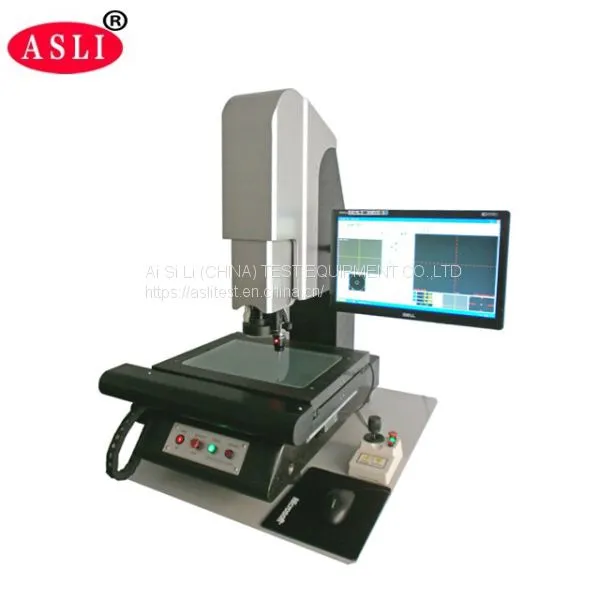

3d video measuring system
Application:
3D vision measurement system is designed to do three-dimensional work piece on the slope, round, ditch,columns ,ball, dimension, bland holes as well as the geometrical terms such as the distance between the elements and angles. And it is widely used in machinery,electronics, mobile fittings, home appliances, connector, machine fittings, precision fixture, plastic, hardware, circumjacent fields of computer and so on and other industries.
Technical Parameter:
| Model | SOV-4030 | SOV-3020 | SOV-2010 |
| Dimensions, WxHxD (mm) | 860x650x1120 | 700x500x900 | 570x370x790 |
| Zoom Multiple (17 inch screen) | 20x-120x, 30x-225x | ||
| CCD | Color, 1/3 inch，8000000 PX | ||
| X*Y*Z Stroke (mm) | 400x300x150 | 300x20x150 | 200x100x100 |
| Bench Dimensions(mm) | 600x450 | 500x350 | 350x270 |
| Load of Bench(Kg) | 30 | 25 | 30 |
| Optional Configuration | UK Probe | ||
| Weight (Kg) | 350 | 180 | 100 |
3D vision measurement system Features:
1. With RS-232 communication, it can be connected with computer, adopt specialized measuring software 2D,can manage & output the graphics.
2. Optional print machine, different measurement and scanning system are available
3. Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multipoint positioning function.
4. Flexible harmonious translation of X,Y,Z axles make the measurement more convenient and efficient.
