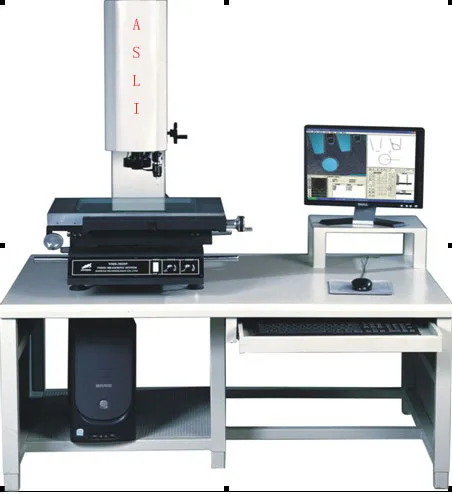

High quality 3d cnc video measuring system With Good Service Application:
3D Video Measuring System is designed to do three-dimensional work piece on the slope, round, ditch,columns,ball,dimension,bland holes as well as
the geometricalterms such as the distance between the elements and angles. And it is widely used in mechinery,electronics, mobile fittings,
home appliances, connector, machine fittings, precision fixture, plastic, hardware, circumjacentfields of computer and so on and other industries.
High quality 3d cnc video measuring system With Good Service Features:
1. With RS-232 interface, it can be connected with computer, adopt specialized measuringsoftware 2D,can manage & output the graphics.
2. Optional print machine, different measurement and scanning system are available
3. Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point positioning function
4. Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.
High quality 3d cnc video measuring system With Good Service Technical Parameters:
Model |
SOV-4030 |
SOV-3020 |
SOV-2010 |
Dimensions, WxHxD (mm) |
860x650x1120 |
700x500x900 |
570x370x790 |
Zoom Multiple (17 inch screen) |
20x-120x, 30x-225x |
||
CCD |
Color, 1/3 inch, 8000000 PX |
||
X*Y*Z Stroke (mm) |
400x300x150 |
300x20x150 |
200x100x100 |
Bench Dimensions(mm) |
600x450 |
500x350 |
350x270 |
Load of Bench(Kg) |
30 |
25 |
30 |
Optional Configuration |
UK Probe |
||
Weight (Kg) |
350 |
180 |
100 |
