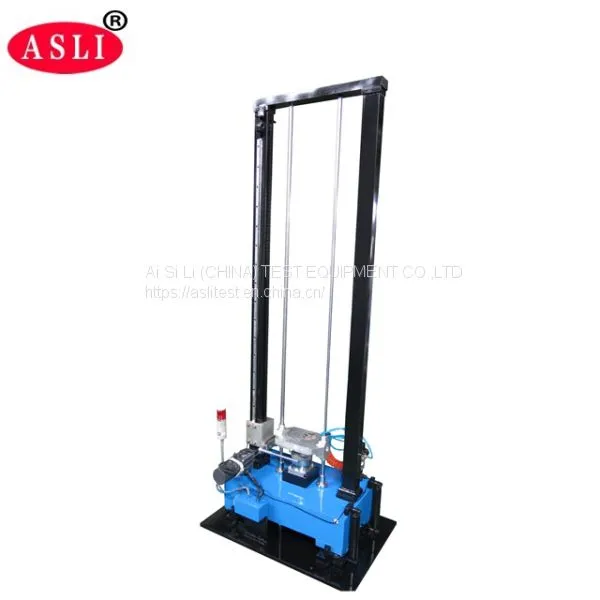

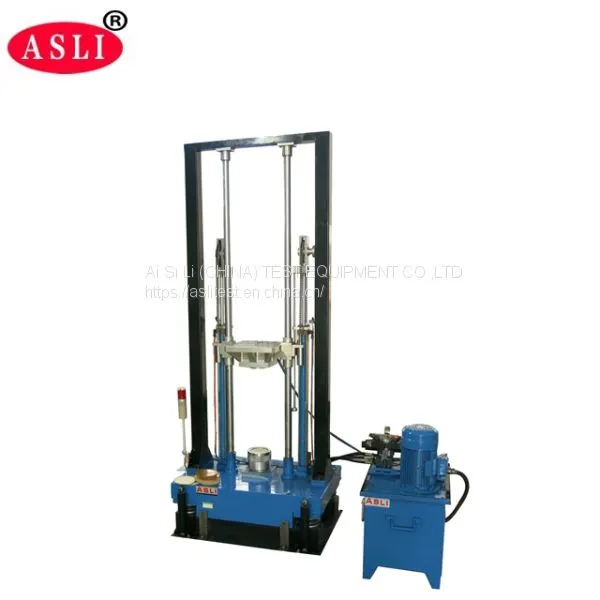

Acceleration Mechanical Shock Tester Meet IEC62133 Battery test Application:
Acceleration Mechanical Shock Tester is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
Acceleration Mechanical Shock Tester Meet IEC62133 Battery test Technical Parameters:
Model |
SS-5 |
SS-10 |
SS-25 |
SS-50 |
SS-100 |
SS-200 |
SS-400 |
|
|
Max. Load Capacity (Kg) |
5 |
10 |
25 |
50 |
100 |
200 |
400 |
|
Bench Size (mm) |
120×120 |
200×200 |
350×350 |
450×450 |
650×650 |
750 ×750 |
850x850 |
|
|
Acceleration of shock peak value (m/s2) |
Half Sine Wave |
150~15000 |
150~15000 |
150~15000 |
150~6000 |
150~6000 |
150~ 3500 |
150~1500 |
Trapezoid Wave |
300~1000 |
300~1000 |
300~1000 |
300~1000 |
300~1000 |
300~ 1000 |
300~500 |
|
Sawtooth Wave |
150~1000 |
150~1000 |
150~1000 |
150~1000 |
150~1000 |
150~ 1000 |
150~500 |
|
|
Pulse width |
Half Sine Wave |
0.5~18 |
0.6~18 |
0.8~25 |
1.5~30 |
1.5~30 |
2~30 |
6~30 |
Trapezoid Wave |
6~12 |
6~12 |
6~18 |
6~12 |
6~12 |
6~12 |
6~12 |
|
Sawtooth Wave |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
|
Drive Mode |
Mechanical drive |
Hydraulic drive |
||||||
|
External Dimension WxHxD (mm) |
800x2200 x900 |
800x2200 x900 |
850x2250 x950 |
1000x2600 x1300 |
1100x2700 x1400 |
1300x2700 x1600 |
1300x2700 x1650 |
|
WEIGHT (Kg) |
600 |
700 |
900 |
2600 |
3300 |
4000 |
4500 |
|
Hydraulic Oil |
No #46 hydraulic oil |
|||||||
Power |
AC380V, 3 ph 5 lines | |||||||
Acceleration Mechanical Shock Tester Meet IEC62133 Battery test Certification :
