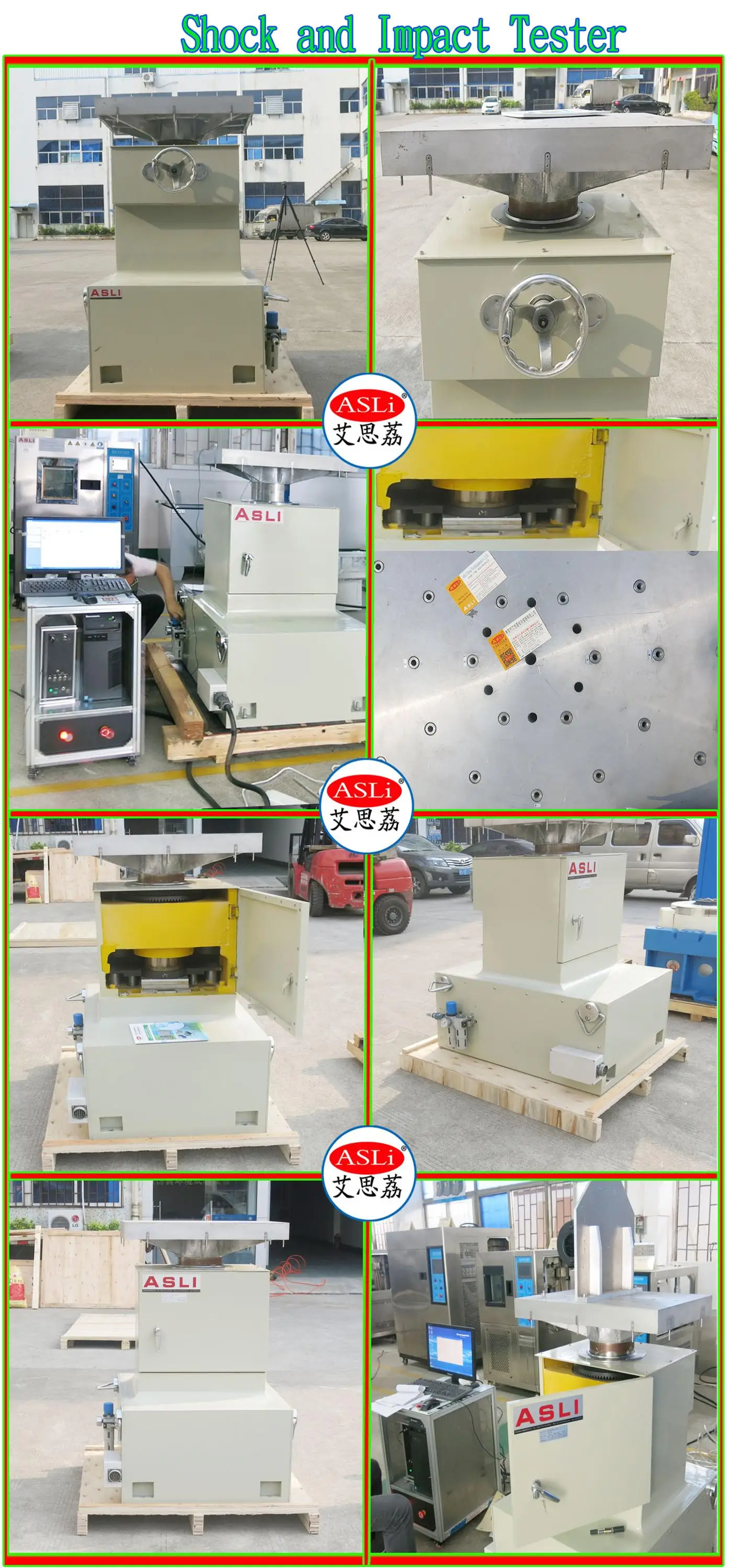

Laboratory Mechanical Shock And Impact Tester Environmental Test Chamber Application:
Mechanical Shock Tester is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
Laboratory Mechanical Shock And Impact Tester Environmental Test Chamber Features:
1. Working bench with perfect structure, good uniformity of bench's acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.
Laboratory Mechanical Shock And Impact Tester Environmental Test Chamber Technical Parameters:
Model |
MS-50 |
MS-100 |
MS-200 |
MS-500 |
MS-800 |
|
Max. Loading (kg) |
50 |
100 |
200 |
500 |
800 |
|
Peek Value Acceleration( m/s2) |
50~1200 |
50~1000 |
50~1000 |
50~500 |
50~500 |
|
Pulse Time (ms) |
20~3 |
20~3 |
20~3 |
20~3 |
20~3 |
|
Shock Frequency (times /min) |
10~80 |
10~80 |
10~80 |
10~80 |
10~80 |
|
Bench Size (mm) |
500×700 |
700×700 |
700×700 |
800×800 |
1000× 1000 |
|
Max.DroppedHeight (mm) |
60 |
60 |
60 |
60 |
60 |
|
Impact and Crush Wave |
Half Sine wave, ( trapezoidal wave, and the sawtooth wave, square wave optional) |
|||||
External Dimension W×H×D (mm) |
800×1300× 1000 |
800×1300× 1000 |
850×1350× 1100 |
1000×1300× 1900 |
1000×1300× 1900 |
|
Weight (Kg) |
1100 |
1250 |
2000 |
3000 |
3500 |
|
Protection Device |
Door protection, over-load protection, zero signal protection |
|||||
Power |
AC 220V, 50/60HZ; AC 380 V , 50/60HZ |
|||||
Environmental Conditions |
Temperature: 25℃±5.0℃ humidity: |
|||||
