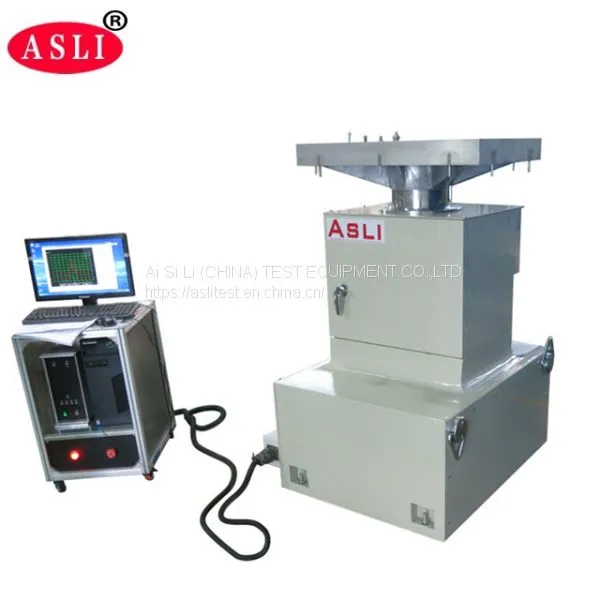

Shock DAQ Computer Control Half Sine Wave Mechanical Shock and Impact TesterApplication:
Mechanical Shock and Impact Tester is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
Shock Test bench
Shock and measure controller
Shock DAQ Computer Control Half Sine Wave Mechanical Shock and Impact Tester Technical Parameters:
| Model | MS-50 | MS-100 | MS-200 | MS-500 | MS-800 | |
| Load capacity (kg) | 50 | 100 | 200 | 500 | 800 | |
| pulse acceleration (m/s2) | 50~1200 | 50~1000 | 50~1000 | 50~500 | 50~500 | |
| Pulse Width (ms) | 20~3 | 20~3 | 20~3 | 20~3 | 20~3 | |
| Frequency (times /min) | 10~80 | 10~80 | 10~80 | 10~80 | 10~80 | |
| Table Size (mm) | 500X700 | 700X700 | 700X700 | 800X800 | 1000X 1000 | |
| Max. Dropped Height (mm) | 60 | 60 | 60 | 60 | 60 | |
| Pulse Type | Half Sine wave, (trapezoidal wave, and the sawtooth wave, square wave optional) | |||||
| External Dimension WXHXD (mm) |
800X1300X 1000 |
800X1300X 1000 |
850X1350X 1100 |
1000X1300X 1900 |
1000X1300X 1900 |
|
| Weight (Kg) | 1100 | 1250 | 2000 | 3000 | 3500 | |
| Protection Device | Door protection, over-load protection, zero signal protection | |||||
| Power | AC 220V(±10%), 1 ph 3 Lines ,50/60HZ; AC 380 V(±10%) ,3 ph 5 Lines,50/60HZ | |||||
| Environmental Conditions | Temperature: 25℃±5.0℃ humidity: | |||||
Shock DAQ Computer Control Half Sine Wave Mechanical Shock and Impact Tester Features:
1. Working bench with perfect structure, good uniformity of bench's acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.
