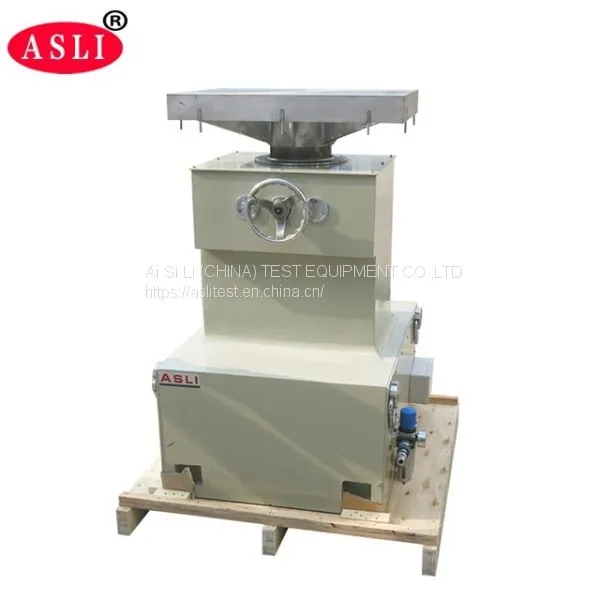

China Mechanical Shock Tester Catalog Of Mechanical Shock Tester For Electronic Components Application:
Mechanical Shock Tester is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
China Mechanical Shock Tester Catalog Of Mechanical Shock Tester For Electronic ComponentsTechnical Parameters:
Model |
MS-50 |
MS-100 |
MS-200 |
MS-500 |
MS-800 |
|
Max. Loading (kg) |
50 |
100 |
200 |
500 |
800 |
|
|
Peek Value Acceleration ( m/s2) |
50~1200 |
50~1000 |
50~1000 |
50~500 |
50~500 |
|
Pulse Time (ms) |
20~3 |
20~3 |
20~3 |
20~3 |
20~3 |
|
|
Shock Frequency (times /min) |
10~80 |
10~80 |
10~80 |
10~80 |
10~80 |
|
Bench Size (mm) |
500×700 |
700×700 |
700×700 |
800×800 |
1000× 1000 |
|
|
Max.Dropped Height (mm) |
60 |
60 |
60 |
60 |
60 |
|
|
Impact and Crush Wave |
Half Sine wave, ( trapezoidal wave, and the sawtooth wave, square wave optional) |
|||||
External Dimension W×H×D (mm) |
800×1300× 1000 |
800×1300× 1000 |
850×1350× 1100 |
1000×1300× 1900 |
1000×1300× 1900 |
|
Weight (Kg) |
1100 |
1250 |
2000 |
3000 |
3500 |
|
Protection Device |
Door protection, over-load protection, zero signal protection |
|||||
Power |
AC 220V, 1 ph 3 Lines , 50/60HZ; AC 380 V , 3 ph 5 Lines, 50/60HZ |
|||||
|
Environmental Conditions |
Temperature: 25℃±5.0℃ humidity: |
|||||
