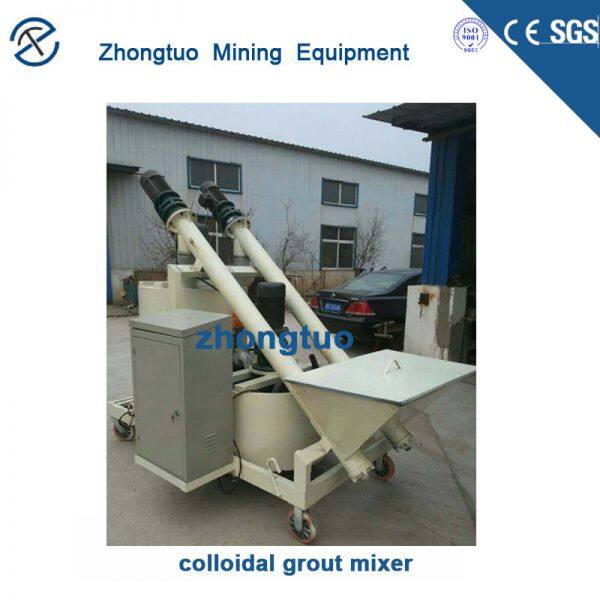

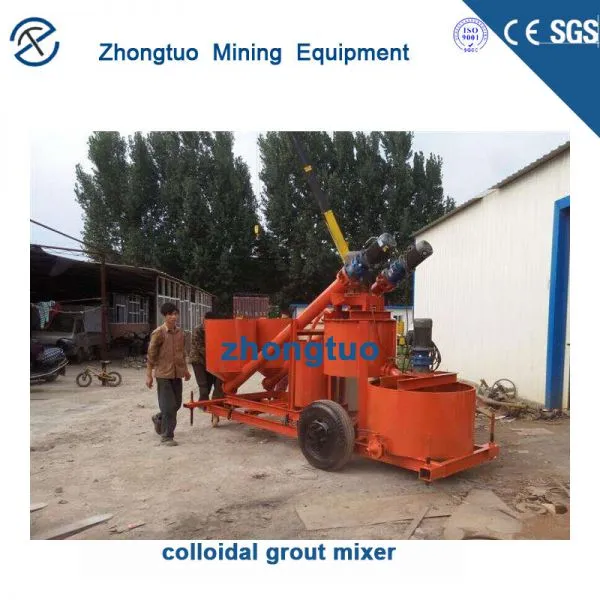

Description of colloidal grout mixer:
The cart is designed for mobile, mainly by the automatic feeding system, automatic weighing system, microcomputer automatic control system, high and low speed mixing system, water supply system and walking system and other components. The equipment can be stirred up to a maximum of 350 kg of slurry, stirring 4000 to 7000 kg of slurry per hour (manual control). Also equipped with low-speed mixing tank, can accommodate high-speed mixing tank has been stirring to complete the slurry. High-speed low-speed mixing bucket with, can be achieved to the grouting equipment uninterrupted feeding.
1, fully automatic operation, the use of materials and water only set the individual weight, the trolley can automatically weigh, control the weight of the Sheung Shui and mixing time. After the high-speed mixing is completed, open the discharge valve, the slurry into the low-speed mixing tank, and then close the high-speed mixing tank discharge valve, the next high-speed mixing barrel feeding material.
2, high-speed mixing, the trolley high-speed mixing tank rated speed of 1000 r / min, high-speed mixing material and water can be fully compatible. The working procedure is: first automatic Sheung Shui, and then high-speed mixing bucket automatically run and then add grouting agent, cement, continue to stir for 3 minutes, you can be discharged into the barrel with the mixing function.
3, low-speed storage mixing tank anti-precipitation design, the cart with a large capacity storage barrels, can accommodate high-speed mixing barrel has been completed mixing slurry to meet the large flow of grouting equipment for the uninterrupted supply. And with low-speed mixing function, which can effectively prevent the precipitation of mortar. automatic weighing intelligent grouting trolley
4, drag the frame system, the trolley mounted on the mobile frame, can be easily used to move other motor vehicles traction.
5, optional continuous screw grouting system system for the railway prestress is the construction, the user can be optional matching screw grouting equipment.

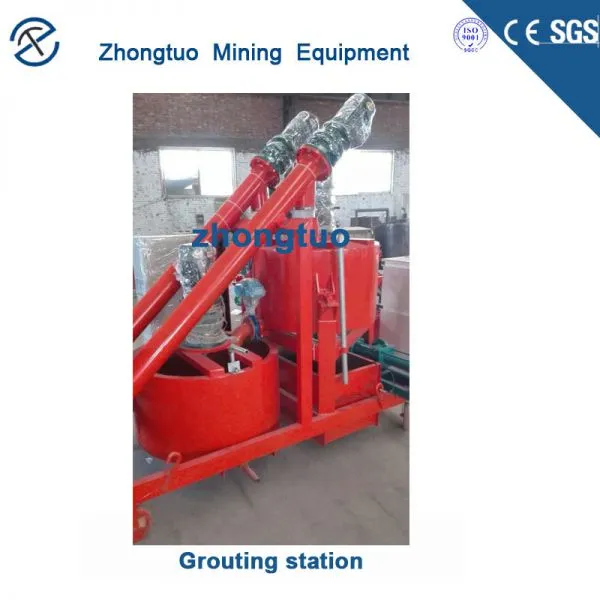

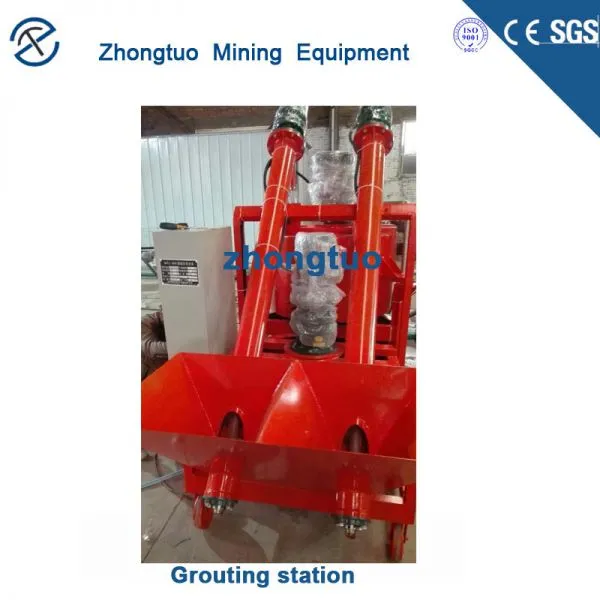

Characteristics of Grouting station:
(1) automatic operation
Use only setting powder and water ratio and time of stirring, the Compact Grout Plants Station will automatically control water and on powder and stirring time, and mixing is completed automatically open the discharge valve, the cement slurry after high speed stirring into the low-speed storage tank for standby. The automatic operation can completely avoid the influence of manual operation on the mixing process, and ensure the mixing quality.
(2) high speed mixing.
High speed stirring can make powder and water fully stir. The speed of the high-speed mixing drum of the car is as high as 1000 rpm, which is 10-20 times as much as that of other mixers.
(3) low speed storage and anti freezing.
The car is equipped with a larger capacity of low speed mixing drum, can be 2-3 times after high-speed mixing of cement slurry, to meet the needs of large capacity use.
(4) walking system with its own.
All the equipment of the trolley is mounted on a single axle frame, which can be easily used by other vehicles to be towed to the place of use, and the whole machine is easy to move
The automatic grouting trolley equipment, grouting equipment grouting equipment structure is novel, with high production efficiency, good mixing quality, beautiful appearance and so on.
Working principle of grout mixer machine:
