Description of Mono Strand Pulling Jack:

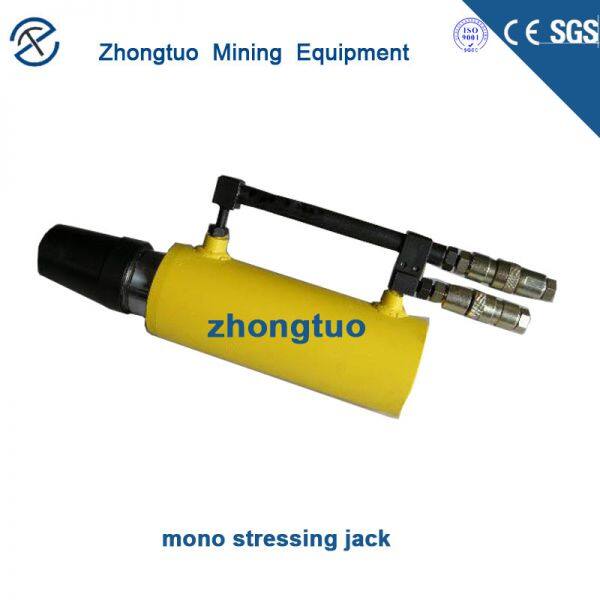

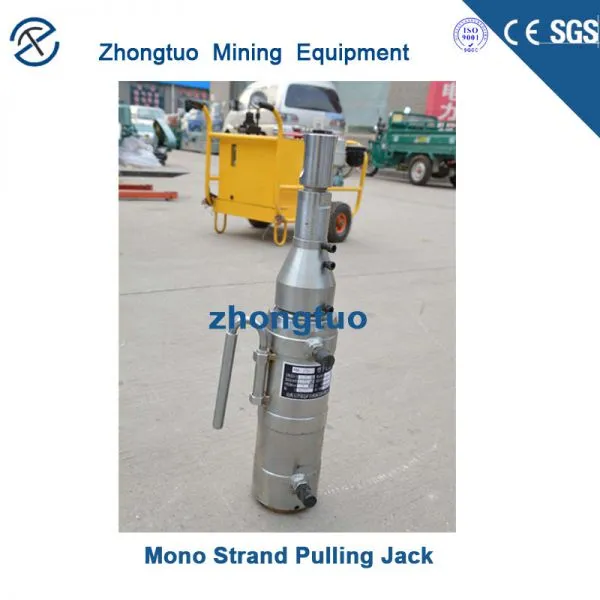

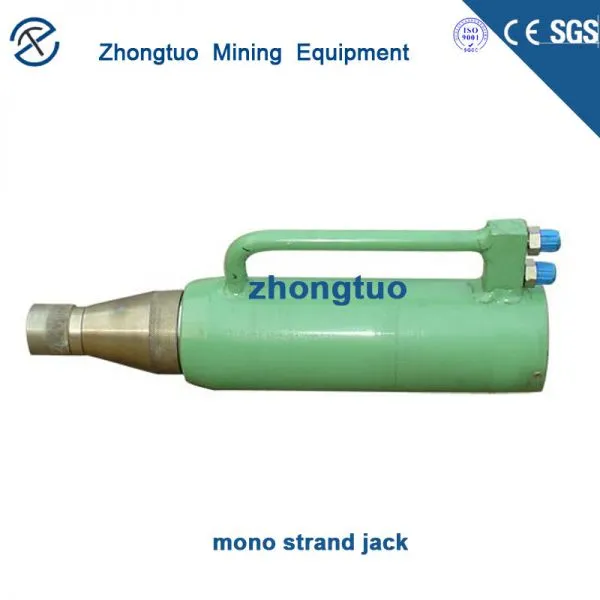

Prestressed Mono-Strand Pulling Jack for PC Strand
1. Model: QYC270(27 tons), QYC240(24 tons).
2. Capacity: 24 tons and 27 tons, Tension Journey: 200mm, Tension Cylinnder Area: 4418mm², Weight: 24kg, Size: 108x510mm.
3. Usage: For stressing single strand, such as unbonded monostrand anchor system and flat anchor system.
4. For PC Strand Diameter: 9.53mm, 12.7mm, 15.24mm, for PC Steel Wire Diameter: 5mm, 7mm, 9mm.
5. Accessories: Removing Anchor Device, Limited Board, Seal Kits, Spare Wedges.
YCWB series of Monostrand Hydraulic Jack is my company based on YCWE series jack on the structure, the fourth generation of new lightweight Jack size is further improved and optimized after the successful launch of the. It is a replacement product of YCWE series jack with small volume, light weight, good sealing performance, high strength, high reliability and versatility.
It is widely used in post tensioning construction. Different accessories are used, which can pull OLM clip group anchor and various types of clip group anchor, DM upsetting anchor, LZM cold cast anchor and so on.

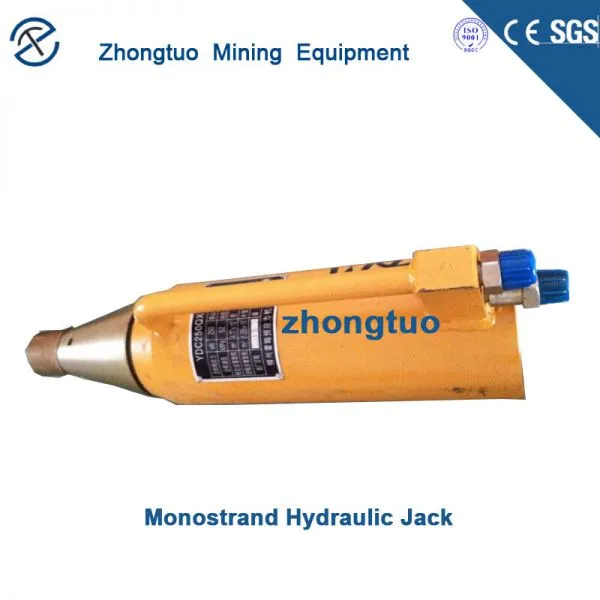

YCWB series Mono Strand Pulling Jack.YDC250QX type jack is a Mono Strand Pulling Jack for OLM15, OLM13 single bonded tendon tensioning construction, but also the OLM anchorage system,
It is widely used in pre tensioned and post tensioning prestressed concrete structures, bridges, rock and soil anchorage projects, especially suitable for high altitude operation and easy to carry.
Applications mono stressing jack:
1). For Buildings: Housing, Commercial Buildings, High Rise Buildings.
2). For Municipal Engineering: Railway, Highway, Over Head Fast Speed Way, Metro Way, High-speed Railway, etc.
3). For Projects: Mining, Piling, Foundation, Slope and Rock Reinforcement, Hydropower Station, Anchoring Engineers, Water Conservancy Project, Oil or Gas Tank, etc.
