Introduction of post tension anchor:

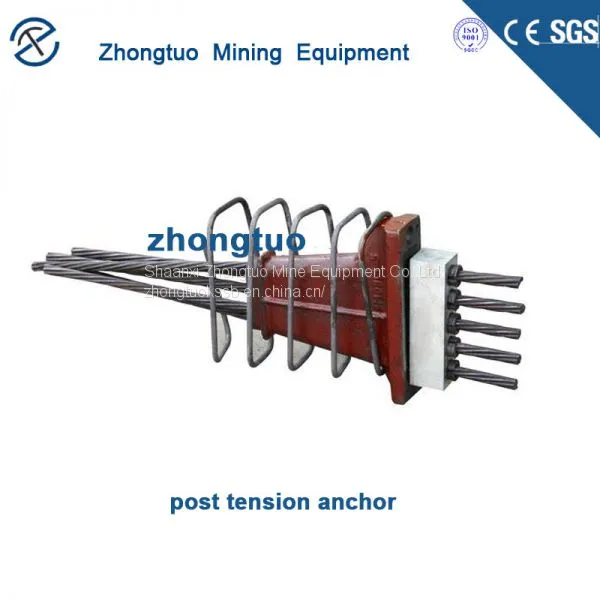

Multi strands anchor system are composed of anchor block(anchor head), wedges, anchor bearing plate, spiral reinforcing rings. It can used to lock the steel strand wires on/under classes of 2000Mpa standard strength,which is usually in diameters of 12.7mm /12.9mm/15.2mm/15.7mm.
It has been verified by pratice that various type of YM anchor also can be used for the different kinds of strand wires produced according to ASTM/BS/JIS/JIG/AS and other international standards respectively only if its technical parameters shall mary the related detail materials.

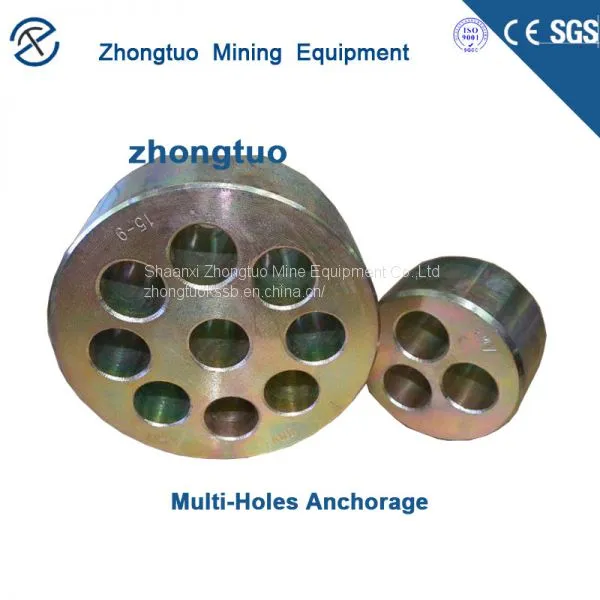

1). Type: Single-hole, Multi-hole; Circular, Flat.
2). Parts: Anchor Ring/Plate, Wedge, Base Plate etc.
3). Have a high anchor efficiency and very good performance.
4). We can manufacture all kinds of multi-Holes Anchorage and prestressed equipment according to your requirement and drawings.
Application area of post tension anchor:
Highway bridge, railway bridge, City Interchange, city rail, high-rise building, water conservancy and hydropower dams, ports, rock slope, foundation reinforcement, anchorage tunnel roof top anchor, prestressed grid, large buildings, subway, warehouse building, tower building, heavy lifting, pushing, pushing the intermittent synovial tunnel, and large container ship, sleeper, replacement of bridges and buildings, bridge bearing reinforcement, reinforcement engineering, and antimagnetic Anticorrosion Engineering (fiber anchor), carbon fiber reinforcement, pre tensioned prestressed beam construction, engineering, cable and suspension in vitro.
Construction technology and characteristics of post tensioned anchors:
Post tensioning method refers to: first pouring cement concrete, after reaching 75% of the design strength, and then stretching the prestressed steel to form the construction method of prestressed concrete member.

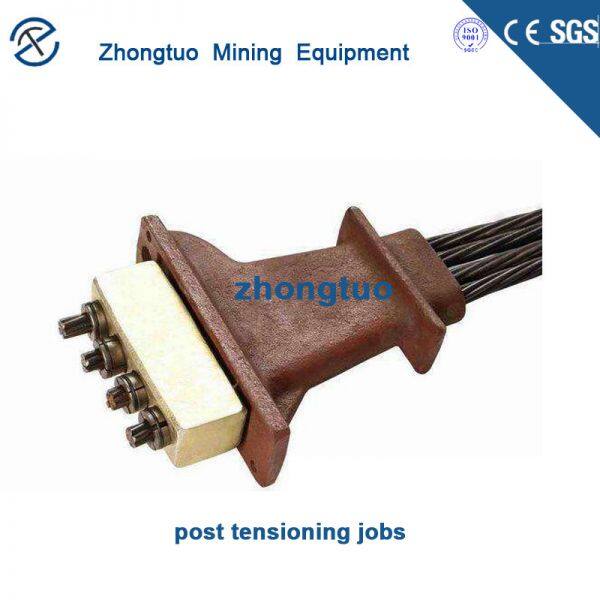

Product data for flat anchor of post tensioning jobs:
Model | flat anchor plate | flat bellows | flat base plate | flat spiral spring | |||||||
A | B | C | D | E | F | L | G | H | n | t | |
BM15(13)-2 | 80 | 46 | 52 | 22 | 160 | 70 | 140 | 160 | 100 | 5 | 45 |
BM15(13)-3 | 115 | 46 | 65 | 22 | 180 | 70 | 150 | 180 | 100 | 5 | 45 |
BM15(13)-4 | 150 | 46 | 74 | 22 | 220 | 80 | 210 | 220 | 100 | 5 | 45 |
BM15(13)-5 | 185 | 46 | 90 | 22 | 260 | 80 | 270 | 260 | 100 | 5 | 45 |
