Thermocouple Cable for Temperature Sensors
1. Introduction:
Thermocouple wire is usually used to connect thermocouple and display-controled
meters in order to lower the inaccuracy caused by temperature change on the
connections.
2. Construction:
Conductor: original thermocoupole alloy material, in solid wire or strand wires
Insulation Layer:
fiberglass (ambient temperature range 0-300℃)
PVC (ambient temperature range 0-105℃)
Telflon (ambient temperature range 0-350℃)
Silicone rubber (ambient temperature range 0-180℃)
Jacket layer materials: fiberglass, PVC, teflon, silicone rubber
Galvanized layer: stainless steel, tinned brass
3. Standard: conforms to IEC584 standard.

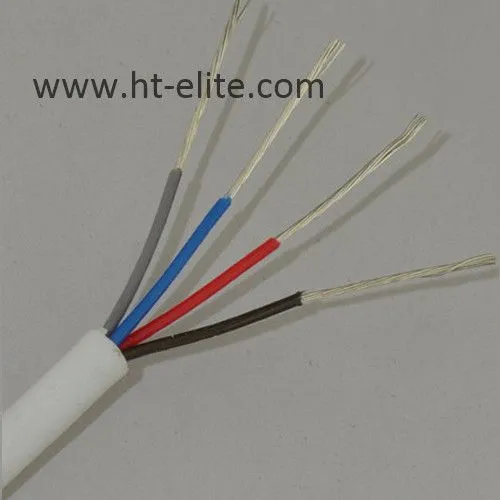

PVC Thermocouple Wire
Conductors
Wire Sizes(mm) |
Section(mm²) |
AWG |
2x1/0.2 |
Approx.0.03 |
32 |
2x1/0.5 |
Approx.0.20 |
24 |
2x1/0.65 |
Approx.0.33 |
22 |
2x1/0.8 |
Approx.0.50 |
20 |
2x7/0.2 |
Approx.0.22 |
24 |
2x7/0.3 |
Approx.0.50 |
20 |
2x6/0.32 |
Approx.0.48 |
20 |
Color code:
lANSI: American standard
lDIN: Germany standard
lBS:Britain standard
lNFC: France Standard
lJIS: Japan Standard
lIEC:IEC standard
Type Available: K, J, E, T, N, S
*Constructure: PVC + PVC ( PVC + PVC )
lConductors are PVC insulated
lOverall PVC jacket
lMax. Environment temperature : 105℃
*Constructure: PVC + Stainless Steel + PVC ( PVC + SSB+ PVC )
lConductors are PVC insulated
lStainless steel braided for shieding in the middle
lOverall PVC jacket
lMax. Environment temperature : 105℃
