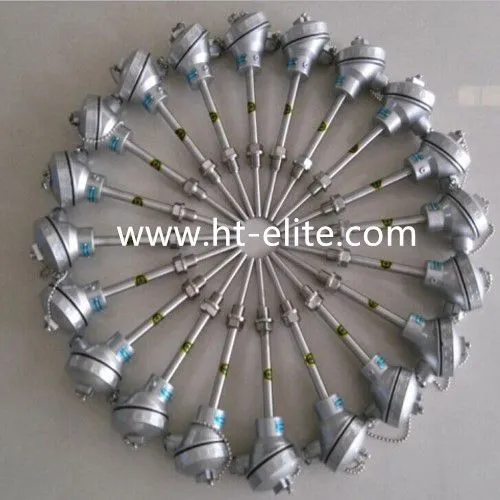

Thermocouple Connection Head with Terminal Block for Temperature Sensors
Introduction
Thermocouple head is widely userd in the thermocouple and RTD assembly.
It can be made of aluminium, stainless steel, bakelite or iron.
The main determining factors of what type thermocouple needs to be used in a
application is temperature, environment, response time and accuracy. The junction
of the thermocouple can be grounded, ungrounded or exposed. The thermocouple
junction may be of many different styles, from tube type to a washer
configuration.
Product use: for gas cookers, gas oven, outdoor heaters, volumetric gas water
heaters and remove protection device
3. Parameter.
Material Alloy-Aluminum
Protection Tube Entry PF1/2", PF3/4", NPT1/2", NPT3/4", BSP1/2", BSP3/4", M20×1.5
Extension Wire Entry PF1/2", PF3/4", NPT1/2", NPT3/4", BSP1/2", BSP3/4", M20×1.5
Material of Terminal Block: Ceramic, Bakelite
Form of Terminal Block
2P-C, 3P-C, 4P-C, 6P-C
2P-B, 3P-B, 4P-B, 6P-B
Available Color: Silvery, Yellow, Red, Blue, Purple, Black
We also have other model,pls see the below:
Model: KNE, KSE, KNC, KSC, KD, KB, KNA, DANA, DAAD, NAA, MAA, TS, TL, KG
Head material: ALUMINUM, SS304, SS316
Terminal block: 2P, 3P, 4P, 6P,8P
Terminal block material: bakelite or ceramic .
THERMOCOUPLE SENSOR HEAD KNE TERMINAL BLOCK
Insulation material:
1,Conductor insulated (PVC, Fiberglass, Teflon)
2,Jacket / Overall insulated (PVC, Fiberglass, Teflon)
3, Shield / Overbraid (Stainless steel or tinned copper)
Product Name: Thermocouple Head KNE
Package: thermocouplr heads-50pcs/ctn,
terminal blocks-250pcs/ctn
Form of terminal block: 2 poles, 3 poles, 4 poles, 6 poles
Weight: 274g
IP code: IP65 of IEC 529
