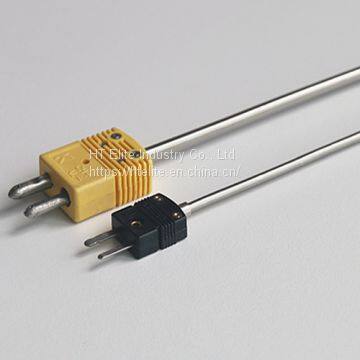

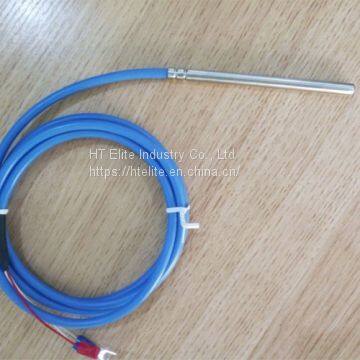

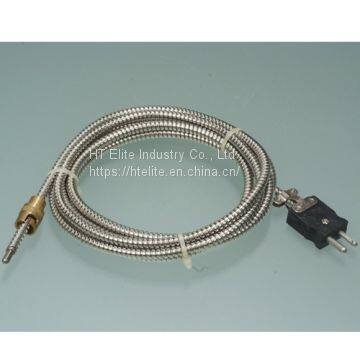

Help CenterThermocouple Probe K E J B R S Temperature Sensor
Related Products
Thermocouple Probe With Connection Head
Thermocouple Probe With Connection Head is typically applied for in an industrial environment to help protect the probe from harsh conditions, enable the continous process. A ceramic or metal thermowell can also be utilized to offer greater protection for the sensor portion of the assembly.
Connection Head:
lStandard Aluminum
lCast Iron/ Aluminum
l316 Stainless Steel
lExplosion Proof 316 Stainless Steel
lExplosion Proof Aluminum
Sheath Materials:
l 304 Stainless Steel
l 316 Stainless Steel
l Inconel 600
MEASURING RANGE AND ACCURACY:
|
Conductor material |
Calibration |
Accuracy |
|||
ClassⅠ |
ClassⅡ |
||||
Accuracy |
Temperature range( °C ) |
Accuracy |
Temperature range( °C ) |
||
NiCr-NiSi |
K |
±1.5°C Or ±0.4%|t| |
-40-1000 |
±2.5°C or ±0.75%|t| |
-40-1000 |
NiCr Si-NiSi |
N |
-40-1100 |
-40-1200 |
||
NiCr-Konstantan |
E |
-40-800 |
-40-800 |
||
Fe-Konstantan |
J |
-40-750 |
-40-750 |
||
Cu-Konstantan |
T |
±0.5°C or ±0.4%|t| |
-40-350 |
±1°C or 0.75%|t| |
-40-350 |
PtRh10-Pt |
S |
±1°C or ±[1+ ( t-1100 ) × 0.003] |
0-1600 |
±1.5°C Or ±0.25%|t| |
0-1400 |
PtRh13-Pt |
R |
0-1600 |
|||
PtRh30-PtRh6 |
B |
—— |
—— |
600-1700 |
|
Mounting & Fixing
1. Without fixing device
2. Fixed thread
3. Movable flange
4. Fixed flange
5. Right-angle movable flange
6. Fixed thread in wimble shape protection tube
Measured Junctions:
Grounded |
1 Rapid response 2 No suitable in case with interference |
Ungrounded |
1 It responses more slowly than that of the case-connected type. 2 Long service life 3 Resistance to electric interference |
Exposed |
1 Rapid response 2 Suitable to measure the temperature of gas 3 Poor mechanical strength in contact with other measuring structures |

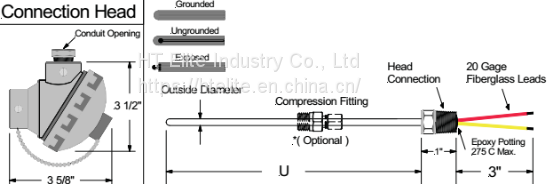

Diagram for example:
Compressed Fitting Mounting Style Thermocouple
