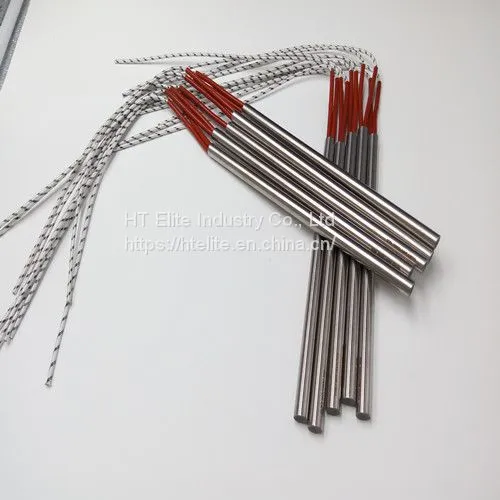

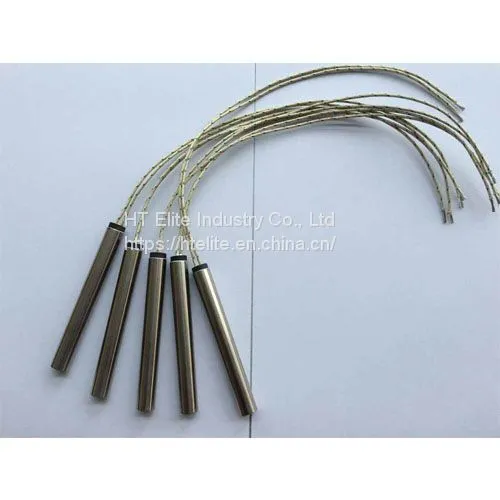

Electric Cartridge Heater with Thermocouple: High Watt Density
1. Working Principle
Electric cartridge heater, also known as single-end tubular heater, one end can heat, another end is cold end. It is made of a metal tube put into the resistance alloy wire as the heating materials, the alloy wire is filled with good insulation high purity magnesium oxide as filler, the product has a big power, high thermal efficiency, fast heat dissipation characteristics.
2. Characteristics
USA imported MgO, it can ensure the heating uniformity
Japan resistance wire, good heating performance.
Alloy sheath for high corrosion resistance.
Water-proof and moisture-proof: IP65.
Distributed wattage cartridge heaters are available
Split cartridge Heaters are available.
3. Parameter
Resistance heating wire |
NiCr 80/20 wire |
Sheath |
stainless steel 304,321,316, Incoloy 800, Incoloy 840 |
Maximum temperature |
800 degree Celsius |
Wattage Tolerance |
+5%, -10% |
Resistance tolerance |
+10%, -5% |
Voltages available |
380V,240V, 220V,110V,36V,24V or 12V |
Length tolerance |
±1 mm |
Diameter tolerance |
-0.02mm |
Standard Cold Zone |
5-10mm |
Delivery time |
7-10 working days |
Insulation resistance (cold) |
≥ 500 MΩ |
Maximum leakage current (cold) |
≤ 0.5 mA |
Thermocouple Location |
type J |
type K | |
4. Application
· Hot runner systems - Heating of manifolds
· Packaging industry - Heating of hot stamps
· Laboratories - Heating of analytical equipment
· Telecommunications: Deicing, Enclosure Heater
· Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
· Food Service: Steamers, Dish Washers,
· Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
· Injection moulding - Internal heating of nozzles
· Packaging industry - Heating of cutting bars
· Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
