Press in Brass Coil Heater

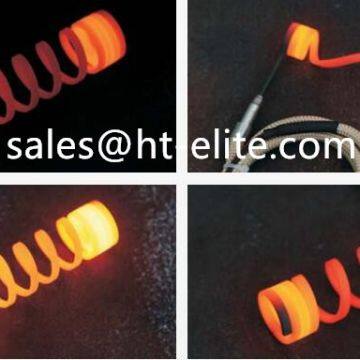

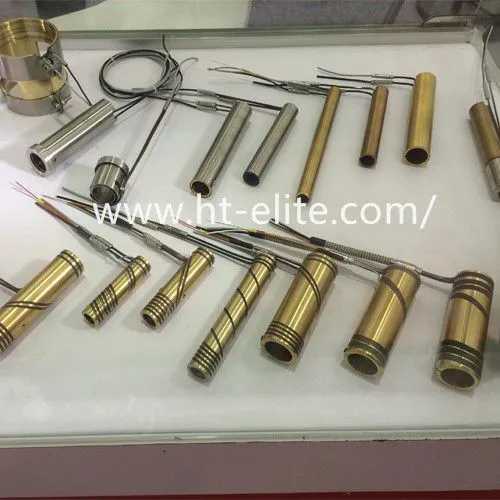

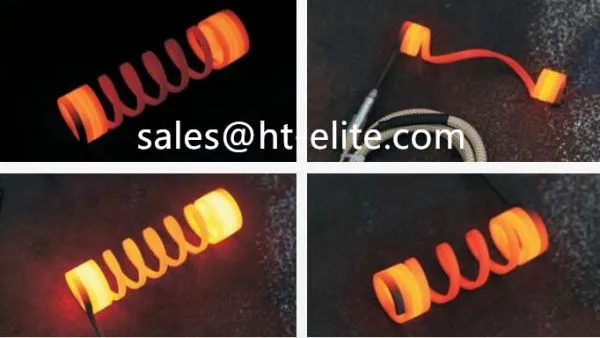

Press in brass coil heater, the coil heater is designed to beset in the brass
sheating, can eliminate known problems associated with the casting process.

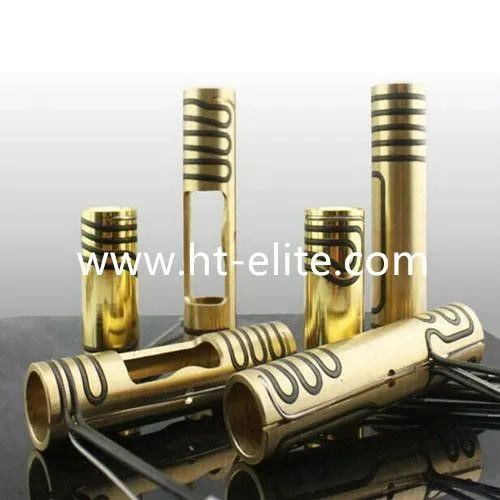

The machined path in the brass for the heater enables exact repeatability of heat
profile. By never exposing the coil heater to molten brass there are no risks of
shifted heater coils, or destruction of the thermocouple junction.
Flexible design options include internal, external “wound in” or external
slotted type J or type K thermocouples.
For OEM application, HT-Elite can customize the brass sheathing upon request.
Technical Parameter
Heater Sheath: CrNi Steel
High Voltage Stability: 800VAC
Insulation Resistance: >= 5M ohm at 500 VDC (Cold)
Wattage Tolerance: +/- 2%, +/- 4%, or +/-10%
Maximum Voltage: 230V
Leakage Current:
Advantage:
1. Has quick heat dissipation, high insulation, greatly extend the service life of
heater

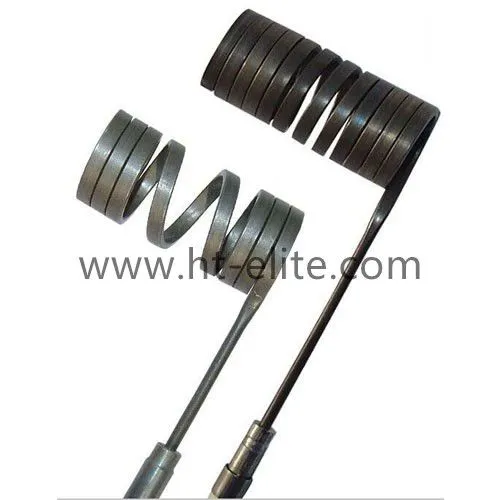

2. Can be built with a Micro, Mini, Flat, Low profile, or Round Nexthermal Coil
Heater.
3. Safety in use
4. Faster responding heater due to eliminated air pockets than cast in brass
5. Profile and heater orientation precisely repeatable
6. Thermocouple not exposed to molten brass temperatures;
7. Improved durability
Potential for designing thin walled brass heaters to minimize OD impact
Faster responding heater due to eliminated air pockets than cast in brass
Application
1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.
