Series FTY-EX Explosion Proof Type Vacuum Turbine Lube Oil Purifier

Series FTY-EX Explosion Proof Type Vacuum Turbine Lube Oil Purifier thumbnail-1
Series FTY-EX Explosion Proof Type Vacuum Turbine Lube Oil Purifier thumbnail-2
Series FTY-EX Explosion Proof Type Vacuum Turbine Lube Oil Purifier photo-1

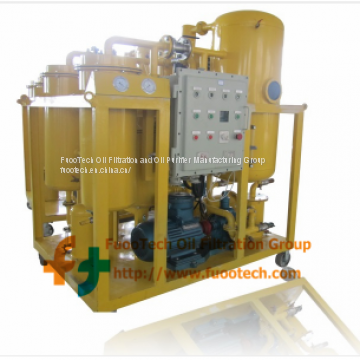

Series FTY-EX Explosion Proof Type Vacuum Turbine Lube Oil Purifier photo-2
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Certification:
CE, ISO, WSF
After-sales Service Provided:
Engineers available to service machinery overseas
Weight:
1
Contact Supplier Request Quote Chat Now
FuooTech Oil Filtration And Oil Purifier Manufacturing Group
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, Guangzhou, any other ports in China
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE, ISO, WSF
After-sales Service Provided Engineers available to service machinery overseas
Weight 1
 Series FTY-EX Explosion proof type vacuum turbine lube oil purifier, designed based on Series FTY, which is specially designed for purifying various unqualified turbine oil (such as ISO – VG – 46, 32, 68, etc.) from steam turbine system, gas turbine system & Fans, especially for serious emulsion turbine oil, it can quickly and efficiently break emulsification, separate water, gas, particles from oil.  So that makes sure quality of treated oil to achieve new oil's standard, ensure whole turbine system work safely.

Series FTY-EX Explosion proof type vacuum turbine lube oil purifier can satisfy the requirement of working in inflammable or explosive environment. The heating system, electronic control system, motors and solenoid valves are equipped with ExdⅡ BT4 or ExdⅡCT4 grade for various dangerous area needs.

 This equipment use a special polymer materials as filter medium combined with vacuum separating technology to break emulsification, dewater, degas, remove acid and particles, make the badly turbid turbine oil becomes clean.  Series FTY-EX turbine lube oil purifier is a perfect turbine oil purifier for live line work especially at dangerous area; also it can purify low viscosity hydraulic oil and lube oil.
 Oil Result after Purification
Moisture   (Water Content)
≤ 80 PPM
Gas Content
≤0.1%
Filtering   Accuracy
≤ 5 micron
Demulsification   Value
≤12 min (GB/F 7305)
Cleanliness
≤NAS 1638 Grade 6
features

  1. Designed for working at inflammable or explosive environment.

  2. Special polymer materials as filter medium with the functions of broken emulsification thoroughly, dewatering, removing particles

  3. Duplex 3D Stereo-evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

  4. With distinctive removing impurities technique filtering through double FH trapezoidal network and absorbing by high polymer material, this machine can make the ß3 equal or surpass 200 and make the cleanness lower grade 6(NAS1638).

  5. Multi-stage precision filtration process remove large quantity of particles & impurities from the oil.

  6. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

  7. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.

  8. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

  9. Can work online with stream turbine and hydraulic turbine.

technical specification
Item
Unit
FTY-EX-10
FTY-EX -20
FTY-EX -30
FTY-EX -50
FTY-EX-100
FTY-EX -150
FTY-EX -200
FTY-EX -300
Flow rate
L/hr
600
1200
1800
3000
6000
9000
12000
18000
Working Vacuum   Degree
MPa
-0.06 ～ -0.095
Working Pressure
MPa
≤ 0.3
Temperature Range
℃
20 ～ 80
Power Supply
380 VAC, 3 Phase,   50 Hz (or as per requirement)
Heating power
kW
12
15
24
30
45
60
72
84
Total power
kW
14
17
26
33
48
66
81
97
Inlet/outlet   caliber
mm
Ф25
Ф25
Ф25
Ф32
Ф42
Ф42
Ф50
Ф65
Weight
kg
400
450
500
600
700
900
1200
1550
Dimension
Length
mm
1280
1350
1350
1400
1500
1500
1750
1950
Width
mm
750
900
950
950
1000
1200
1450
1630
Height
mm
1450
1450
1500
1600
1650
1800
1950
2090
    Note:   1. The dimension and weight will be changed with changing of technical specs.
                 2. All the specs can be customized according to client's requirements.

    For more info, pls don't hesitate to contact us.
