Series PL Plate Frame Pressurized Type Oil Purifier

Series PL Plate Frame Pressurized Type Oil Purifier thumbnail-1
Series PL Plate Frame Pressurized Type Oil Purifier thumbnail-2
Series PL Plate Frame Pressurized Type Oil Purifier photo-1

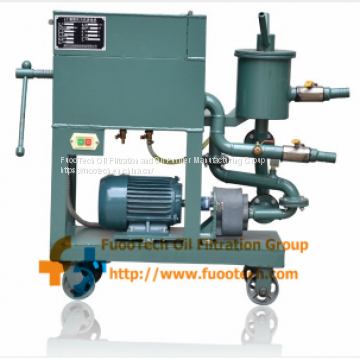

Series PL Plate Frame Pressurized Type Oil Purifier photo-2
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Certification:
CE, ISO, WSF
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
FuooTech Oil Filtration And Oil Purifier Manufacturing Group
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, Guangzhou, any other ports in China
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Certification CE, ISO, WSF
After-sales Service Provided Engineers available to service machinery overseas
Series PL Plate Frame Pressurized Type Oil Purifier is specially designed for power station, electricity factory, power electrical substation of industrial and mining enterprise, lube oil depot, tractor station, petroleum, chemical engineering, metallurgy, national defense industry, etc, filtering water content and impurities of transformer oil, turbine oil, engine oil, EP gear oil, machine oil, diesel oil, hydraulic oil and as well as filtering edible oil while using stainless steel plates. It’s a great choice as pre-treatment equipment prior to high vacuum oil purifier machines.

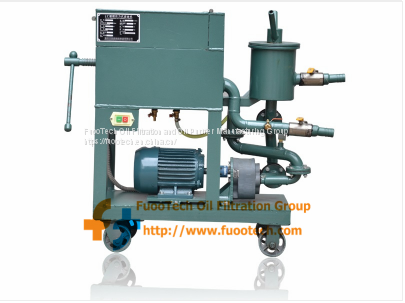

Portable oil filter machine is made up of filtering bed, boosting type oil pump and rough filter. There are filtering media, such as filtering paper or filtering fuse, installed between the steel filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering fuse packed between the filter board and filter plate will play a very important role of filtering.

The features of Series PL Plate Frame Pressurized Type Oil Purifier

  1. Plate pressure type filtering method, filter paper or filter cloth as filter media, simple operation.

  2. No heating, the additives in the oil are well prevented from degradation or deterioration.

  3. Simple structure, small volume, light weight, easy to carry and operate

  4. Low operation cost, Low maintenance time and cost

  5. Special boosting type oil pump has strong suction ability and make the machine to be used in more oil types.

  6. Low noise, Quick and convenient to replace filter paper.

  7. Can effectively purify the tiny and fine mechanical impurity from oil

Technical Specifications of Series PL Plate Frame Pressurized Type Oil Purifier
Model
PL-30
PL-50
PL-100
PL-125
PL-150
PL-200
PL-300
Flow Rate
L/H
1800
3000
6000
7500
9000
12000
18000
Working Pressure
MPa
0 - 0.5
Filtering Area
≥m2
0.3
0.39
1.3
1.54
1.89
2.01
3.1
Board Frame Size
mm
180×180
280×280
Press Manner
Screw Manually
Filter Frame Number
11
13
10
12
14
18
23
Filter Plate   Number
12
14
11
13
15
19
24
Gear Oil Pump
Flow
L/min
>30
>50
>100
>125
>150
>200
>300
Safe
Pressure
MPa
0.6
Power supply
380V, 3Phase, 50hz   (or as per user’s option)
            Viscosity  (mm2/S)
≤46
Motor
Power
kW
1.1
3
4
5.5
Rotation Speed
r/min
1400
1420
1440
Filtering   precision
≤1 ~ 5 µm
Noise  dB(A)
≤ 55
Filter paper size
mm
185*190
285*290
Diameter
Inlet
mm
32
32
44
44
50
50
65
outlet
mm
32
32
44
44
50
50
65
Dimension
Length
mm
700
750
1120
1200
1320
Width
mm
300
500
Height
mm
720
920
1000
Weight
KGS
76
115
180
250
270
300
330
Note:
1. The dimension and weight will be changed with changing of technical specs.
2. All the specs can be customized according to client's requirements.
For more info, pls don't hesitate to Contact Us.
