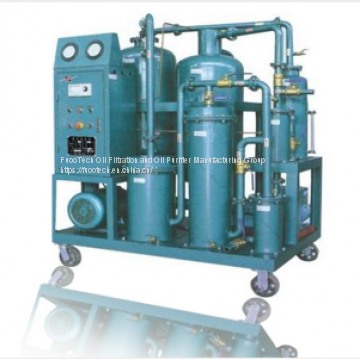

Series ZYB Multi-Function Transformer Oil Purifier Machine

Name: Series ZYB Multi-Function Transformer Oil Purifier Machine
Price: USD $1 - 2 / Unit

FOB Price

USD $1 - $2 / Unit

1 Unit(Min.Order)

Supply Ability 1000 Unit / Units per Month
Port Shanghai, Guangzhou, any other ports in China
Payment Terms:T/T L/C Other
Delivery Detail:15 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	China	Certification:	CE, ISO, WSF	After-sales Service Provided:	Engineers available to service machinery overseas
Usage:	Lubricant Oil

Product Description

 Series ZYB Multi-function Transformer Oil Purifier is special for purifying and regenerating the old or unqualified or seriously deteriorated insulating oils when power transformers below 220 kV.

  The Series ZYB Oil Purifiersystem not only provides regular oil purification such as degassing, dehydration and particles removal but also can remove polar material, acidity, sludge, hydrocarbons, other soluble oil decay products and discoloration.

  This is accomplished by the use of high vacuum degasification technology, special oil regeneration system application and particulate filters combined with our special brand of earth.  After treating, the oil can be reused as new so as to protect the electrical equipments working safely and normally.

  Meanwhile, this machine can be as a dryer and oiling machine for drying the electrical apparatus, and filling the insulating oil into the transformer under the vacuum situation. So it is very suitable for electrical apparatus manufacture factory, power station, power supply department, transformer in railroad station and other departments.

  Oil Result after Filtration

Moisture (Water Content)	≤ 5 PPM
Gas Content	≤0.1% (Vol)
Impurities Degree (Filtration precision)	≤ 3 micron (no free carbon)
Breakdown Voltage (Dielectric)	≥65 ~ 70 KV
Flash Point	≥135℃
Acid Value	≤0.04 mg KOH/g
PH value	≥5.5
Cleanliness	≤NAS 1638 Grade 6

The features of oil purifier

 Duplex 3D stereo-evaporation, eliminating the liquid water quickly

 UK Gtechnology by which the trace water that is show chain, such as dissolved water, can be removed effectively.

 High precision and multi-stage filtration process, remove various size of particles and impurities.

 Besides the common vacuum oil purifier's function of dewatering, degassing and eliminating impurities, this machine can regenerate the seriously deteriorated oil by removing the polarity materials, such as the deep oxides, free carbon from the oil effectively. It can make the seriously deteriorated oil reach to the normal index, like anti-oxides, acid- alkali, water-solubility

 Advanced infrared liquid-level automatic control system to accomplish fully automatic control.

 This machine can be operated with all the systems in it, also can be operated with partial systems in it optionally, it’s very popular because of its high speed filtering, high efficient filtering, high quality, safe operation, etc…

 The performance and lifetime of insulating oil will be improved and extended awfully after purification and regeneration.

 This machine can be as a dryer and oiling machine for drying the electrical apparatus, and injecting the insulation oil into the transformer under the vacuum situation. All functions in the machine can run at the same time. Also they can be used separately.

  Operation is security and reliable.

 Low maintenance time and cost

Parameters	Unit	ZYB-10	ZYB-20	ZYB-30	ZYB-50	ZYB-100	ZYB-150	ZYB-200
Flow Rate	L/hr	600	1200	1800	3000	6000	9000	12000
Vacuum degree	Mpa	–0.08 ～ –0.098
Working pressure	Mpa	≤0.4			≤0.5
Temperature degree	℃	20 ~ 80
Power Supply		380V, 50 Hz, 3 Phase (or as per requirement)
Working noise	dB(A)	≤50 ~ 80
Electric heating power	KW	12	15	18	30	60	90	120
Total Power	KW	14	18	21	35	67	102	135
Inlet (outlet) caliber	mm	Ø25	Ø25	Ø25	Ø32	Ø42	Ø50	Ø50
Dimension (L × W × H)	mm	1400 × 900 × 1500	1500 × 900 × 1550	1600 × 950 × 1650	1650 × 950 × 1700	1650 × 1000 × 1800	1700×1050× 1850	1800×1100× 1900
Weight	Kg	380	400	450	600	800	850	900

Note:    1. The dimension and weight will be changed with changing of technical specs.

             2. All the specs can be customized according to client's requirements.

    For more info, pls don't hesitate to contact us.
